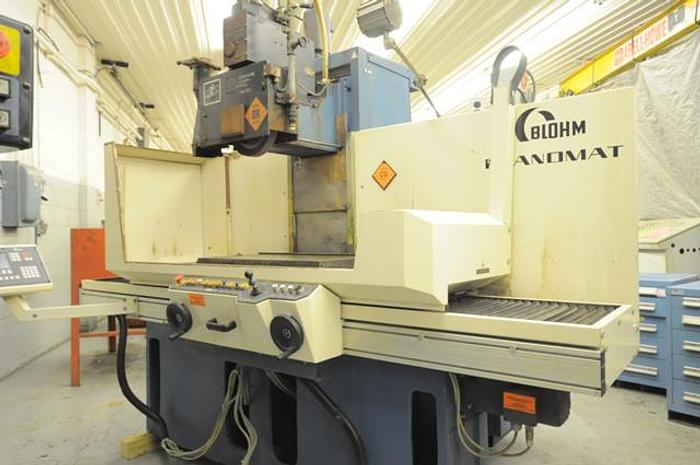

1995 BLOHM 408 PLANOMAT CNC CREEP FEED GRINDER

Contact us for price

Harbor Springs, MI

orCall 1-231-526-9525

Description

Table length with additional surfaces 1200mm
Table length withour additional surfaces 800mm
Table width 400mm
Table height above floor 950mm
Table load 800kg
X-Stroke 900mm
Y-Stroke 550mm
Z-Stroke 360mm
Distance from table to centerline of spindle 150mm to 700mm
X-Speed 30-30,000 mm/min
Y-Speed 4 -3,750 mm/min
Z-Speed 4-4,000 mm/min
GRINDING SPINDLE DRIVE
Grinding spindle speed 1,450 rpm
Spindle Motor 7.5 KW
Grinding wheel diameter max. 400mm
Grinding wheel diameter min. 190mm
Grinding wheel widths 30-80mm
Standard wheel width 50mm
Hole diameter 127mm
Space required, width and depth 4,250mm x 3,400mm
Floor space, width and depth 1,870mm x 1,470mm
Machine height ready for operation 2,450mm

Specifications

ManufacturerBLOHM
Model408 PLANOMAT CNC CREEP FEED GRINDER
Year1995
ConditionUsed
Stock Number102661
