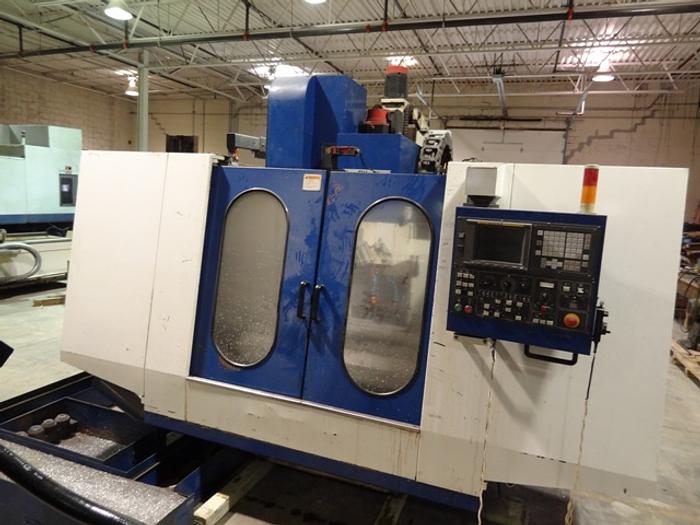

JOHNSFORD SV-45 VERTICAL MACHINING CENTER
No longer available
JOHNSFORD SV-45 VERTICAL MACHINING CENTER
Harbor Springs, MI
Description
Table Size 48"x20"
Table Load Capacity 3,300 LBS
X Travel 43.3"
Y Travel 20.9"
Z Travel 25.2"
Spindle nose to table top 5.9" to 31.1"
Spindle to Column 21.7"
Spindle Speed 60 to 8,000 RPM
Spindle taper 40
Spindle Motor 10/15 hp hi-low geared head or 15/20 with p motor
Tools Magazine 30 tools
Tools Selection Bidirectional Random
Max. Tool Diameter 4"
Adjacent Pocket Max. tool diameter 3"
Max. Tool Length 12.5"
Max. Tool Weight 22 LBS
Table load Capacity 3,300 LBS
Rapid Travers X/Y/Z 1181/1181/787 IPM
Cutting Feed Rate X/Y/Z 315 IPM
Ball Screw Diamter 1.574" on all axis
Floor Space 130" Long x 130" Wide
Weight 13,860 LBS
CONTROL FANUC 18M-C CNC
Coolant Pump and Chip pan
Specifications
Manufacturer | JOHNSFORD |
Model | SV-45 VERTICAL MACHINING CENTER |
Year | 1998 |
Condition | Used |
Serial Number | VU8045 |
Stock Number | 103093 |
