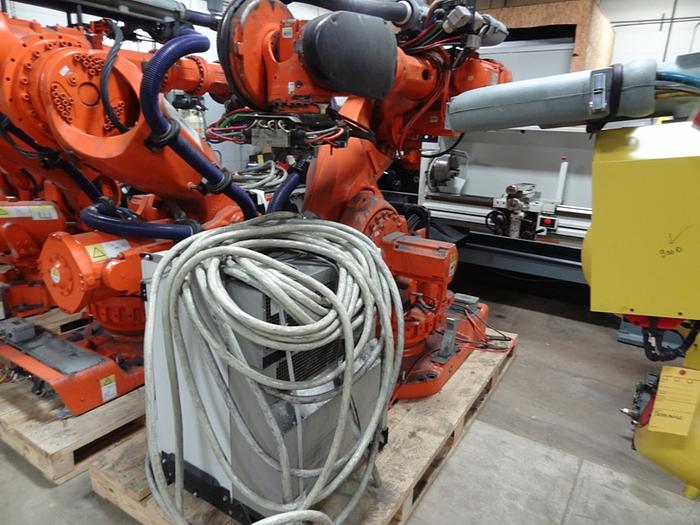

ABB IRB 7600 6 AXIS CNC ROBOT 340KG X 2.8 REACH IRC5 CONTROL

Harbor Springs, MI

Description

Robot Motion Speed J1 75 °/s (1.31 rad/s) J2 60 °/s (1.05 rad/s) J3 60 °/s (1.05 rad/s) J4 100 °/s (1.75 rad/s) J5 100 °/s (1.75 rad/s) J6 160 °/s (2.79 rad/s) Robot Motion Range J1 ±180° J2 +85° - 60° J3 +60° - 180° J4 ±300° J5 ±100° J6 ±360° The ABB IRB 7600-340 is just one of the many robots in the power robot 7600 family that can handle heavy and wide parts with a payload capacity up to 340 kg. It is the perfect robot for heavy applications, regardless of industry, as has a high available torque and inertia capability, rigid design, and powerful acceleration. The IRB 7600-340 is floor mounted and can be used to lift heavy pallets, handle heavy fixtures and parts, turn car bodies, lift engines, used in foundries or forges, and/or to load and unload machine cells. ABB has put safety first by adding a range of software products under the umbrella of Active and Passive Safety. Its active safety includes Collision Detection, an Electronically Stabilized Path, an Active

Specifications

ManufacturerABB
ModelIRB 7600 6 AXIS CNC ROBOT 340KG X 2.8 REACH IRC5 CONTROL
Year2012
ConditionUsed
Stock Number103664
Axes6
H-reach2800.00mm
Payload340.00kg
MountingFloor
StructureArticulated
Robot mass0.00kg
Repeatability±0.0000mm
