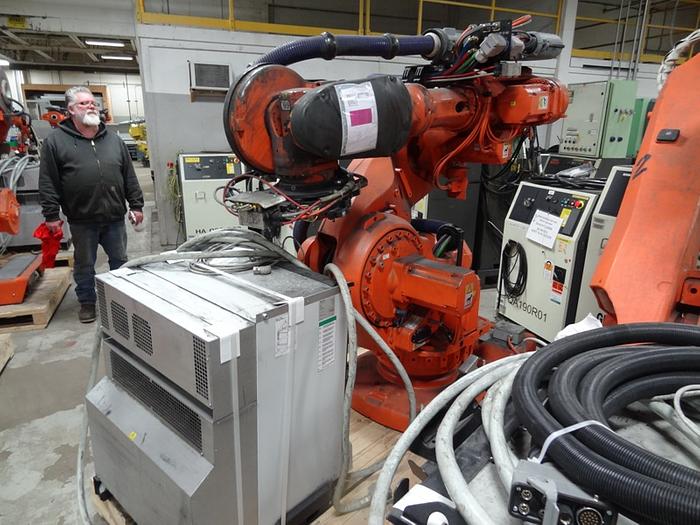

ABB IRB 7600 6 AXIS CNC ROBOT 340KG X 2.8 REACH IRC5 CONTROL
No longer available
ABB IRB 7600 6 AXIS CNC ROBOT 340KG X 2.8 REACH IRC5 CONTROL
Harbor Springs, MI
Description
Robot Motion Speed
J1 75 °/s (1.31 rad/s)
J2 60 °/s (1.05 rad/s)
J3 60 °/s (1.05 rad/s)
J4 100 °/s (1.75 rad/s)
J5 100 °/s (1.75 rad/s)
J6 160 °/s (2.79 rad/s)
Robot Motion Range
J1 ±180°
J2 +85° - 60°
J3 +60° - 180°
J4 ±300°
J5 ±100°
J6 ±360°
The ABB IRB 7600-340 is just one of the many robots in the power robot
7600 family that can handle heavy and wide parts with a payload
capacity up to 340 kg. It is the perfect robot for heavy applications,
regardless of industry, as has a high available torque and inertia
capability, rigid design, and powerful acceleration.
The IRB 7600-340 is floor mounted and can be used to lift heavy
pallets, handle heavy fixtures and parts, turn car bodies, lift
engines, used in foundries or forges, and/or to load and unload
machine cells.
ABB has put safety first by adding a range of software products under
the umbrella of Active and Passive Safety. Its active safety includes
Collision Detection, an Electronically Stabilized Path, an Active
Specifications
Manufacturer | ABB |
Model | IRB 7600 6 AXIS CNC ROBOT 340KG X 2.8 REACH |
Year | 2012 |
Condition | Used |
Stock Number | 103663 |
Axes | 6 |
H-reach | 2800.00mm |
Payload | 340.00kg |
Mounting | Floor |
Structure | Articulated |
Robot mass | 0.00kg |
Repeatability | ±0.0000mm |
