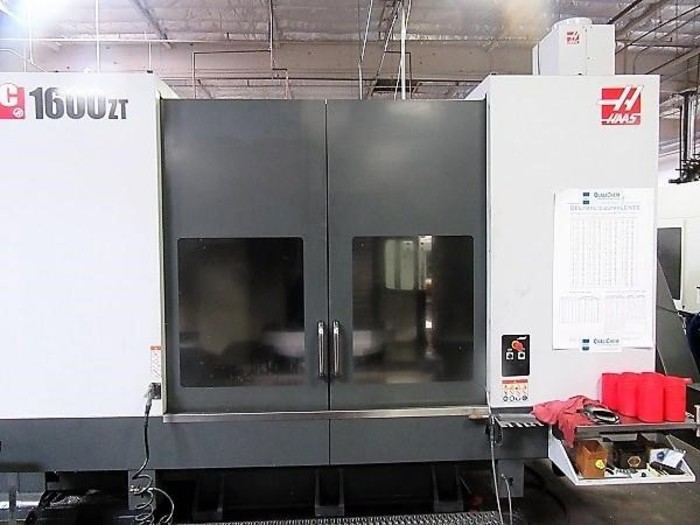

2017 HAAS EC 1600ZT HMC #50 TAPER WITH 30" DIA. BUILT IN ROTARY PLATTER
No longer available
2017 HAAS EC 1600ZT HMC #50 TAPER WITH 30" DIA. BUILT IN ROTARY PLATTER
$154,900 (USD)
Harbor Springs, MI
Description
X-Axis Travels - 64"
Y-Axis Travels - 50"
Z-Axis Travels - 40"
Table Length - 64"
Table Width - 36"
Built in Rotary Platter Dia. - 30"
Max. Weight on Table - 10,000 lbs
Spindle Power - 30 HP
Spindle Speed - 7,500 RPM
Max. Torque - 450 ft.-lb. @ 500 RPM
Drive System - 2-Speed Geared Head
Taper - CT50
Rapids on (X,Y,Z) 540 in/min.
Max. Cutting 500 in/min.
Tool Changer SMTC
Capacity 30 + 1
Air Required 9 scfm, 100 psi
Coolant Capacity 95 gal.
Power 195-260 VAC/100 A
Machine Weight 30,000 lbs.
* 30" Dia. Built in 4th Axis Rotary Platter ($39,865 option)
* 2 Speed Gearbox
* #50 Taper
* Media Display M-Code, M 130 (Manage images,videos,PDF Files from Memory)
* Haasconnect Remote Monitoring
* Rigid Tap
* Ethernet Interface
* WiFi Connection
* Remote Jog with Color LCD
* Work Lights
* Coolant System
Specifications
Manufacturer | HAAS |
Model | EC 1600ZT HMC #50 TAPER WITH 30" DIA. BUILT IN ROTARY PLATTER |
Year | 2017 |
Condition | Used |
Stock Number | 103773 |
