2017 SAMSUNG SL2000 BSY 8" CHUCK, LIVE MILLING, Y-AXIS, SUB, 1000 PSI

Contact us for price

Independence, KS

orCall 1-231-526-9525

Description

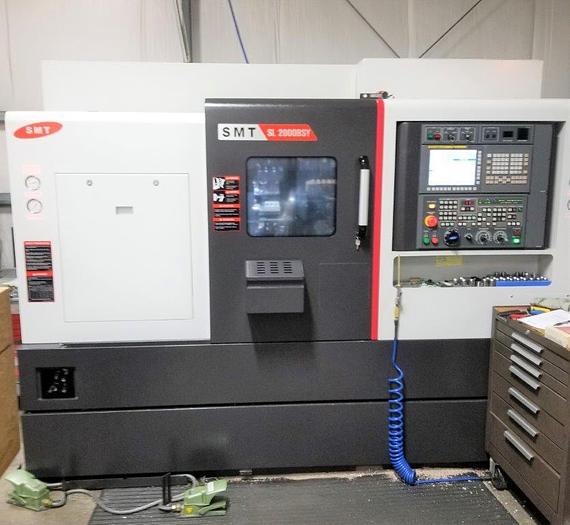

SAMSUNG SL2000 BSY
YEAR 2017
STOCK# 103791

SPECIFICATIONS:

SWING OVER BED............... 25.6"
SWING OVER CROSS SLIDE....... 21.3"
MAX TURNING DIAMETER......... 15.55"
MAX TURNING LENGTH........... 17.72"
BAR CAPACITY................. 2.68"
MAIN SPINDLE NOSE............ A2-6
MAIN SPINDLE SPEED........... 4,500 RPM
MAIN SPINDLE MOTOR........... 25 HP
SUB SPINDLE SPEED............ 6,000 RPM
SUB SPINDLE MOTOR............ 12 HP
X-AXIS TRAVEL................ 9.25"
Z-AXIS TRAVEL................ 22.83"
Y-AXIS TRAVEL................ 4.12"
C-AXIS MINIMUM DEGREE........ 0.001
RAPID TRAVERSE RATE (X,Z,Y).. 945/1181/394 IPM
TURRET POSITIONS............. 12-STATION

EQUIPPED WITH:

Y-AXIS
SUB SPINDLE
LIVE TOOLING, FULL C-AXIS
8" SAMCHULLY CHUCK MAIN SPINDLE
6" SAMCHULLY CHUCK SUB SPINDLE
FANUC Oi-MATE TF CNC CONTROL
12-POSITION HIGH SPEED TURRET
ONE PIECE 30 DEGREE RIGID SLANT BED
HIGH PRESSURE COOLANT PUMP
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
BARFEED INTERFACE
RIGID TAPPING
BOX WAY
(1) RADIAL LIVE TOOL HOLDERS
(1) AXIAL LIVE TOOL HOLDERS

** ORIGINAL OWNER
** SINGLE SHIFT AEROSPACE MACHINE
** AS OF 04/2019, ON HOURS: 4,145
** REPLACEMENT COST NEW IS $150,000

** ADDITIONAL TOOLING AVAILABLE AT ADDITIONAL COST
** COLLETS AND COLLET NOSE AS PICTURED NOT INCLUDED
** MACHINE CUT PRIMARILY ALUMINUM & SOME TITANIUM, SS & PLASTIC

** MACHINE IS AVAILABLE UPON ARRIVAL OF NEW MACHINE
** IN PLANT, UNDER POWER, AND AVAILABLE FOR IMMEDIATE INSPECTION

WWW.HARBORMACHINERY.COM
231-526-9525

Specifications

ManufacturerSAMSUNG
ModelSL2000 BSY 8" CHUCK, LIVE MILLING, Y-AXIS, SUB, 1000 PSI
Year2017
ConditionUsed
Stock Number103791
