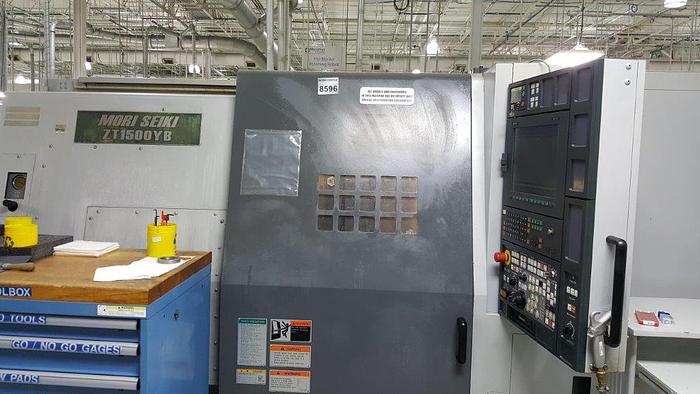

2005 MORI SEIKI ZT 1500YB

Harbor Springs, MI

Description

MORI SEIKI ZT 1500YB
YEAR 2005
STOCK #103794

SPECIFICATIONS:
==============================
SUBJECT TO VERIFICATION:
____________________________________________________
X - AXIS TRAVEL (INCHES) 5.51"
Y - AXIS TRAVEL (INCHES) 1.97"
Z - AXIS TRAVEL (INCHES) 27.56" / 27.17"
SPINDLE SPEED 5,000 RPM
SPINDLE MOTOR (HP) 30 HP
BAR STOCK CAPACITY 2"
MAX SWING (INCHES) 9.8"
DISTANCE BETWEEN SPINDLE NOSES 39.37"
MAX TURNING DIAMETER 7.48"
MAX LENGTH 9.25"
MAIN SPINDLE BORE 24"
SPINDLE NOSE A2-5, 2.87
SUB SPINDLE BORE 3.2"
SUB SPINDLE BAR CAP 2.5"
SUB SPINDLE NOSE A2-5
ROTARY TOOL SPEED (TURRET ONE/TWO) 6,000 RPM
ROTARY TOOL MOTOR (5 MIN.) 7.5 HP
ROTARY TOOL MOTOR (15 MIN.) 5 HP
ROTARY TOOL MOTOR (CONT.) 3 HP
NUMBER OF POSITIONS (TURRET ONE/TWO) 12 Tools
B-AXIS TRAVEL (SUB-SPINDLE) 30.51"
C-INDEXING 360,000°
RAPID TRAVERSE (X / Z / Y) 708 / 944 / 236 IPM
SUB SPINDLE RAPID TRAVERSE / C-AXIS 944 / 410 IPM

OPTIONS / EQUIPPED WITH
SUB-SPINDLE
CHIP CONVEYOR
MSX-501 CONTROL
WWW.HARBORMACHINERY.COM
231-526-9525

Specifications

ManufacturerMORI SEIKI
ModelZT 1500YB
Year2005
ConditionUsed
Stock Number103794
