2017 MAZAK DUAL TURN 200, DUAL SPINDLE, DUAL TURRET CNC LATHE, MAZATROL SMOO...
No longer available
2017 MAZAK DUAL TURN 200, DUAL SPINDLE, DUAL TURRET CNC LATHE, MAZATROL SMOO...
Almont, MI
Description

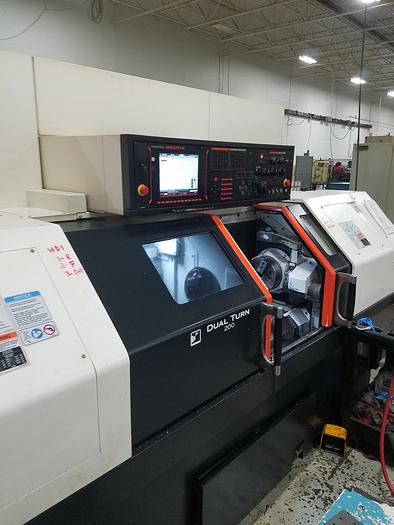

2017 MAZAK DUAL TURN 200, DUAL SPINDLE, DUAL TURRET CNC LATHE
YEAR 2017
STOCK#103799
BASIC SPECIFICATIONS:
================================
SUBJECT TO VERIFICATION:
_______________________________________________________
Maximum Swing 320 mm
Maximum Machining Diameter 320 mm
Maximum Machining Length 150 mm
Main Spindle Chuck Size 8 in
Maximum Speed 5000 rpm
Motor Output (40 ED Rating) 15 kw
Second Spindle Chuck Size 8 in
Maximum Speed 5000 rpm
Motor Output (40 ED Rating) 15 kw
Turret (Upper) Number of Tools 24
Feed Axes Travel (X Axis) 230 mm
Travel (X2 Axis) 230 mm
Travel (Z Axis) 500 mm
Travel (Z2 Axis) 500 mm
The DUAL TURN 200 is a twin-spindle, twin-turret turning center designed for high productivity. With a mirror image design of headstocks and turrets plus automatic workpiece transfer from one spindle to the other, the machine enables continuous and simultaneous machining for completion of first and second operations in a single machine.
Ideal for shops with limited floor space, the integration of two 2-axis turret lathes into a single machine tool is comparable to having two turning centers, but it requires approximately 30 percent less floor space.
www.harbormachinery.com
231-526-9525
Specifications
Manufacturer | MAZAK |
Model | DUAL TURN 200, DUAL SPINDLE, DUAL TURRET CNC LATHE, MAZATROL SMOOTH "C" CONTROL |
Year | 2017 |
Condition | Used |
Stock Number | 103799 |
