2018 2- AVAILABLE WINBRO MODEL HSD6-III HIGH SPEED 6 AXIS EDM DRILLING SYSTEMS

Contact us for price

Independence, KS

orCall 1-231-526-9525

Description

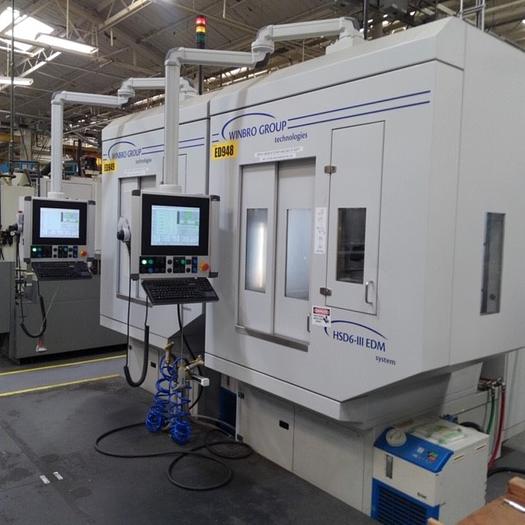

WINBRO MODEL HSD6-lll HIGH SPEED 6-AXIS EDM DRILLING SYSTEM
NEW: 2018
STOCK #103811

SPECIFICATIONS:
=======================================
CONTROL: ADVANCED CNC (ACNC32) WINDOWS OPERATING SYSTEM.
• TFT TOUCH SCREEN
• MACHINE MODE SELECTION ( MANUAL,AUTO,MDI etc)
• FULL LOCAL PART PROGRAM EDITING VIA TOUCH SCREEN
• HAND HELD PENDANT WITH JOG
• 3D FAN GENERATION SOFTWARE FOR SHAPED COOLING HOLES
• SIX (6) POINT PROBING
• ORBITING 9CIRCULAR OR ORBITING MOVEMENT OF X-Y TABLE.

MAIN APPLICATION: COOLING HOPES AND SLOTS ON AERO AND IGT TURBINE BLADES, VANES, SEGMENTS AND OTHER COMPONENTS OF SIMILAR SIZE
- ROUND HOLES / SHAPED HOLES (OVAL)
- SEAL SLOTS
- 2D & 3D DIFFUSERS
TRAVELS:
X-AXIS: 7.8"
Y-AXIS: 7.8"
Z-AXIS: 9.8"

MAX. WORKPIECE SIZE: 8.85" x 8.85" x 8.85"
MAX. WORKPIECE WEIGHT: 22 LBS

SINGLE POINT DRILL DIA. : .006" - .118"
MULTI POINT DRILL DIA. : .010" - .040"

• INTEGRAL 6 STATION TOOL CHANGER
• NUMBER OF AXES: 6
• Heidenhain absolute (ENDAT) linear and rotary encoders
• PART PROBING
• SINGLE POINT DRILLING (INCLUDING AEC- AUTOMATIC ELECTRODE CHANGING)
• MULTI ELECTRODE DRILLING
• CLOSED LOOP SCALES: .0004" RES
• SIGNATURE ANALYSIS / BREAKTHROUGH DETECTION
• HIGH PRESSURE WATER 1000 PSI
• FLUID DI WATER
• EROWA 100mm CHUCK
• MACHINE SPARE PARTS PACKAGE ($40,030.00 each machine.)
• TOOLING PACKAGE ($607,942 for both machines)
SOFTWARE OPTIONS:
• EDM milling for diffusers utilizing imported “cutter path”
• Advanced signature analysis
• Advanced probing software (6 point system)
• GEONAV
• Tool management
• Electrode daturning (auto offset)
• Total productive maintenance (TPM) software
• Electrode orbiting
• TC Pro
• Delcam


MACHINE SIZE: 152" x 63"
APPROX. WEIGHT: 8,800 LBS

UP TO 5 TIMES FASTER THAN A CONVENTONAL EDM

WWW.HARBORMACHINERY.COM
231-526-9525

Specifications

Manufacturer2- AVAILABLE WINBRO
ModelMODEL HSD6-III HIGH SPEED 6 AXIS EDM DRILLING SYSTEMS
Year2018
ConditionUsed
Stock Number103811
