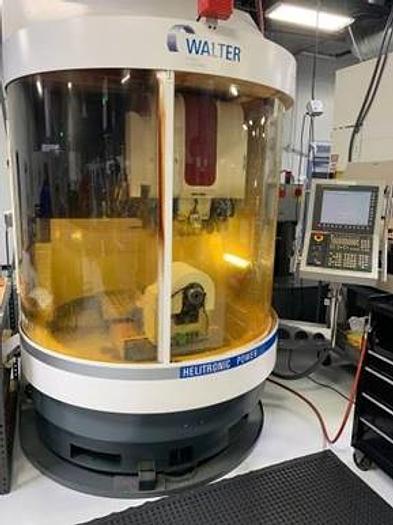

2010 WALTER HELITRONIC POWER 400 CNC TOOL AND CUTTER GRINDER

Midwest City, OK

Description

WALTER, HELITRONIC POWER, GE FANUC SERIES 310i MODEL A5 CNTRL NEW: 2010 STOCK# 103812 Specifications: ======================================================= SUBJECT TO VERIFICATION: ____________________________________________________________ MAXIMUM DIAMETER: 12.6" (320 MM) MAXIMUM GRIND LENGTH FROM THE WORKHEAD ISO 50 TAPER GAGE POINT: 11.8" (300 MM) LINEAR AXES RAPID TRAVERSE RATE: UP TO 600 IPM ROTARY C-AXIS RAPID TRAVERSE RATE: 120 DEGREES/ SECOND WORKHEAD A-AXIS: RPM HP GRINDING SPINDLE DOUBLE-END GRINDING SPINDLE, 3.15" (80 MM) DIAMETER, UP TO 6 GRINDING WHEELS CAN BE MOUNTED FOR OPTIMUM FLEXIBILITY 16 HP, UP TO 9,500 RPM, VARIABLE SPEED SPINDLE DRIVE PROBING CAPABILITIES: HELI PROBE MEASURING & POSITIONING SYSTEM. AUTOMATICALLY MEASURES THE END OF TOOL, NUMBER OF FLUTES, HELIX ANGLE OR LEAD & O.D. EXACT CAPABILITIES VARY ACCORDING TO THE SPECIFIC PROGRAM AND APPLICATION COOLANT SYSTEM: HIGH PRESSURE, 100 PSI, 30 GPM, 130-GAL. PAPER MEDIA COOLANT FILTRATION SYSTEM WORK TABLE SYSTEM: C-AXIS WORK TABLE, T-SLOTTED FOR MOUNTING WORK SUPPORTING FIXTURES AUTOMATIC ECO LOADER: *INTEGRATED LOADING SYSTEM FOR HELITRONIC POWER WITH A STORAGE CAPACITY OF 20 TOOLS MAGAZINE ECO WITH 20 TOOL HOLDERS, BORE DIAMETER 1-1/4" - #135536 GRIPPER UNIT MOUNTED ON THE GRIPPING HEAD ONE RANGE GRIPPER WITH GRIPPER JAWS FOR 1/8" – 1" DIAMETER MAXIMUM TOOL LENGTH: 210 MM (8-1/4") MAXIMUM TOOL WEIGHT: 2.5 KG (~ 5.5 LBS.) MINIMUM CLAMPING LENGTH FOR TOOLS: UNDER 10 MM DIAMETER APPROX . -2 x *LOADER MUST BE ORDERED WITH POWER MACHINE (CANNOT BE RETROFITTED) HIGH RPM WORK HEAD: HIGH RPM WORKHEAD UP TO 750 RPM FOR CYLINDRICAL GRINDING APPLICATIONS INTEGRAL MOTOR WITH TECHNOLOGY RESULTS IN THE SAME INDEXING PRECISION AS THE STANDARD WORKHEAD. INCLUDES CYLINDRICAL GRINDING SOFTWARE OPTIONAL ACCESSORIES: 24,000 BTU CHILLER WITH 5 MICRON FILTER CAPABILITY REQUIRES A SEPARATE 460V ELECTRICAL SUPPLY. FOR 208, 230 OR 575 VOLTAGES THE ELECTRICAL SUPPLY MUST BE WIRED TO A SEPARATE TRANSFORMER WORKHOLDING: MANUAL STEADYREST WITH 3/4" BUSHING Equipped With: END MILLS: FOR CYLINDRICAL AND TAPERED SHANK TYPE TOOLS WITH INCLUDED CONICAL ANGLE OF UP TO 90 DEGREES AND THE FOLLOWING FORMS; SQUARE END, CORNER CHAMFER, CORNER RADIUS, BALL NOSE, DOUBLE RADIUS, AND BEVELED CORNER, AS DETAILED BELOW BALL NOSE WITH UP TO 4 MGM CLEARANCES CORNER RADIUS WITH 2 MGM CLEARANCES BALL NOSE LEFT/LEFT AND RIGHT/RIGHT CORNER RADIUS LEFT/LEFT, RIGHT/RIGHT, LEFT/RIGHT, & RIGHT/LEFT WIZARDS FROM 1 TOOTH UP TO 16 TEETH (12 TEETH FOR BALL NOSE) SINGLE PASS OR MULTI PASS FLUTING RADIUS WASHOUT AT FLUTE END COLLISION DETECTION AND MOVE OPTIMIZATION REGRINDING CONSTANT HELIX, CONSTANT LEAD, DIGITIZING CHANGING HELIX. EQUALLY AND UNEQUALLY INDEXED FLUTES BALL NOSE END MILLS WITH S-GASH WIZARD FOR CUTTING EDGE COMBINATIONS;2/2, 3/3, 4/2 (END TEETH / LONG TEETH) GRINDING WITH OUTSIDE DIAMETER OR SIDE OF THE GRINDING WHEEL START ANGLE FOR GENERATING DEFINABLE CHISEL POINT RAKE ANGLE UP TO 30° NEGATIVE, DEFINABLE AT UP TO 10 POINTS THROUGH THE RADIUS SECTION DRILLS: 2 & 3 FLUTE DRILLS WITH CAM RELIEF, FACET AND FORM E STYLE POINTS AND THE FOLLOWING GASHING OPTIONS; CONVENTIONAL, SPLIT POINT, DOUBLE SPLIT, & RADIUS AND CORE STYLE GASHES. COOLANT HOLE PROBING MAIN CUTTING EDGE CORRECTION FLUTE WASH OUT FEATURE REAMERS: REAMERS WITH SHORT LEAD-IN CHAMFER, LONG LEAD-IN CHAMFER, OR DOUBLE LEAD-IN CHAMFER STRAIGHT, LEFT/RIGHT, RIGHT/LEFT, RIGHT/RIGHT & LEFT/LEFT GE FANUC SERIES 310i MODEL A5 SOFTWARE PACKAGE #1, CYLINDRICAL ENDMILLS SOFTWARE PACKAGE #2, TAPERED HELICAL ENDMILLS SOFTWARE PACKAGE#3, DRILLS & STEP DRILLS (HIGH-TECH & CONVENTIONAL POINTS) SMOG HOG MIST EXTRACTOR, 1000 CFM, 95% EFFICIENCY RATING ON THE REMOVAL OF AIRBORNE OIL MIST PARTICLES AUTOMATIC TOOL CLAMPING SYSTEM WITH QUICK CONNECTION AUTOMATIC FIRE EXTINGUISHER, CO2, RECOMMENDED DUE TO INHERENT RISK OF FIRE IF OIL COOLANT IS USED. EBBCO COOLANT CHILLER AND DOME FILTER TOOL STUDIO TOOL STUDIO ADVANCED WWW.HARBORMACHINERY.COM

Specifications

ManufacturerWALTER
ModelHELITRONIC POWER 400 CNC TOOL AND CUTTER GRINDER
Year2010
ConditionUsed
Stock Number103812
