FANUC ARCMATE 100IB MIG WELDING CELL WITH RJ3iB CONTROLLER

Contact us for price

Almont, MI

orCall 1-231-526-9525

Description

1-USED SUPER CLEAN FANUC ARCMATE 100IB MIG WELDING CELL WITH RJ3IB CONTROLLER
ROBOT SERIAL NUMBER F54236
DATE OF MFG. 06/2002
STK#103830
===============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
HOURS SHOWN ON METER 2,265.8
THIS UNIT IS VERY CLEAN WITH LOW USE.

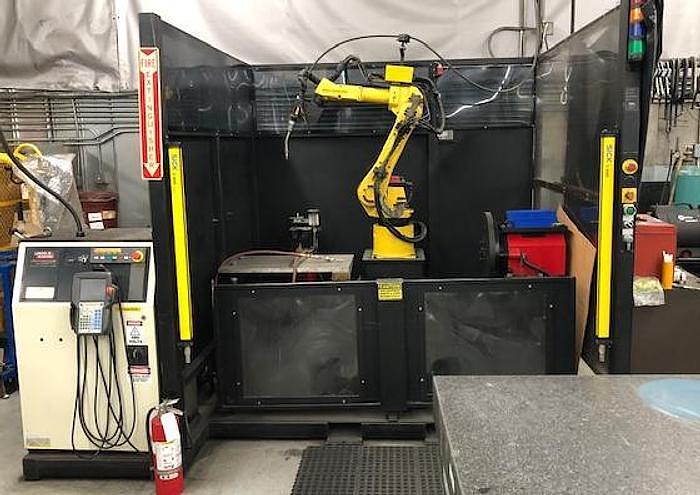

UNIT IS SELF CONTAINED MOUNTED ON A COMMOND BASE
WITH ALL RELATED COMPONENTS THAT MAKE UP THE CELL
THE CONTROLLER CABINET IS MOUNTED OUTSIDE THE WELD CELL.
SEE PICTURES.
Robot Specifications:
Axes: 6
Payload: 6.00kg
H-Reach: 1373.00mm
Repeatability: ±0.0800mm
Robot Mass: 135.00kg
Structure: Articulated
Mounting: Floor, Inverted, Wall, Angle
Robot Motion Speed
J1 150 °/s (2.62 rad/s)
J2 160 °/s (2.79 rad/s)
J3 170 °/s (2.97 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 520 °/s (9.08 rad/s)
Robot Motion Range
J1 ±170°
J2 +160° - 90°
J3 +145° - 170°
J4 ±190°
J5 ±140°
J6 ±360°
EQUIPPED WITH:
FANUC ARCMATE 100IB WELDING ROBOT ARM
FANUC ARMATE RJ3IB ROBOT CONTROLLER
CABLES
TEACH PENDANT
LINCOLN ELECTRIC TRUNNION
LINCOLN ELECTRIC TORCH TIP CLEANER
LINCOLN ELECTRIC WIRE FEEDER
LINCOLN ELECTRIC POWERWAVE 455M WELDING POWER SUPPLY

WWW.HABROMACHINERY.COM
231-526-9525

Specifications

ManufacturerFANUC
ModelARCMATE 100IB MIG WELDING CELL WITH RJ3iB CONTROLLER
ConditionUsed
Serial NumberF54236
Stock Number103830
Hours2265
Axes6
