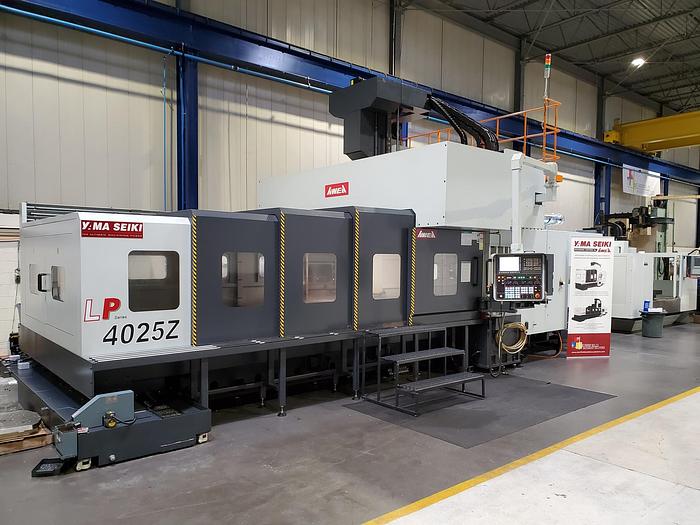

2016 AWEA LP 4025Z BRIDGE TYPE VERTICAL MACHINING CENTER

Contact us for price

Coffeyville, KS

orCall 1-231-526-9525

Description

AWEA LP 4025Z BRIDGE TYPE VERTICAL MACHINING CENTER
YEAR 2016
STOCK# 103834

SPECIFICATIONS:
============================================
SUBJECT TO VERIFICATION:
________________________________________________
X AXIS TRAVELS 4000MM
Y-AXIS TRAVELS 2,500 MM
Z-AXIS TRAELS 760 MM
TABLE LOAD CAPACITY 15000KG
SPINDLE MOTOR ( cont. / 30 min. ) 22 / 26 kW ( 30 / 35 HP )
Fanuc 31i Control
4,000 RPM Geared Spindle
CAT 50 Big Plus
60 Position ATC
Semi-Automatic Head Changer
90 degree programmable head (5 degree indexing)
1000 PSI Through Spindle Coolant Prep
Includes:
- Stainless steel cart of setup tooling including T nuts, clamps, blocks, etc.
- Stainless steel cart of tooling including removable cutter heads, shrink fit shanks, inserts, end mills, drills, etc.
- 55 gallon drum of hydraulic oil(we over ordered at time of installation)
- 4 custom risers measuring 42” by 18” by 24” tall with 84 predrilled holes each for use with setup materials
- Large adjustable height work bench
- 52 CAT-50 tool holders, many of them never used, ranging from collet holders, to changeable head roughing holders, to Haimer shrink fit holders, etc.
- External air blast mounted to the ATC side of the column for added chip removal(MMS added option using shop air supply for maximum power)
- Chipblaster through spindle coolant system
- Powertran transformer
- OPTIONAL like new Marposs laser and probe system, integration already complete, turnkey system
- OPTIONAL Keller Mist Collector with custom plumbing
- OPTIONAL Trulign leveling system
MACHINE NEW COST BEFORE OPTIONS 675K

Specifications

ManufacturerAWEA
ModelLP 4025Z BRIDGE TYPE VERTICAL MACHINING CENTER
Year2016
ConditionUsed
Stock Number103834
