2013 WALTER HELITRONIC POWER, GE FANUC SERIES 310i MODEL A5 CNTRL

Contact us for price

Tulsa, OK

orCall 1-231-526-9525

Description

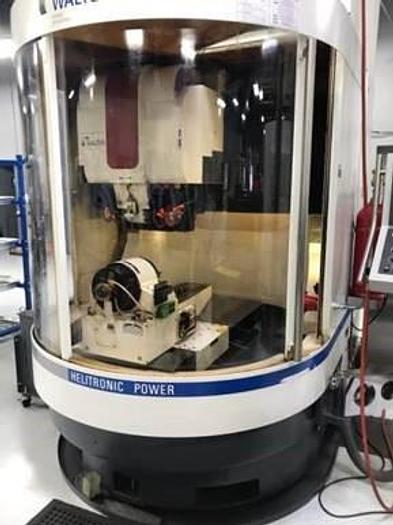

WALTER HELITRONIC POWER, GE FANUC SERIES 310i MODEL A5 CNTRL
YEAR 2013
STOCK # 103837

Specifications:


MAXIMUM DIAMETER: 12.6" (320 MM)
MAXIMUM GRIND LENGTH FROM THE WORKHEAD
ISO 50 TAPER GAGE POINT: 11.8" (300 MM)
LINEAR AXES RAPID TRAVERSE RATE: UP TO 600 IPM
ROTARY C-AXIS RAPID TRAVERSE RATE: 120 DEGREES/ SECOND
WORKHEAD A-AXIS: RPM
HP GRINDING SPINDLE
C-AXIS WORK TABLE, 3.15" (80 MM) DIAMETER,
UP TO 6 GRINDING WHEELS CAN BE MOUNTED FOR OPTIMUM FLEXIBILITY
16 HP, UP TO 9,500 RPM, VARIABLE SPEED SPINDLE DRIVE
PROBING CAPABILITIES:
HELI PROBE MEASURING & POSITIONING SYSTEM. AUTOMATICALLY MEASURES THE END OF TOOL, NUMBER OF FLUTES, HELIX ANGLE OR LEAD & O.D. EXACT CAPABILITIES VARY ACCORDING TO THE SPECIFIC PROGRAM AND APPLICATION
COOLANT SYSTEM:
HIGH PRESSURE, 100 PSI, 30 GPM, 130-GAL. PAPER MEDIA COOLANT FILTRATION SYSTEM
WORK TABLE SYSTEM:
C-AXIS WORK TABLE, T-SLOTTED FOR MOUNTING WORK SUPPORTING FIXTURES
AUTOMATIC ECO LOADER:
*INTEGRATED LOADING SYSTEM FOR HELITRONIC POWER WITH A STORAGE CAPACITY OF 20 TOOLS
MAGAZINE ECO WITH 20 TOOL HOLDERS, BORE DIAMETER 1-1/4" - #135536
GRIPPER UNIT MOUNTED ON THE GRIPPING HEAD
ONE RANGE GRIPPER WITH GRIPPER JAWS FOR 1/8" - 1" DIAMETER
MAXIMUM TOOL LENGTH: 210 MM (8-1/4")
MAXIMUM TOOL WEIGHT: 2.5 KG (~ 5.5 LBS.)
MINIMUM CLAMPING LENGTH FOR TOOLS:
UNDER 10 MM DIAMETER APPROX . -2 x
*LOADER MUST BE ORDERED WITH POWER MACHINE (CANNOT BE RETROFITTED)
HIGH RPM WORK HEAD:
HIGH RPM WORKHEAD
UP TO 750 RPM FOR CYLINDRICAL GRINDING APPLICATIONS
INTEGRAL MOTOR WITH TECHNOLOGY RESULTS IN THE SAME INDEXING PRECISION
AS THE STANDARD WORKHEAD. INCLUDES CYLINDRICAL GRINDING SOFTWARE
OPTIONAL ACCESSORIES:
24,000 BTU CHILLER WITH 5 MICRON FILTER CAPABILITY
REQUIRES A SEPARATE 460V ELECTRICAL SUPPLY.
FOR 208, 230 OR 575 VOLTAGES THE ELECTRICAL SUPPLY MUST BE WIRED TO A SEPARATE TRANSFORMER
WORKHOLDING:
MANUAL STEADYREST WITH 3/4" BUSHING


Equipped With:


END MILLS:
FOR CYLINDRICAL AND TAPERED SHANK TYPE TOOLS WITH INCLUDED CONICAL ANGLE OF UP TO 90 DEGREES
AND THE FOLLOWING FORMS; SQUARE END, CORNER CHAMFER, CORNER RADIUS, BALL NOSE, DOUBLE RADIUS, AND BEVELED CORNER, AS DETAILED BELOW
BALL NOSE WITH UP TO 4 MGM CLEARANCES
CORNER RADIUS WITH 2 MGM CLEARANCES
BALL NOSE LEFT/LEFT AND RIGHT/RIGHT
CORNER RADIUS LEFT/LEFT, RIGHT/RIGHT, LEFT/RIGHT, & RIGHT/LEFT
WIZARDS FROM 1 TOOTH UP TO 16 TEETH (12 TEETH FOR BALL NOSE)
SINGLE PASS OR MULTI PASS FLUTING
RADIUS WASHOUT AT FLUTE END
COLLISION DETECTION AND MOVE OPTIMIZATION
REGRINDING CONSTANT HELIX, CONSTANT LEAD, DIGITIZING CHANGING HELIX.
EQUALLY AND UNEQUALLY INDEXED FLUTES
BALL NOSE END MILLS WITH S-GASH
WIZARD FOR CUTTING EDGE COMBINATIONS;2/2, 3/3, 4/2 (END TEETH / LONG TEETH)
GRINDING WITH OUTSIDE DIAMETER OR SIDE OF THE GRINDING WHEEL
START ANGLE FOR GENERATING DEFINABLE CHISEL POINT
RAKE ANGLE UP TO 30 DEGREES NEGATIVE, DEFINABLE AT UP TO 10 POINTS THROUGH THE RADIUS SECTION
DRILLS:
2 & 3 FLUTE DRILLS WITH CAM RELIEF, FACET AND FORM E STYLE POINTS AND THE FOLLOWING GASHING OPTIONS; CONVENTIONAL, SPLIT POINT, DOUBLE SPLIT, & RADIUS AND CORE STYLE GASHES.
COOLANT HOLE PROBING
MAIN CUTTING EDGE CORRECTION
FLUTE WASH OUT FEATURE
REAMERS:
REAMERS WITH SHORT LEAD-IN CHAMFER, LONG LEAD-IN CHAMFER, OR DOUBLE LEAD-IN CHAMFER
STRAIGHT, LEFT/RIGHT, RIGHT/LEFT, RIGHT/RIGHT & LEFT/LEFT
GE FANUC SERIES 310i MODEL A5
SOFTWARE PACKAGE #1, CYLINDRICAL ENDMILLS
SOFTWARE PACKAGE #2, TAPERED HELICAL ENDMILLS
SOFTWARE PACKAGE#3, DRILLS & STEP DRILLS (HIGH-TECH & CONVENTIONAL POINTS)
SMOG HOG MIST EXTRACTOR, 1000 CFM, 95% EFFICIENCY RATING ON THE REMOVAL OF AIRBORNE OIL MIST PARTICLES
AUTOMATIC TOOL CLAMPING SYSTEM WITH QUICK CONNECTION
AUTOMATIC FIRE EXTINGUISHER, CO2, RECOMMENDED DUE TO INHERENT RISK OF FIRE IF OIL COOLANT IS USED.
EBBCO COOLANT CHILLER AND DOME FILTER
TOOL STUDIO
TOOL STUDIO ADVANCED

WWW.HABRORMACHINERY.COM
231-526-9525

Specifications

ManufacturerWALTER
ModelHELITRONIC POWER, GE FANUC SERIES 310i MODEL A5 CNTRL
Year2013
ConditionUsed
Stock Number103837
