2007 FANUC M710iC/70T GANTRY ROBOTIC SYSTEM, R30iA, 8' TALL RAIL X 11'6" OF TRAVEL

Contact us for price

Almont, MI

orCall 1-231-526-9525

Description

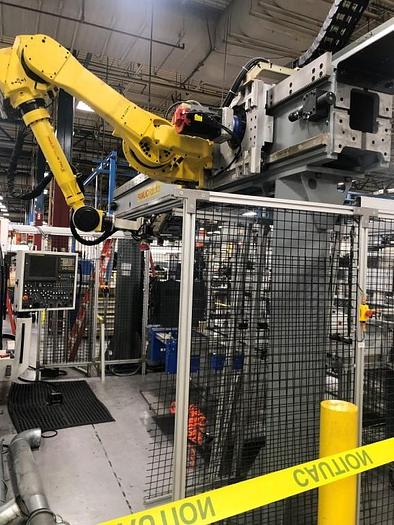

FANUC ROBOTIC GANTRY SYSTEM WITH FANUC M710iC/70T ROBOT R30iA CONTROLLER
8' TALL X 11'6" OF TRAVEL ON RAIL, ROBOTS ARE SIDE MOUNTED ON RAIL.
PERFECT FOR MACHINE TENDING LOAD/UNLOAD
ROBOT SERIAL NUMBER F86530
RAIL SERIAL NUMBER TP-004377
DATE OF MFG. 08/2007
STK#103847
================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

HOURS SHOWN ON METER 2,434.4

ROBOT SPECIFICATIONS:
AXES 6
PAYLOAD WRIST 70KG
PAYLOAD J3 ARM 15KG
REACH 1900MM
REPEATABILITY 0.07MM
INTERFERENCE 351MM
STRUCTURE ARTICULATED
ROBOT AND CARRIER MASS 580KG

ROBOT MOTION SPEED:
J1 TRAVEL ON RAIL 2.5 OR 3.0 METERS/SECOND
J2 120 DEGREES/SECOND
J3 120 DEGREES/SECOND
J4 225 DEGREES/SECOND
J5 225 DEGREES/SECOND
J6 225 DEGREES/SECOND

ROBOT MOTION RANGE:
J1 TRAVEL ON RAIL 3550 MM
J2 261 DEGREES
J3 491 DEGREES
J4 720 DEGREES
J5 250 DEGREES
J6 720 DEGREES

EQUIPPPED WITH:
R30iA CONTROLLER
TEACH PENDANT
CABLES
CABLE TRACK
8' UPRIGHTS
3550MM TRAVEL SIDE MOUNT RAIL
OVERALL LENGTH OF RAIL 20'2"
GRIPPER UNITS TWO STYLES
UNIT IS IN GREAT SHAPE AND READY TO RUN

Specifications

ManufacturerFANUC
ModelM710iC/70T GANTRY ROBOTIC SYSTEM, R30iA, 8' TALL RAIL X 11'6" OF TRAVEL
Year2007
ConditionUsed
Stock Number103847
Hours2400
