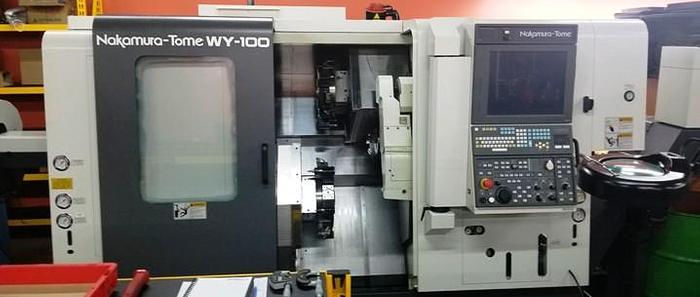

2014 NAKAMURA TOME WY-100 CNC TRUNING CENT. WITH Y AXIS, DUAL SPINDLE, DUAL TURRETS
No longer available
2014 NAKAMURA TOME WY-100 CNC TRUNING CENT. WITH Y AXIS, DUAL SPINDLE, DUAL TURRETS
Almont, MI
Description
NAKAMURA TOME WY-100 CNC TRUNING CENT. WITH Y AXIS, DUAL SPINDLE, DUAL TURRETS
YEAR 2014
STOCK# 103908
Featured Specifications
=============================================
Opposed two-spindle,2-turret construction!
48 tools Number of tool stations
24 tools Number of driven-tool stations
62mm Y-axis on 2-turret
6000min-1 Driven-tool speed (Upper / Lower)
11/7.5kW + 11/7.5kW L/R spindle motor
7.1/2.2kWx3 Driven-tool motor (Upper / Lower)
Main Specifications
Number 8 # Axis's
Main Bar Capacity 2 "
Power 20.1 hp
Max RPM 5000 rpm
Turning Dia 6.89 "
Swing 6.89 "
Machining Length 23.15 "
Sub-Spindle
Max Bar Capacity Left 2”
Max Bar Capacity Right 1.69”
Max Turning Diameter 6.89”
Max Turning Length 23.15”
Distance Between Spindles 32.28”
Chucks In 16C/ 16C
Spindle Nose Left & Right A2-5
Spindle Speed Left / Right 5,000 RPM/ 6,000RPM
Spindle Motor Left & Right 15/10 HP
Rotary Tool Motor 9.5/3 HP
Rotary Tool Speed 5,000 RPM
Tool Stations 12 Main/12 Back
X-Axis Travel (X1/X2) 5.31”
Z-Axis Travel (Z1/Z2/Z3) 9.6” / 9.6”/22.75”
Y-Axis Travel (Y1 & Y2) 2.44”
Equipped With:
Nakamura Tome Control (Fanuc 31iA)
Dual Turrets
Dual Spindle
Live Tooling
Y axis on Upper and Lower Turret
LNS Quick Six S2 Magazine Barfeeder
16C Collet Chucks
Lots of Tooling Available
All Guide Tubes and Spindle Liners
Specifications
Manufacturer | NAKAMURA TOME |
Model | WY-100 CNC TRUNING CENT. WITH Y AXIS, DUAL SPINDLE, DUAL TURRETS |
Year | 2014 |
Condition | Used |
Stock Number | 103908 |
