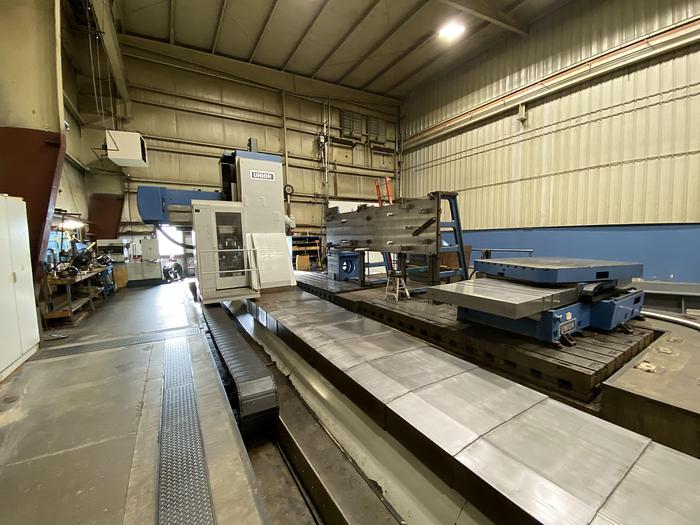

2006 UNION MODEL FC-1 CNC TRAVELING COLUMN UNIVERSAL MACHIINING CENTER
No longer available
2006 UNION MODEL FC-1 CNC TRAVELING COLUMN UNIVERSAL MACHIINING CENTER
Description
UNION MODEL FC-1 CNC TRAVELING COLUMN UNIVERSAL MACHIINING CENTER
YEAR 2006
STOCK# 103930
Specifications:
==============================================
SUBJECT TO VERIFICATION:
__________________________________________________
Control............................................. Heidenhain iTNC530
X axis travel......................................10,000mm (394")
Y axis travel......................................2600mm (102")
Z axis travel......................................1600mm (63")
A axis travel......................................+/- 120 degrees
B axis travel......................................360 degrees
Rotary table size...............................79" x 98"
Rotary table load capacity..................44,000 lbs
Floor Plate size.................................19" x 315"
Table load capacity............................8000 lbs
Spindle.............................................Cat 50
Spindle Speed..................................5000 rpm
Spindle Torque / Power.....................600 ft-lbs/50 hp
Rapid traverse rates (X, Y & Z).........787 ipm
Automatic tool changer capacity.........24
Machine Features & Options - Heidenhain Scale Feedback / Roller Guide axes bearings / Operator cabin with controls / Coolant thru spindle (300 PSI) with filtration system / CNC Universal head with 2.5 degree resolution / Chip conveyor / Complete documentatio
Specifications
Manufacturer | UNION |
Model | MODEL FC-1 CNC TRAVELING COLUMN UNIVERSAL MACHIINING CENTER |
Year | 2006 |
Condition | Used |
Stock Number | 103930 |
