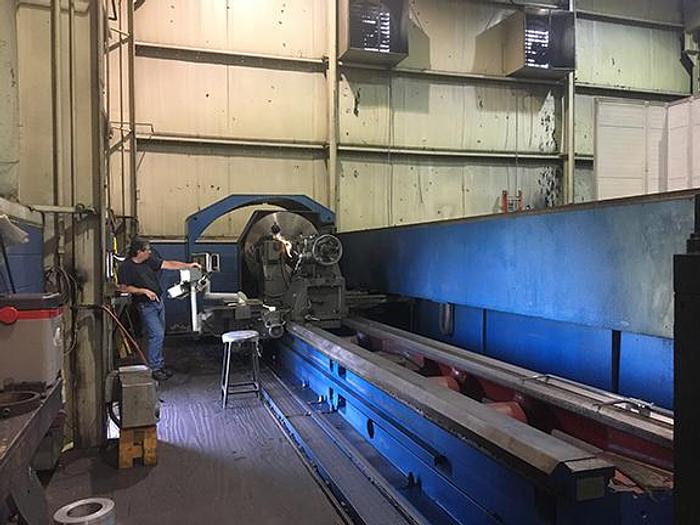

2006 RYAZAN MODEL RT317RF3-6 LARGE CAPACITY CNC LATHE
No longer available
2006 RYAZAN MODEL RT317RF3-6 LARGE CAPACITY CNC LATHE
Description
RYAZAN MODEL RT317RF3-6 LARGE CAPACITY CNC LATHE
YEAR 2006
STOCK# 103931
SPECIFICATIONS:
=================================================
SUBJECT TO VERIFICATION:
_____________________________________________________
Control ...................................................................Fanuc Oi-TC
Max. cut diameter over bed......................................55"
Max. cut diameter over carriage................................47"
Max. work piece length between centers...................236"
Bed width, cast iron with two guideways...................39.4"
Carriage travel, cross / length..................................29.5"/275"
Max. work piece weight, between centers.................35,200lbs
Spindle power.........................................................98 HP
Spindle bore............................................................5"
Headstock gear ranges............................................4
Spindle speed range................................................2-630 rpm
Tailstock travel........................................................power
Tailstock quill and extension.....................................M80, 7.9"
Turret.....................................................................Sauter 8 Position
Machine size...........................................................374" x 93" x 89"h
Machine weight........................................................56,000 lbs
Accessories included - Chuck, manual 49.2" diameter, 4 jaw / Roller rest for diameter range of 7" to 25.6" / Roller rest, heavy duty for diameter range of 35" to 51" / Boring bar attachment (without bar) / Coolant system / Controls: Fanuc Oi-TC for CNC and manual programming and operation
Specifications
Manufacturer | RYAZAN |
Model | MODEL RT317RF3-6 LARGE CAPACITY CNC LATHE |
Year | 2006 |
Condition | Used |
Stock Number | 103931 |
