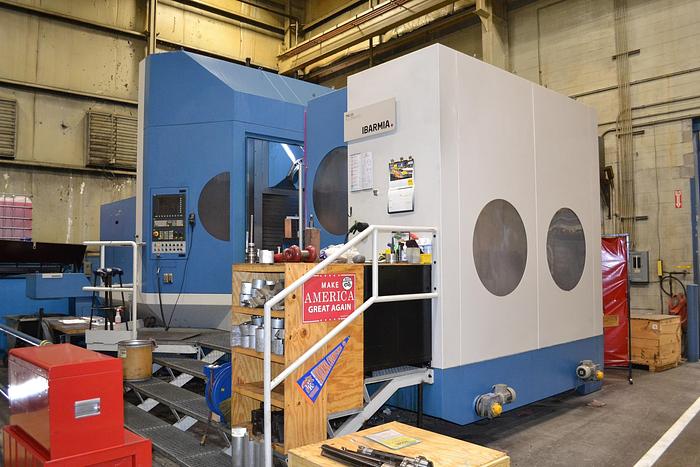

2013 IBARMIA MODEL THC 22 MULTIPROCESS CENTER

IBARMIA MODEL THC 22 MULTIPROCESS CENTER YEAR 2013 STOCK# 103932 SPECIFICATIONS: ============================================= SUBJECT TO VERIFICATIONS _________________________________________________ X axis travel…................................................... 2000 mm (78.74”) Y axis travel………………………………………. 1500 mm (59”) Z axis travel………………………………………. 1500 mm (59”) A axis travel (Head)… ……………………………. -15°/+195° C axis travel (Table)……………………………… 360° Rotary table size……………………………......... 1600 mm (62.99” dia.) Rotary table load capacity………………………… 8,000 kg (17,636 lbs.) Rotary Table Speed ……………………………….. 300 RPM Spindle Taper …………………………………........ HSK 100 Spindle speed……………………………………….. 7,000 RPM Spindle torque / power……………………. 240 Nm (177 ft-lbs) 38 kW (50.9 HP) Rapid traverse rates (X, Y & Z)………………….. 1181 IPM Automatic tool changer capacity………………… 60 tools Machine Features & Options- Heidenhain Scale Feedback Full machine guarding including roof Coolant thru spindle (580 PSI) with filtration system Through spindle air blow Complete documentation
