OTC WELD CELL WITH A/B TIL & ROTATE TABLES AND DUAL 72" CENTER TRUNIONS INSTALLED IN 2016
Contact us for price
OTC WELD CELL WITH A/B TIL & ROTATE TABLES AND DUAL 72" CENTER TRUNIONS
Robot is an OTC DR-4200L IRBC-631 model year 2000, installed new in 2016
Welder is a OTC Daihen Turbo Pulse 350DF Mig Welder Power Source
Water cooled American Weldquip torch
4 welding stations – 2 head/tail and 2 tilt/rotate tables on turntable. 500 lb. capacity in all stations.

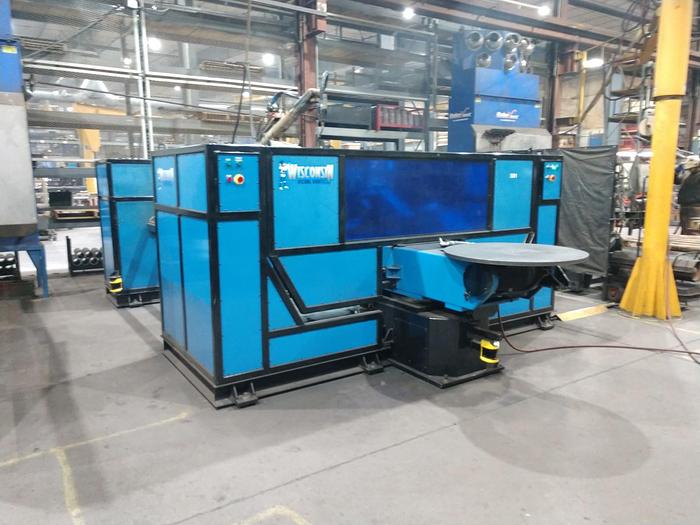

The turntable system has 2 weld stations each with a tilt/turn positioner with 500 lb. capacity each. Includes 36” diameter drilled and tapped stevens plates. Operator loads on one side while machine in cycle, then it cycles in. very efficient – no robot idle time.
Cell also has (2) 500 lb. capacity head/tail stocks. 72” span
Laser safety scanner cell guarding system – new 2016
The cell was built by Wisconsin Welding Robotics in 2016.
Total Arc on hours of the robot are only 2,500 – going up by the day, Servo on time = 9,800, auto run time = 3,800
|Model||WELD CELL WITH A/B TIL & ROTATE TABLES AND DUAL 72" CENTER TRUNIONS INSTALLED IN 2016|
