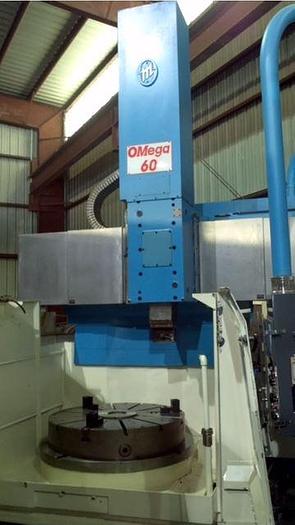

OMEGA 60, CNC VERTICAL TURNING LATHE

Contact us for price

Harbor Springs, MI

orCall 1-231-526-9525

Description

- O-M LTD OMEGA 60
- CNC VERTICAL TURNING LATHE
- TABLE DIAMETER 43 1/4"
- MAX SWING 59"
- MAX TURNING DIAMETER 53"
- MAX TURNING HEIGHT 31 1/2"
- MAX WORK PIECE WEIGHT 4,400 LBS
- MAX TORQUE OF TABLE 6,817 FT LBS
- MAX CUTTING FORCE 5,500 LBS
- TOOL HEAD TRAVEL 31 1/2"
- TOOL HEAD TRAVEL TO RIGHT OF TABLE 49"
- TOOL HEAD TRAVEL TO LEFT OF TABLE 2"
- TOOL HOLDER SHANK SIZE 1 1/4" X 1 1/4"
- FEED RATES .0001 TO 20 INCH/REV.
- RAPID TRAVERSE 472 INCH/MIN
- TABLE SPEEDS 2 RANGES
- TABLE SPEEDS INFINITELY VARIABLE LOW 4 - TO 149 RPM AND HIGH 16.4 TO
600 RPM
- MAIN MOTOR 60/75 HP.
- TOOL HEAD FEED MOTOR 4.5 HP
- OVERALL DIMENSIONS 164" WIDE X 180" DEPTH X 175" HEIGHT
- MACHINE WEIGHT 34,000 LBS
- CHUCK MANUAL 3-JAW
- INCLUDES 67K IN TOOLING

(10) TOOL HOLDERS
- LARGE TOOL CHANGER

OPTION

"16 Pos ATC"
- COOLANT TANK WITH PUMP
- CHIP CONVEYOR INCLUDED
BOOKS AND MANUALS

Specifications

ManufacturerOMEGA
Model60
Year1991
ConditionUsed
Stock Number103680
