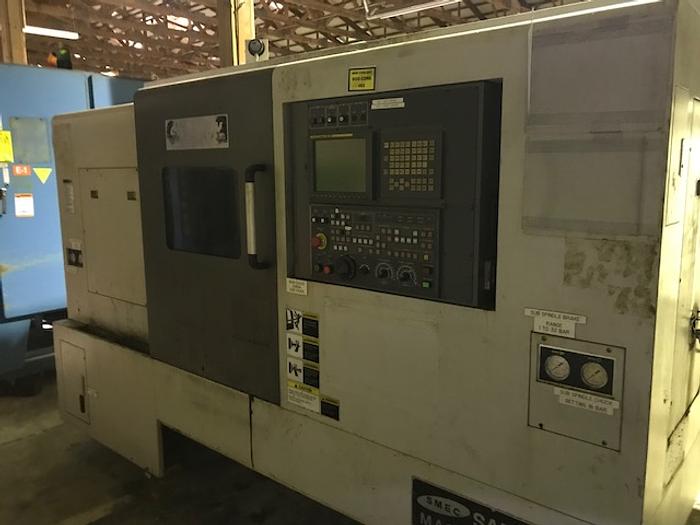

Swing Over Bed, 25.6"
Max. Turning Diameter, 14.2"
Max. Turning Length, 20.5"
Chuck Size Main/Sub, 8"/6”
Spindle Nose Main/Sub, A2-6/A2-5
Spindle Motor Main/Sub, 20HP/10HP
Spindle Speed Main/Sub, 4000rpm/6000rpm
Bar Capacity Main/Sub, 2.6"/1.42"
Machine Dimensions, 130" x 85" x 85" without Chip Conveyor in Place
Machine Weight, 13,000lbs
Fanuc 18i-TB CNC Control
Y-Axis
Sub-Spindle
Tool Presetter
Live Milling in the Turret
C-Axis in the Spindle
Chip Conveyor
