OERLIKON B22 CNC BLADE GRINDER

Contact us for price

Harbor Springs, MI

orCall 1-231-526-9525

Description

FLOOR SPACE 157"L X 98 1/2"W X 78.8"H APPROX.
TOTAL WEIGHT APPROX. 16,808 LBS
MODULE RANGE 1.5 TO 13 MM
BAR CUTTER CROSS SECTION MIN 7.5 X 9 MM

MAX 16 X 20 MM
MODULE 1.5 TO 4 MM WHEEL SIZE 400MM X 25MM X 127MM
MODULE 3.0 TO 7 MM WHEEL SIZE 400MM X 30MM X 127MM
MODULE 4.5 TO 8.5 MM WHEEL SIZE 400MM X 35MM X 127MM
MODULE 5 TO 13 MM WHEEL SIZE 400MM X 40MM X 127MM
GRINDING WHEEL SPEED 5 TO 35 METERS/SECOND
DIAMETER OF DIAMOND WHEEL 150MM
DIAMOND WHEEL TIP RADIUS 1.5 TO 4.5 MM/ R=0.5MM

4.5 TO 10 MM/R=1 MM
MAGAZINES FOR OERLIKON CUTTERS
20 MAGAZINES FOR 14 CUTTERS EACH SORTED INTO 3 CUTTER TYPES
MAGAZINES FOR GLEASON CUTTERS
20 MAGAZINES FOR 20 CUTTERS EACH SORTED INTO 2 CUTTER TYPES
CYCLE TIME FOR OERLIKON CUTTERS SIDE A,B,C APPROX. 2.4 MINUTES
CYCLE TIME FOR GEASON -TRI-AC CUTTERS APPROX. 2.5 MINUTES
MACHINE ACCURACY REPEATABILITY WHEN NEW
OERLIKON CROSS SECTION 7.5 X 9 MM +/- 0.006 MM FROM CUTTER TO CUTTER
+/- 0.005 MM CUTTER TO CUTTER
TRI-AC CROSS SECTION 0.4 X 0.5 +/- 0.

Specifications

ManufacturerOERLIKON

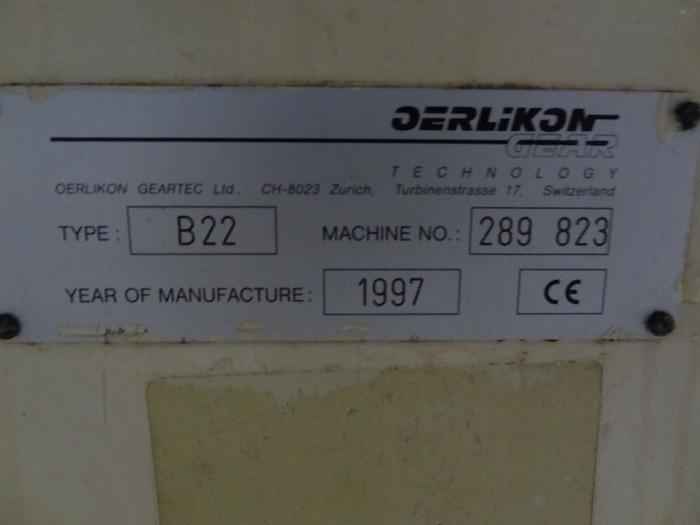

ModelB22 CNC BLADE GRINDER
Year1997
ConditionUsed
Stock Number103634
Grinding wheel dimensionsDIAMETER X WIDTH X BORE
