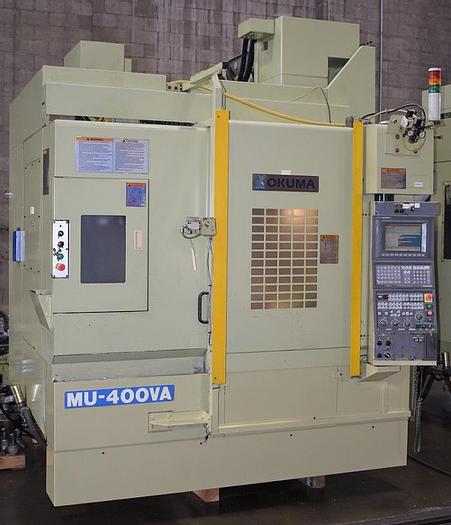

OKUMA MU-400VA FULL 5 AXIS CONTOURING VERTICAL MACHNING CENTER

OKUMA MU-400VA FULL 5 AXIS CONTOURING VERTICAL MACHNING CENTER

YEAR 2005

STOCK# 103993

CATALOG SPECIFICATIONS:

Table Working Surface (Round): ................. 15.75" Dia.

Max Table Load: .......................................... 660 Lbs.

X-Axis Travel: .............................................. 30"

Y-Axis Travel: .............................................. 18.11"

Z-Axis Travel: .............................................. 18.11"

A-Axis Trunnion Tilt Range: ........................ +20 to -110 Degrees

C-Axis Table Rotation Positioning: .............. 360,000 Degrees

Table Surface To Spindle Nose: .................. 3.94"-22.05"

Rapid Traverse X/Y/Z: ................................. 1574 IPM

Spindle Taper: ............................................. CAT-40

Spindle Speeds:........................................... 50-8,000 RPM

Spindle Motor: ............................................. 20 H.P.

Tool Magazine Capacity:.............................. 20

Electrics:....................................................... 220/3/60

Approximate Dimensions:............................. 114" x 160" x 116"H

Approximate Weight:..................................... 17,000 LBS

EQUIPPED WITH:

5-Axis Full Contouring With 15.75" Trunnion Mounted Rotary Table,

Okuma OSP-E100M-H CNC Control, Remote Handwheel, RS-232 Port,

(Optional) DNC-DT, 8000 RPM Spindle, Through Spindle 213 PSI Coolant,

Flood Coolant, 20 Station Tool Changer, Cat-40 Spindle Taper,

Automatic Pneumatic Doors with Safety Light Curtains, Spindle Chiller,

Auxillary Hydraulic Tank for the Work Table which is Plumbed for

Automatic Power Part Clamping, Chip Conveyor, Coolant System & Tank,

Manuals.

CONDITION: Machine Cutting Hours: 6,900
