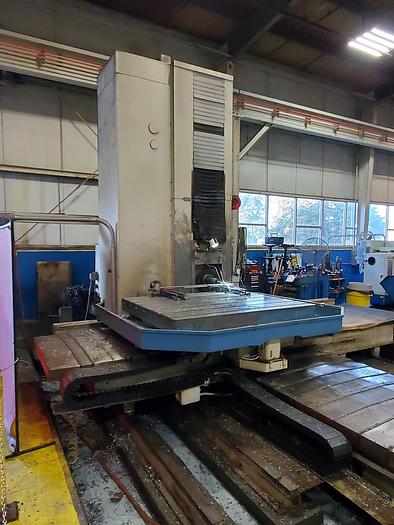

WMW BMT 130 CNC HORIZONTAL BORING MILL

WMW BMT 130 CNC HORIZONTAL BORING MILL

$56,500 (USD)

Ohio

orCall 1-231-526-7135 fax

Description

WMW BMT 130 CNC HORIZONTAL BORING MILL

YEAR 1998

STOCK# 104012


SPECIFICATIONS:

=================================================

SUBJECT TO VERIFICATION:

_________________________________________________

Specifications:


X-Axis Travel                                               3000 mm                               118.1”

Y-Axis Travel                                               2500 mm                               98.4”

Z-Axis Travel                                                1950 mm                               76.8”

W-Axis Travel                                              1000 mm                               39.4”

Spindle Diameter                                        130 mm                                 5.1”

Spindle Power                                            37 kW                                    50 HP

Spindle Torque                                            2208 NM                               1,628 ft·lb

Spindle RPM                                               5-2000 rpm

Spindle Taper                                              ISO 50

Rotary Table                                    1750mm x 2000mm                        68.9” x 78.7”

B-Axis Increments                                      0.001°

Maximum Table Load                                 10000 kg                              22,046 lbs

Maximum Rotation Speed Milling            0.025 – 1.6 rpm

Working Feed Rates X, Y, Z, & W           2-2500 mm/min                  0.08-98 ipm

Rapid Feed Rate X, Y, Z, & W                  6000 mm/min                       236 ipm

HEIDENHAIN TNC 426 CNC CONTROL


Specifications

ManufacturerWMW
ModelBMT 130 CNC HORIZONTAL BORING MILL
ConditionUsed
Stock Number104012
