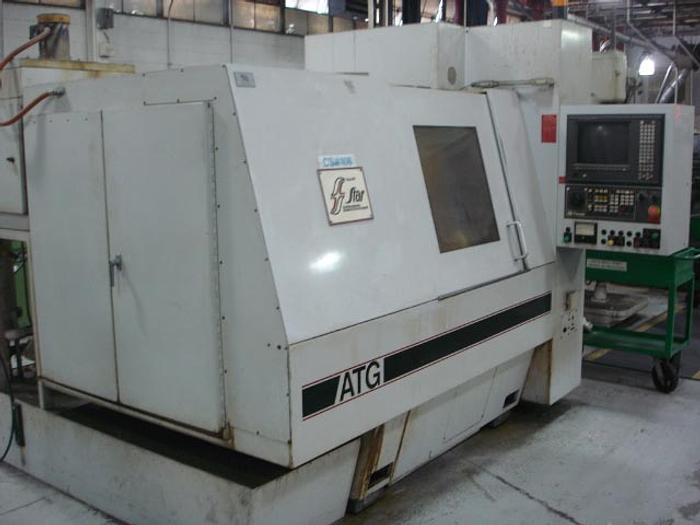

STAR ATG-6AC 6 AXIS CNC TOOL & CUTTER GRINDER
No longer available
STAR ATG-6AC 6 AXIS CNC TOOL & CUTTER GRINDER
Location:Harbor Springs, MI
Description
DIAMETER:
6" MAX. TYPE: DIAMOND OR CBN
MOTOR: 7.5 HP, 3600 RPM
SPEED: 1800 to 5275 RPM
A-AXIS: 0 to 360°
B-AXIS: 0 to 90°
LINEAR: .0001"
ROTARY: .001°
LINEAR AXIS: .000020" ROTARY AXIS: .0005°
COOLANT TANK: 112 GALLONS FLOW: 20 GPM MAX., 22 PSI MAX.
LOCATOR; MULTIPLE WHEEL GANG CAPABILITY; CYCLE INDICATOR LIGHT;
VARIABLE SPEED SPINDLE; MANUAL PULSE GENERATOR; 7.5 HP SPINDLE MOTOR;
MIST COLLECTOR; GRAPHICAL INTERFACE
DIMENSIONS: 110" L x 114" D x 103" H
WEIGHT: APPROX. 8,500 LBS.
Joe Blasius
231-526-9525
Specifications
| Manufacturer | STAR |
| Model | STG-6AC |
| Year | 1999 |
| Condition | Used |
| Stock Number | 102570 |
| W-axis | 3" |
| X-axis | 8.4" |
| Y-axis | 4.6" |
| Z-axis | 11.5" |
| Control | GE FANUC SERIES 160 CNC |
| Additional | GLASS SCALES ON LINEAR AXES; PART PROBE; RETRACTABLE END |
| Workpiece length | 27" -- BETWEEN CENTERS |
| Workpiece diameter | 0.12 to 4" |
| Collet and bushing size | UNLIMITED |
