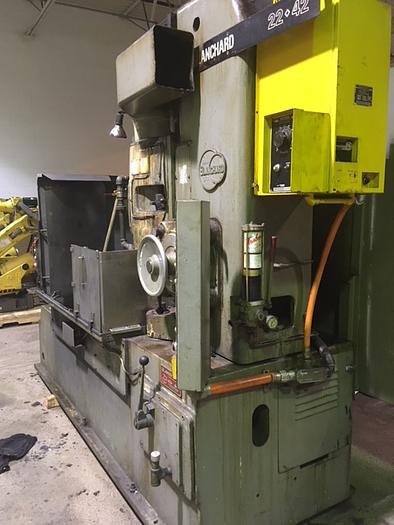

1980 BLANCHARD 2242 VERTICAL ROTARY SURFACE GRINDER

Contact us for price

Harbor Springs, MI

orCall 1-231-526-9525

Description

ELECTRO MAGNETIC CHUCK SIZE 42"
SEGMENTED GRINDING WHEEL DIAMETER 22"
MAX. HEIGHT OF WORK TO BE GROUND 18"
MAX. SWING INSIDE WATER GAURDS 50"
MAIN MOTOR HP 40, 230/460 VOLT, 3 PHASE, 60 CYCLE, 720 RPM
CHUCK SPEEDS 6,9,12,18,25,33 RPM
VERTICAL WHEEL HEAD FEEDS 4 TO 80 THOUSANDS/MIN
POWER RAPID TRAVERSE TO SPINDLE HEAD ASSEMBLY
HAND OPERATED WHEEL DRESSER
WET BASE MACHINE NO DRAG OUT CONVEYOR
COOLANT PUMP
JIC CONTROLS PANEL MOUNTED TO MACHINE
MAX. TABLE LOAD CAPACITY 3,000 LBS
CHUCK ROTATION MOTOR 3 HP
20 FT LB TORQUE MOTORS FOR TABLE TRAVERSE AND HEAD RAPID TRAVERSE
125 GALLON COOLANT TANK CAPACITY
COOLANT PUMP 1/2 HP MOTOR
BLANCHARD ONE PIECE STEEL MAGNETIC CHUCK WITH 5/8" POLE SPACING
CHUCK HAS 2" CENTER HOLE
CHUCK USES DC CURRENT ONLY 1200 WATTS REQUIRED AS SUPPLIED BY
NEUTROFIER

Specifications

ManufacturerBLANCHARD
Model2242 VERTICAL ROTARY SURFACE GRINDER
Year1980
ConditionUsed
Stock Number103693
