FANUC M16iB/10L 6 AXIS CNC ROBOT WITH RJ3iC CONTROLLER
No longer available
FANUC M16iB/10L 6 AXIS CNC ROBOT WITH RJ3iC CONTROLLER
Harbor Springs, MI
Description
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)
J1 ±170°
J2 +160° - 90°
J3 +285° - 170°
J4 ±200°
J5 ±140°
J6 ±450°
The M16iB/10L RJ3iB is compact in design with improved motion range
and speed and works well in narrow settings. It lengthens the
horizontal reach of the standard version to 1885 mm and has a payload
of 10 kg. The FANUC M 16iB/10L also allows high-density installation
of robots and peripherals.

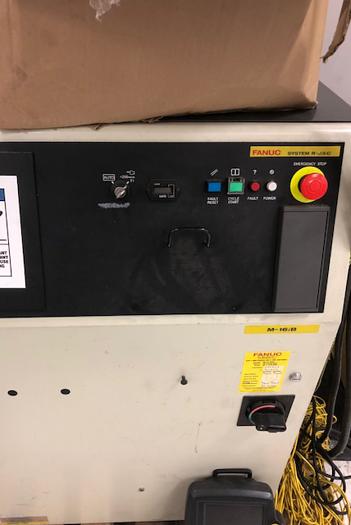

RJ3iC CONTROLLER (R30iA)
CABLES
TEACH PENDANT
Specifications
Manufacturer | FANUC |
Model | M16iB/10L 6 AXIS CNC ROBOT |
Condition | Used |
Stock Number | 103743 |
Axes | 6 |
Payload | 10.00kg |
H-reach | 1885.00mm |
Repeatability | ±0.1000mm |
Robot mass | 230.00kg |
Structure | Articulated |
Mounting | Floor, Inverted, Angle |
