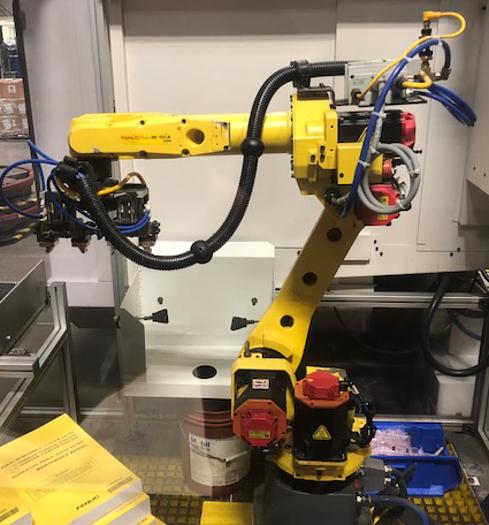

FANUC M10iA/10MS 6 AXIS CNC ROBOT WITH R30iB
No longer available
FANUC M10iA/10MS 6 AXIS CNC ROBOT WITH R30iB
Harbor Springs, MI
Description
J1 260 °/s (4.54 rad/s)
J2 280 °/s (4.89 rad/s)
J3 315 °/s (5.5 rad/s)
J4 420 °/s (7.33 rad/s)
J5 420 °/s (7.33 rad/s)
J6 720 °/s (12.57 rad/s)
J1 +340° - 360°
J2 ±250°
J3 ±441°
J4 ±380°
J5 ±280°
J6 ±720°
The M-10iA/10MS is a highly reliable robot with an RV reducer and gear
and harmonic drive trains to help enhance the rigidity and
performance. Furthermore, there is minimal maintenance with the sealed
bearings and brushless AC motors.
The M10iA/10MS can carry up to 10kg, giving it the best payload ratio
in its class, and it has a reach of 1101mm combined with a compact
wrist and small footprint, making it the perfect space-saver. Speaking
of space, the versatile mounting options for the FANUC M-10iA/10MS
give manufacturers versatility in their system layout. The advanced
FANUC M 10iA/10MS comes equipped with an R-30iB controller.
R30IB CONTROLLER
CABLES
COLOR TEACH PENDANT
Specifications
Manufacturer | FANUC |
Model | M10iA/10MS |
Condition | Used |
Serial Number | F165892 |
Stock Number | 103742 |
Axes | 6 |
Payload | 10.00kg |
H-reach | 1101.00mm |
Repeatability | ±0.0800mm |
Robot mass | 130.00kg |
Structure | Articulated |
Mounting | Floor |
