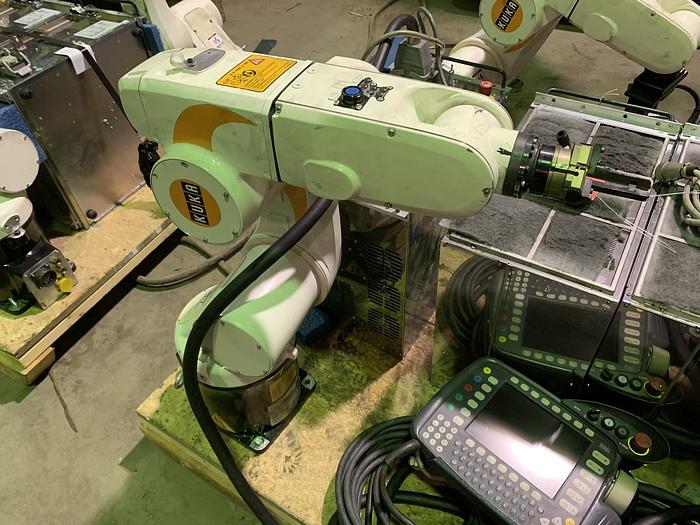

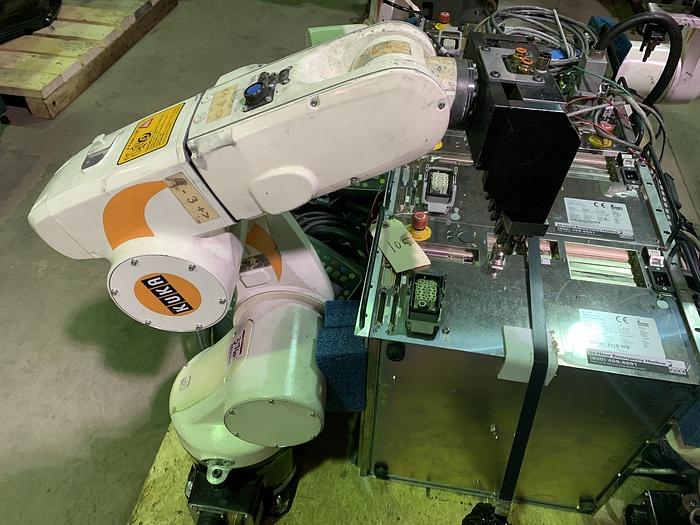

19-USED KUKA KR-5 SIXX R650 6 AXIS CNC ROBOT

Contact us for price

Harbor Springs, MI

orCall 1-231-526-9525

Description

J1 375 °/s (6.54 rad/s)
J2 300 °/s (5.24 rad/s)
J3 375 °/s (6.54 rad/s)
J4 410 °/s (7.16 rad/s)
J5 410 °/s (7.16 rad/s)
J6 660 °/s (11.52 rad/s)
Robot Motion Range
J1 ±170°
J2 +45° - 190°
J3 +165° - 119°
J4 ±190°
J5 ±120°
J6 ±358°

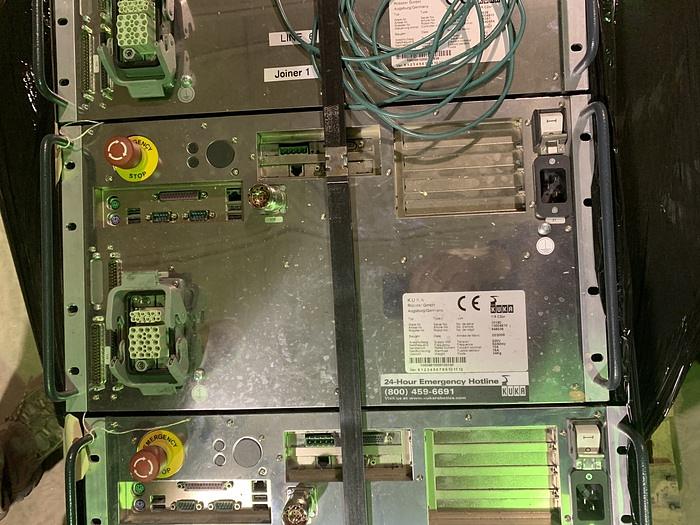

KRC2-SR CONTROL
CABLES
TEACH PENDANT
Short cycle times, combined with high accuracy, make the KUKA KR 5
Sixx an excellent choice for many assembly applications. A compact arm
with a 5 kg payload, the KR 5 Sixx is available with two reach
mounted on the floor or on the ceiling. A high-performance KUKA
PC-based controller makes the KR 5 Sixx KR C2 SR easy to program and
operate.
Assembly Robots
Bonding / Sealing Robots
Coating Robots
Machine Loading Robots
Material Handling Robots
Packaging Robots
Pick and Place Robots

Specifications

ManufacturerKUKA
ModelKR-5 SIXX R650
Year2008
ConditionUsed
Stock Number103745
Axes6
Payload5.00kg
H-reach650.00mm
Repeatability±0.0200mm
Robot mass127.00kg
StructureArticulated
MountingFloor, Inverted
