FANUC M3iA/6S HIGH SPEED PICKING AND ASSEMBLY ROBOT

No longer available
FANUC M3iA/6S HIGH SPEED PICKING AND ASSEMBLY ROBOT
Location:Harbor Springs, MI
Description
Robot Motion Speed
J1 4000 °/s (69.81 rad/s)
Robot Motion Range
J1 ±720°
The FANUC M-3iA/6S is a high speed picking robot. The M3iA/6S is a 4
axis model that features a single axis wrist rotation. This model also
includes Visual Line Tracking. The FANUC M3iA 6S robot features a 6kg
payload and is IP67 rated to be water and dust proof.

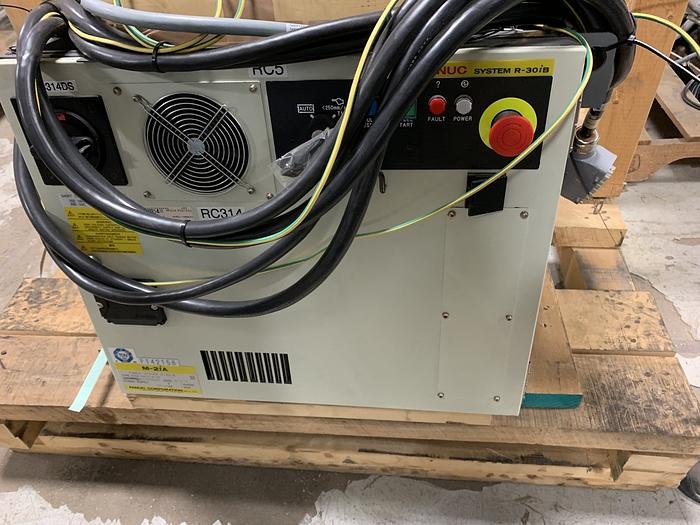

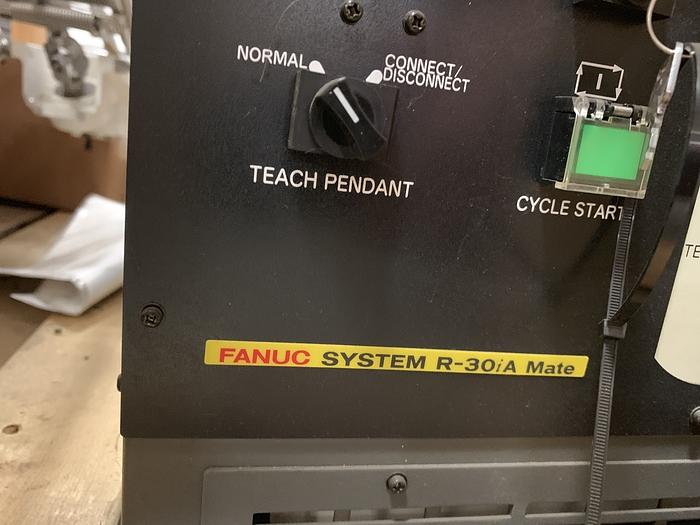

R30iA MATE CONTROLLER
TEACH PENDANT
CABLES
Specifications
| Manufacturer | FANUC |
| Model | M3iA/6S |
| Year | 2010 |
| Condition | Used |
| Serial Number | F105950 |
| Stock Number | 103741 |
| Axes | 4 |
| Payload | 6.00kg |
| H-reach | 1350.00mm |
| Repeatability | ±0.1000mm |
| Robot mass | 160.00kg |
| Structure | Delta, Parallel Link |
| Mounting | Inverted |
