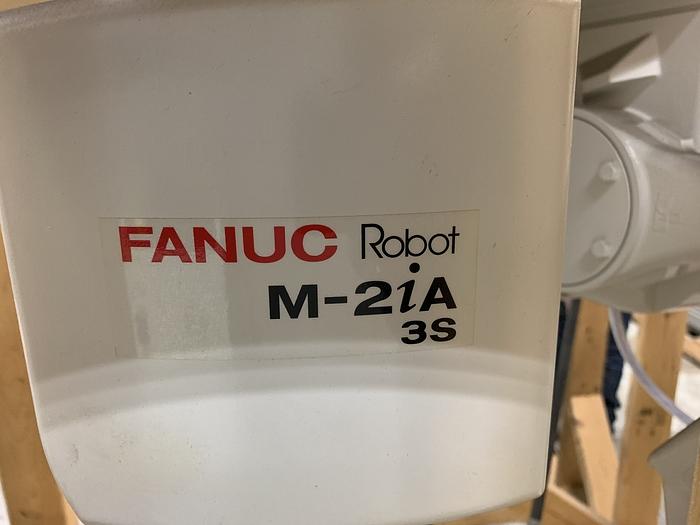

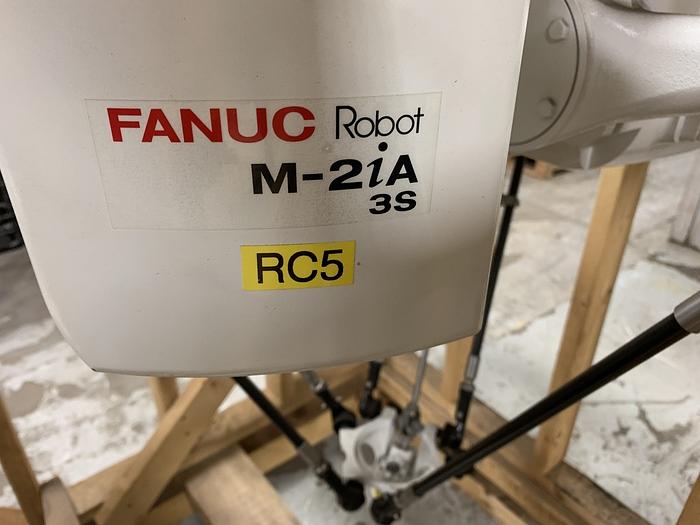

2013 FANUC M2iA/3S HIGH SPEED PICKING & ASSEMBLY ROBOT
No longer available
2013 FANUC M2iA/3S HIGH SPEED PICKING & ASSEMBLY ROBOT
Harbor Springs, MI
Description
Robot Motion Speed
J1 3500 °/s (61.09 rad/s)
Robot Motion Range
J1 ±800°
J2 ±800°
J3 ±300°
J4 ±720°
R30iB CONTROLLER
TEACH PENDANT
CABLES
The new FANUC M-2iA/3S is a high speed robot great for pick and place,
material handling, and assembly. This M2iA/3s R30iB can handle small
objects, with a 3kg payload. The FANUC M 2ia/3S has a reach of 800mm,

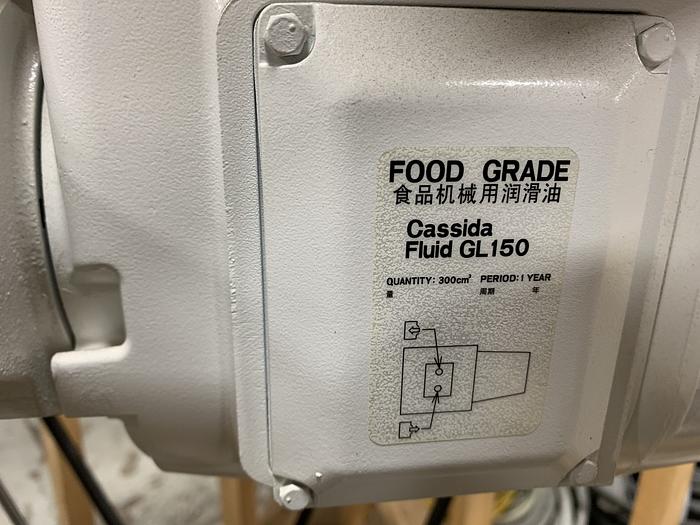

IP69K protection, hollow wrist, and is food validated.
R-30iB Open Air Cabinet, the R-30iB Mate cabinet, the R-30iB
A-cabinet, and the R-30iB iPendant touch.
Specifications
Manufacturer | FANUC |
Model | M2iA/3S PICK & PLACE |
Year | 2013 |
Condition | Used |

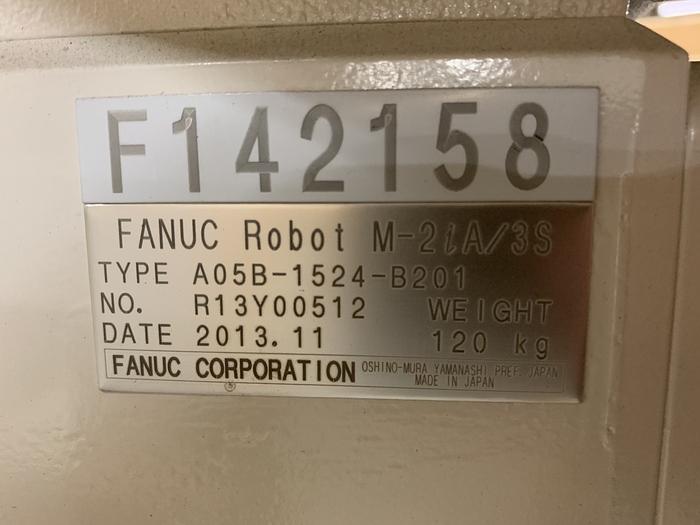

Serial Number | F142158 |
Stock Number | 103740 |
Axes | 4 |
Payload | 3.00kg |
H-reach | 800.00mm |
Repeatability | ±0.1000mm |
Robot mass | 120.00kg |
Structure | Delta, Parallel Link |
Mounting | Inverted |
There are a variety of compatible controllers for the m-2ia/3s | the |
