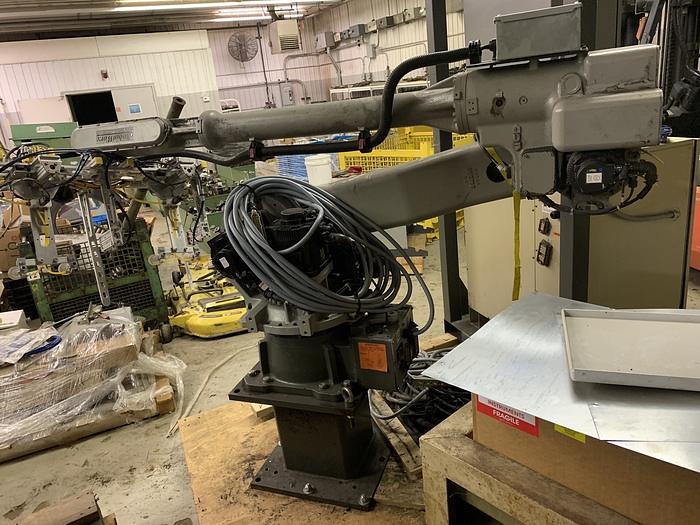

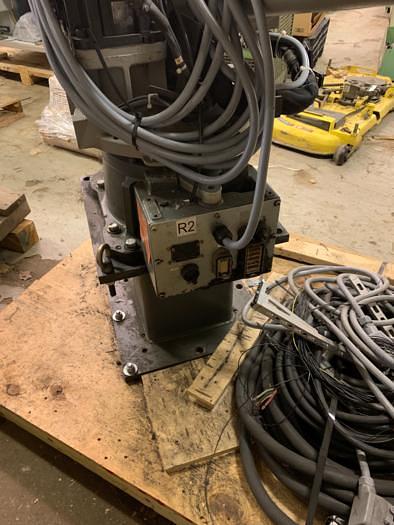

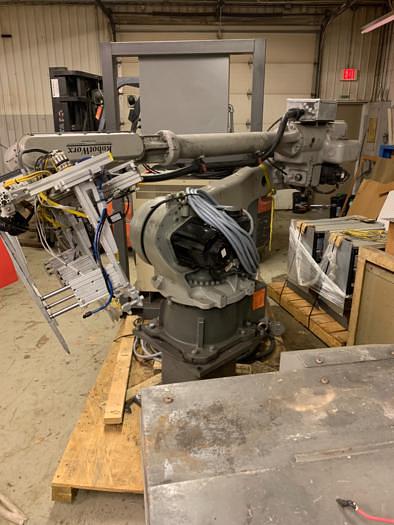

MOTOMAN MH50 6 AXIS CNC ROBOT WITH DX100 CNC CONTROLLER

Contact us for price

Harbor Springs, MI

orCall 1-231-526-9525

Description

Robot Motion Speed
J1 180 °/s (3.14 rad/s)
J2 178 °/s (3.11 rad/s)
J3 178 °/s (3.11 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 600 °/s (10.47 rad/s)
Robot Motion Range
J1 ±180°
J2 +135° - 90°
J3 +251° - 160°
J4 ±190°
J5 +230° - 50°
J6 ±360
Robot Applications
Arc Welding Robots
Coating Robots
Dispensing Robots
Fiberglass Cutting Robots
Machine Tending Robots
Material Handling Robots
Material Removal Robots
Available with the DX100 controller, the new and used MH50-20 DX100 is
a long-reach robot arm that offers high performance at fast speeds.
This arm features a wide work envelope and a small interference zone
for maximum flexibility in installations.

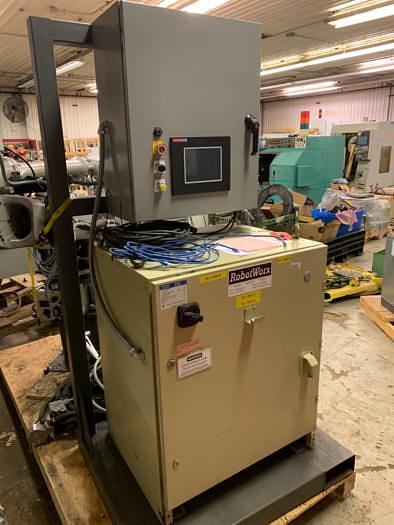

CONTROLLER DX100
CABLES
TEACH PENDANT

Specifications

ManufacturerMOTOMAN
ModelMH50
Year2009
ConditionUsed
Serial NumberS96A6712
Stock Number103750
Axes6
Payload20.00kg
H-reach3106.00mm
Repeatability±0.1500mm
Robot mass495.00kg
StructureArticularted
MountingFloor, Inverted, Angle
