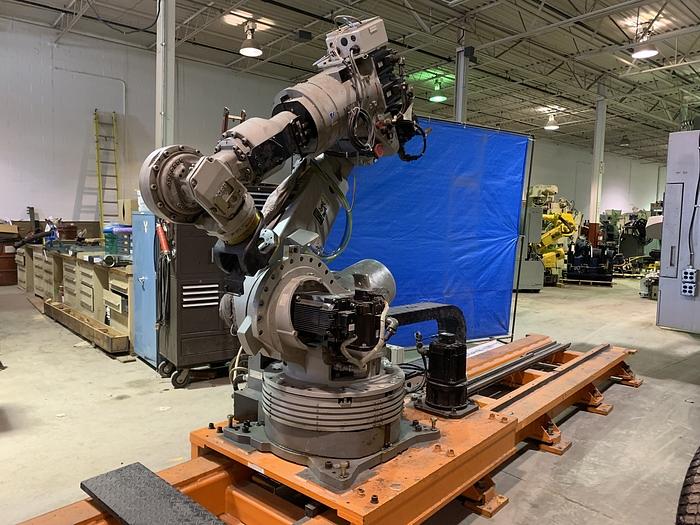

MOTOMAN ES200N 6 AXIS CNC ROBOT ON 17' TRACK!
No longer available
MOTOMAN ES200N 6 AXIS CNC ROBOT ON 17' TRACK!
Harbor Springs, MI
Description
Robot Motion Speed
J1 95 °/s (1.66 rad/s)
J2 85 °/s (1.48 rad/s)
J3 95 °/s (1.66 rad/s)
J4 115 °/s (2.01 rad/s)
J5 110 °/s (1.92 rad/s)
J6 190 °/s (3.32 rad/s)
Robot Motion Range
J1 ±180°
J2 +76° - 60°
J3 +230° - 142.5°
J4 ±360°
J5 ±125°
J6 ±360°

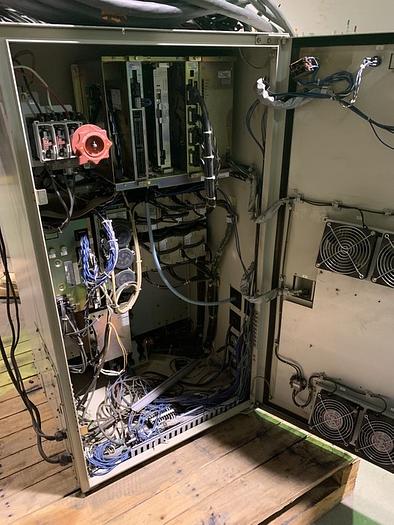

NX100 CONTROLLER
CABLES
TEACH PENDANT
16' TRACK MOUNTED 7TH AXIS
The high-speed Motoman ES200N "Expert Spot" robot is specifically
designed to deliver unmatched performance and reliability in spot
welding applications. To increase cable life, enhance safety, and
reduce teaching time, the servo gun cables and air and water lines are
routed through the robot's base and upper arm to the ES200N's wrist.
The ES200N robot's compact, slim design allows it to reduce cycle time
and reach into confined spaces, thus improving system productivity.
Robot Applications
Fiberglass Cutting Robots
Foundry Robots
Resistance Welding Robots
Spot Welding Robots
Welding Automation Robots
Specifications
Manufacturer | MOTOMAN |
Model | ES200N |
Year | 2006 |
Condition | Used |
Serial Number | ONCONTROLLERS6N2142M |
Stock Number | 103759 |
Axes | 6 |
Payload | 200.00kg |
H-reach | 2651.00mm |
Repeatability | ±0.2000mm |
Robot mass | 1230.00kg |
Structure | Articulated |
Mounting | Floor |
