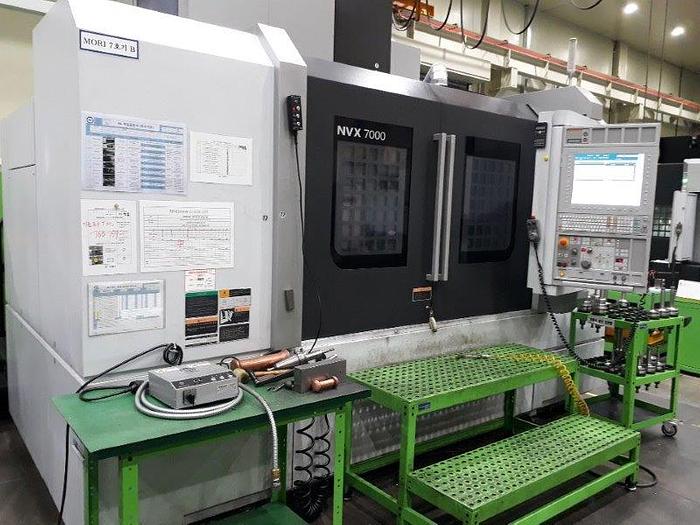

DMG Mori NVX-7000/ 50 Vertical Machining Center
No longer available
DMG Mori NVX-7000/ 50 Vertical Machining Center
Harbor Springs, MI
Description
COOLANT TANK CAPACITY, CHIP BUCKET FRONT DISCHARGE, 198 GAL.
- DMG MORI FANUC31IB CNC CONTROL
MEMORY CARD FOR DATA SERVER/CF CARD 1GB
ADDITIONAL WORKPIECE COORDINATE SYSTEM 48 SETS, PROGRAMMABLE
MIRROR IMAGE, COORDINATE SYSTEM ROTATION, AL NANO CONTROL II +
FAST DATA SERVER, KCS MARK EMG FILTER IN ELECTRIC BOX
- IN-MACHINE MEASURING SYSTEM TABLE TOUCH SENSOR MAGNESCALE
- DIRECT SCALE FEED BACK FOR X/Y/Z AXIS
- 15,000 RPM 40 HORSEPOWER SPINDLE DRIVE
- 7.9" EXTRA HEIGHT HIGH COLUMN
Specifications
| Manufacturer | DMG/MORI |
| Model | MVX-7000 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 103763 |
| Table size | 66.9" X 29.9" |
| Table loading capacity | 4,400 LBS |
| Distance from table surface to spindle gauge plane | 7.9" ~ 33.9" |
| Raised column, | 15.7" ~ 41.7" |
| Max. spindle speed | 15,000 RPM |
| Type of spindle taper hole | NO. 50 |
| Rapid traverse rate | 787.4 IPM |
| Cutting feedrate | 39.4~787.4" |
| Jog feedrate | 0 ~ 196.9) 20 STEPS |
| Tool storage capacity | 30 TOOLS |
| Cut-to-cut | 16.2 SEC. |
| Spindle drive motor | 40 HP |
| Electrical power supply | 47 KVA |
| Machine height from the floor | 132.6" |
| Machine size | 168" X 143" X 136" |
| Machine weight | 26,400 LBS |
