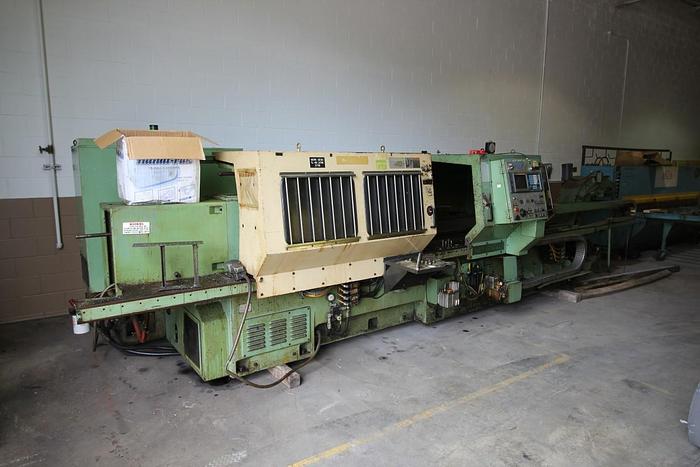

1990 MORI SEIKI TL40B/3000 2 AXIS CNC LATHE

Contact us for price

Harbor Springs, MI

orCall 1-231-526-7135 fax

Description

MORI SEIKI TL40B/3000 2 AXIS CNC LATHE DATE OF MFG. 1990 STK# 103778 ================================================ SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: CAPACITY: SWING OVER BED 24.4" SWING OVER CROSS SLIDE 15.0" DISTANCE BETWEEN CENTER 122.6" STANDARD MACHINING DIAMTER 13.8" MAX. MACHINING LENGTH 114.2" MOVING RANGE: X AXIS 9.3" Z AXIS 116.1" SPINDLE: SPINDLE SPEEDS 20-2,000 RPM SPINDLE NOSE JIS-A2-8 HOLE THROUGH SPINDLE 4.1" SPINDLE BEARING ID 6.3" TURRET: NUMBER OF TOOLS 6 SHANK HEIGHT FOR SQUARE TOOLS 1" SHANK DIAMETER FOR ROUND TOOLS 2" TURRET INDEX TIME 2.7 SECONDS FEED & SPEED: RAPID FEED RATE X AXIS 189 IPM Z AXIS 378 IPM CUTTING FEED RATE 0.0000003 TO 9.4 IPR JOG FEED RATE BOTH X & Z 78.7 IPM TAILSTOCK: TAILSTOCK MOVING RANGE 115.4" TAILSTOCK QUILL DIAMTER 5.9" TAILSTOCK QUILL TAPER MT#5 TAILSTOCK QUILL MOVING RANGE 3.9" MOTORS: MAIN SPINDLE MOTOR 22/18.5 KW POWER SUPPLY 40 KVA COOLANT TANK CAPACITY 150 LITERS DIMENSIONS: FLOOR SPACE REQUIRED 227.2" X 73.2" WIEGHT 19,800 LBS EQUIPPED WITH: FANUC MFT4 CNC CONTROL 12" 3 JAW CHUCK HYDRAULIC TAILSTOCK & STEADY REST CHIP CONVEYOR ASSORTED MANUALS THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. WWW.HARBORMACHINERY.COM 231-526-9525

Specifications

ManufacturerMORI SEIKI
ModelTL40B/3000 2 AXIS CNC LATHE
Year1990
ConditionUsed
Stock Number103778
