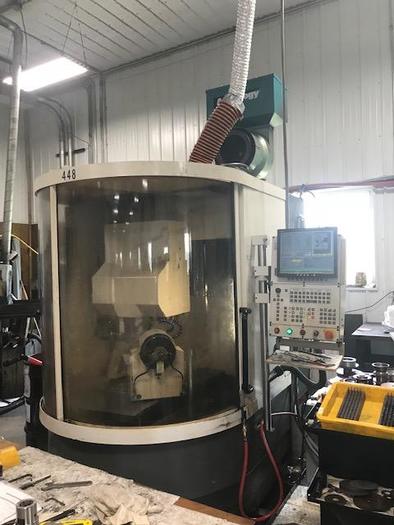

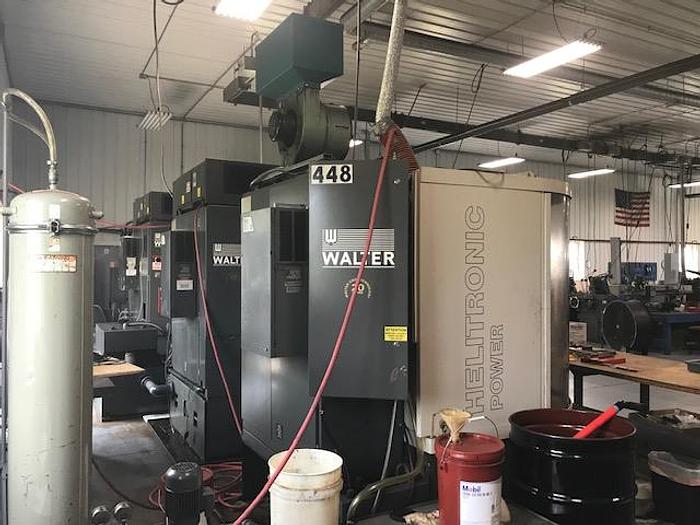

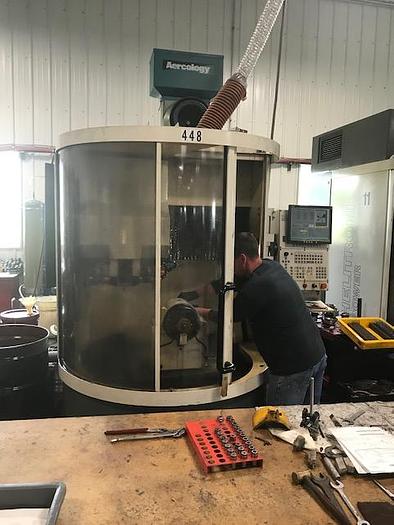

1997 WALTER HELITRONIC POWER 400 CNC TOOL AND CUTTER GRINDER

WALTER HELITRONIC POWER 400 CNC TOOL AND CUTTER GRINDER
YEAR 1997
STOCK # 103781

SPECIFICATIONS:
=========================================
SUBJECT TO VERIFICATION
-----------------------------------------------------------------------
Max. Workpiece Length, Peripheral Grinding: 10"
Min. - Max. Tool Diameter: 0.04" - 3.9"
Grinding Wheel Speed: 10,500 RPM
X-Axis Travel: 13.8"
Y-Axis Travel: 7.9"
Z-Axis Travel: 18.5"
X, Y, Z-Axis Rapid Traverse: 590 IPM
C-Axis: +/- 200°
A-Axis: Infinite
Linear Resolution: 0.0001mm
Radial Resolution: 0.0001°
Max. Grinding Wheel Diameter: 5.9"
Max. Workpiece Length, End Face Grinding: 7.3"

NEWER BALL SCREWS IN PLANT UNDER POWER
