2012 MOTOMAN MA1400 MIG WELDING CELL WITH A/B SIDED INDEX TABLE AND DX100 CONTROLLER
No longer available
2012 MOTOMAN MA1400 MIG WELDING CELL WITH A/B SIDED INDEX TABLE AND DX100 CONTROLLER
Almont, MI
Description
1-USED MOTOMAN MA1400 MIG WELDING CELL WITH A/B SIDED INDEX TABLE AND DX100 CONTROLLER
SERIAL NUMBER
DATE OF MFG. 2012
STK#103793
=======================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
Robot Specifications
Axes: 6
Payload: 3.00kg
H-Reach: 1434.00mm
Repeatability: ±0.0800mm
Robot Mass: 130.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed
J1 200 °/s (3.49 rad/s)
J2 200 °/s (3.49 rad/s)
J3 220 °/s (3.84 rad/s)
J4 410 °/s (7.16 rad/s)
J5 410 °/s (7.16 rad/s)
J6 610 °/s (10.65 rad/s)
Robot Motion Range
J1 ±170°
J2 +155° - 90°
J3 +190° - 175°
J4 ±150°
J5 +180° - 45°
J6 ±200°
Robot Applications
Arc Welding Robots
Laser Welding Robots
MIG Welding Robots
Plasma Welding Robots
TIG Welding Robots

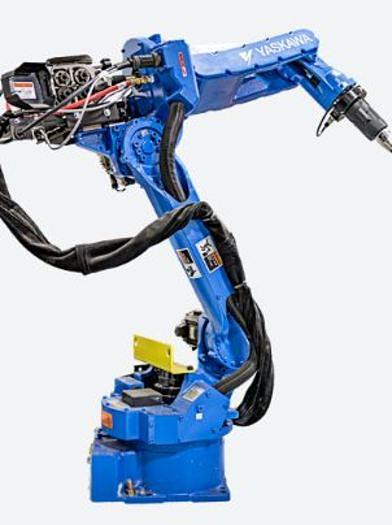

Fastest robot in its class, the MA1400 Motoman welding robot features cutting-edge motors and ARM control. The Sigma V AC servo motors allow for advanced control that significantly reduces welding cycle time. A 3kg payload and generous 1434 mm reach increase the productivity of the Motoman MA-1400 DX100. MA 1400 DX-100 Motoman welding robots include through-arm cabling to extend cable life and reduce interference. The MA1400 is designed to reach into tight spots with ease.
EQUIPPED WITH:
DX 100 CONTROLLER
CABLES
TEACH PENDANT
MILLER AUTO AXCESS 300 POWER SUPPLY
WELD GUN AND WIRE FEEDER
PRESTON EASTON INDEX TABLE
Specifications
Manufacturer | MOTOMAN |
Model | MA1400 MIG WELDING CELL WITH A/B SIDED INDEX TABLE AND DX100 CONTROLLER |
Year | 2012 |
Condition | Used |
Stock Number | 103793 |
