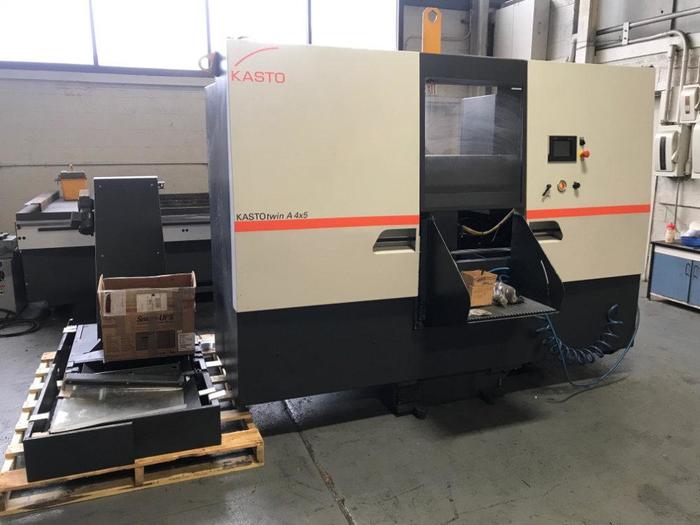

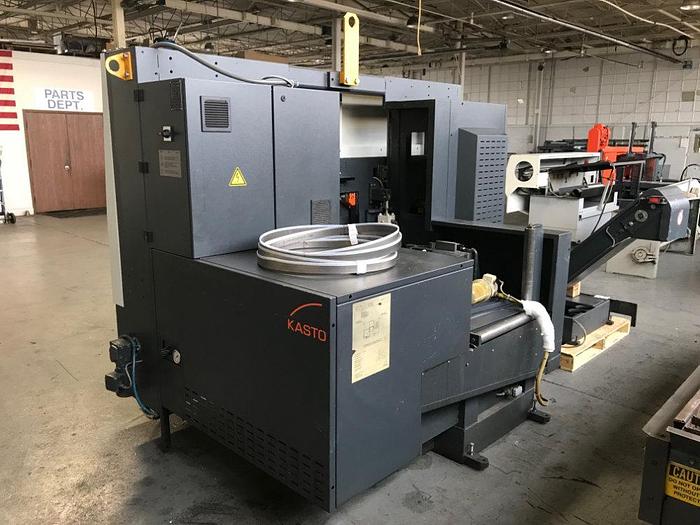

2012 KASTO A4X5 DUAL COLUMN HORIZONTAL BANDSAW

2012 KASTO A4X5 DUAL COLUMN HORIZONTAL BANDSAW

Contact us for price

Almont, MI

orCall 1-231-526-7135 fax

Description

KASTO FULLY AUTOMATIC DUAL POST HORIZONTAL BANDSAW Model A4X5 Year: 2012 Stock No. 103805 SPECIFICATIONS: Rect-Cap (H): 17.32 inches Rect-Cap (W): 17.32 inches CNC Control: yes Type of CNC Control: Kasto Dimensions: 86” x 115” x 81” Weight: 6600 pounds Specifications Specifications Max. cutting cap. 90 deg, round: 17.32” (440mm) Max. cutting cap. 90 deg, square: 17.32” x 17.32” (440mm x 440mm) Max. cutting cap. 90 deg, rectangular: 20.47”w x 17.32”h (520mm x 440mm) Blade dimensions: 224.4” x 1.614” x .050” Blade guides: Carbide w/ anti vibration rollers Guide arm (manual / powered): Powered Blade speeds: 50 - 500 FPM Number of speeds: Infinite Blade motor: 7.4 H.P. Blade drive type: Motor to gearbox Blade tension type: Hydraulic Maximum feed length: 33.46” (ball screw driven) Table height: 27.56” Vise type: Hydraulic Remnant length: .059” single cut, 3.35” auto mode Dimensions: 86” x 115” x 81” Weight: 6,600 Lbs. Equipped with: Kasto chip conveyor Hydraulic side shifting cylinder for material infeed and material vise PLC control with 99 job storage Variable vise pressure LED machine lamp Coolant hose for cleaning Vertical rollers The Kasto Twin A 4x5 is a heavy duty, double column high performance machine offering rugged cutting performance on a wide range of materials. The machine comes with many features and standard equipment including a full enclosure for operating safety, ball screw infeed, incremental feed of material lengths shorter that 10” increasing productivity and much more. We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor. WWW.HARBORMACHINERY.COM 231-526-9525

Specifications

ManufacturerKASTO
ModelA4X5 DUAL COLUMN HORIZONTAL BANDSAW
Year2012
ConditionUsed
Stock Number103805
