2015 AMADA HA-400W HORIZONTAL BAND SAW
No longer available
2015 AMADA HA-400W HORIZONTAL BAND SAW
Almont, MI
Description

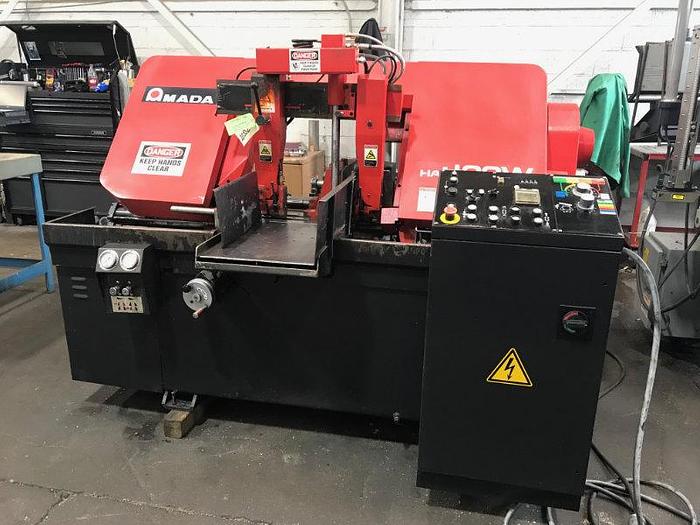

AMADA AUTOMATIC HORIZONTAL BAND SAW
Model HA-400W 16" x 16"
YEAR 2015
Stock No. 103806
SPECIFICATIONS:
Rect-Cap (H): 16 inches
Rect-Cap (W): 16 inches
Rounds-Cap: 16 inches
Square-Cap: 16 inches
Power: 7.5 horsepower
Type (Auto, Manual, Semi): automatic
Blade Width: 1.5 inches
Blade Thickness: .050 inches
Blade Length: 180 inches
CNC Control: no
Dimensions: 90" 106" x 63"
Weight: 4850 pounds
Max Table Load: 4850 pounds
Specifications
Maximum cutting capacity 90 deg, round: 16"
Maximum cutting capacity 90 deg, square: 16" x 16"
Blade dimensions: 15' x 1-1/2" x .050"
Blade guides: Carbide
Guide arm (manaul / powered): Manual
Blade speeds: 50 - 295 FPM
Number of speeds: Infinite
Blade motor: 7.5 H.P.
Blade drive type: Motor to pulley to gearbox
Blade tension type: Hydraulic
Hydraulic motor: 2 H.P.
Hydraulic Tank Capacity: 31.5 Gallons
Coolant motor: 1/4 H.P.
Coolant type: Flood
Coolant tank capacity: 10.5 Gallons
Maximum feed length: 19.6"
Number of multi indexes: 9x
Table height: 31.5"
Maximum weight load: 5,511 Lbs.
Vise type: Hydraulic
Remnant length: 3"
Voltage: 220 volt 3 phase
Dimensions: 90" x 106" x 63"
Weight: 4,850 Lbs.
Equipped with:
Length set with hand wheel and has a mechanical length readout
Variable vise pressure
Wash down hose
Blade break switch
Out of stock switch
Piece counter
Powered screw type chip auger
Fast approach of blade to cut area
Powered chip brush
Positive hydraulic down feed
Work light
Manual/automatic mode
We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
WWW.HARBORMACHINERY.COM
231-526-9525
Specifications
Manufacturer | AMADA |
Model | HA-400W HORIZONTAL BAND SAW |
Year | 2015 |
Condition | Used |
Stock Number | 103806 |
