FANUC N95 FACE MASK NOSE CLIP FANUC ROBOTIC ASSEMBLE AND ATTACHING CELL BY ACE NEW 2020

FANUC N95 FACE MASK NOSE CLIP FANUC ROBOTIC ASSEMBLE AND ATTACHING CELL BY ACE NEW 2020

Contact us for price

Location:Imlay City, MI

orCall 1-231-526-7135 fax

Description

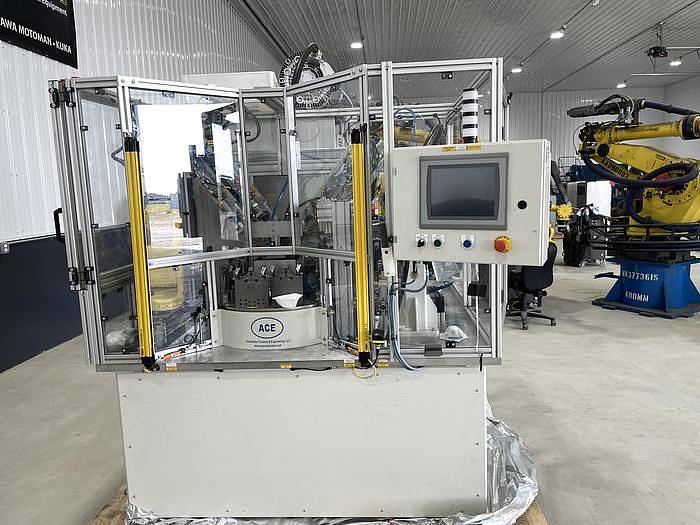

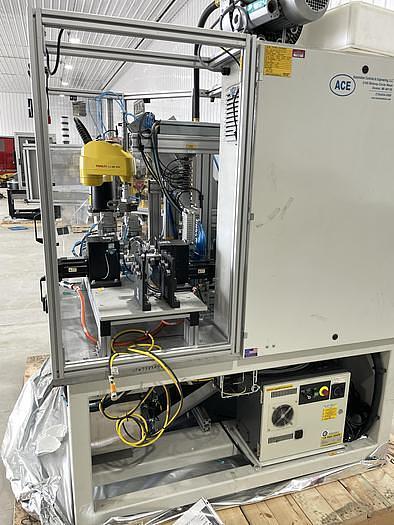

1-USED FANUC ROBOTIC CELL FOR ATTACHING NOSE CLIP TO N95 FACE MASK

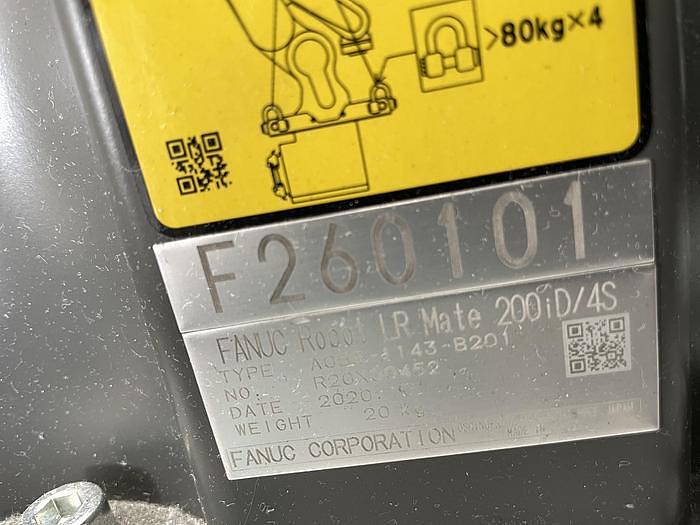

WITH (1) FANUC LR MATE 200iD/4S ROBOT SN F260101 DATE OF MFG 10/2020

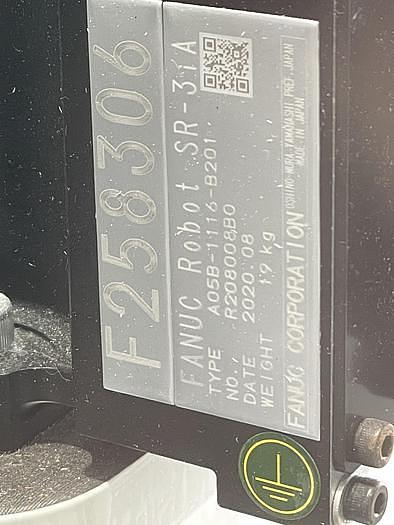

(1) FANUC SR3iA SCARA ROBOT SN F258306 DATE OF MFG 08/2020

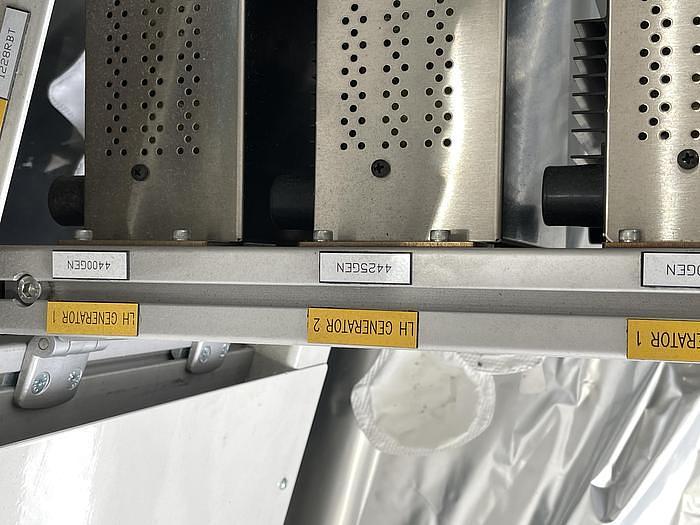

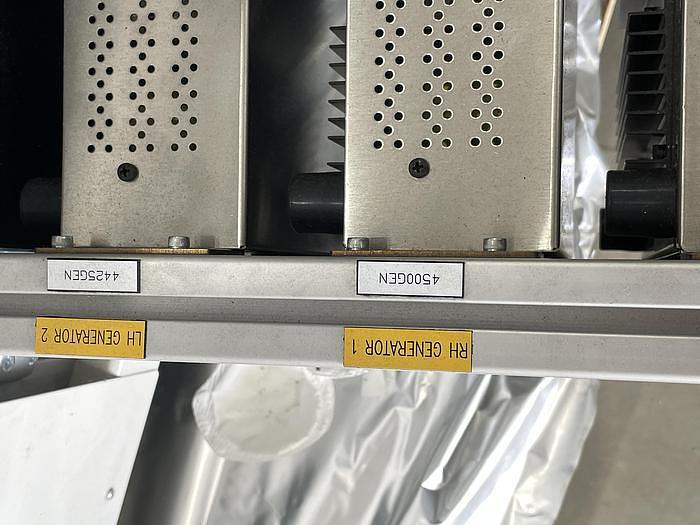

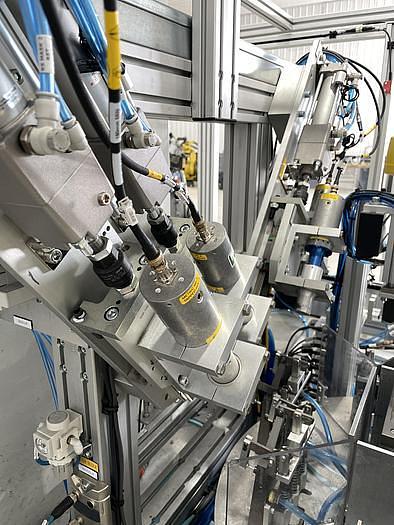

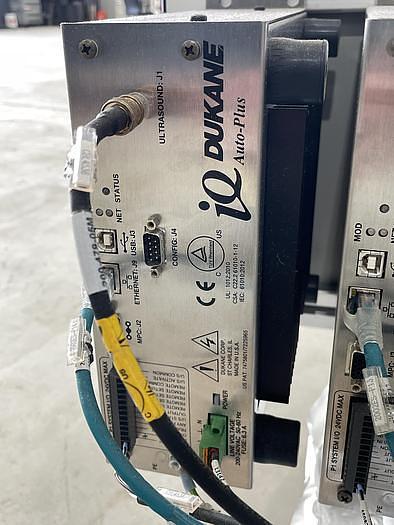

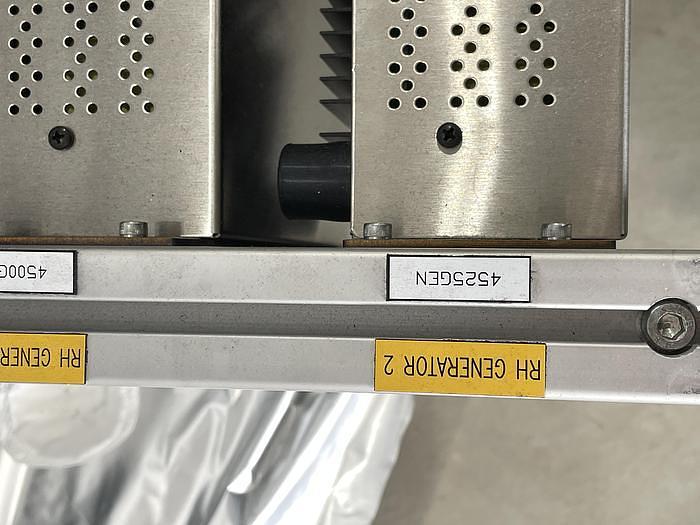

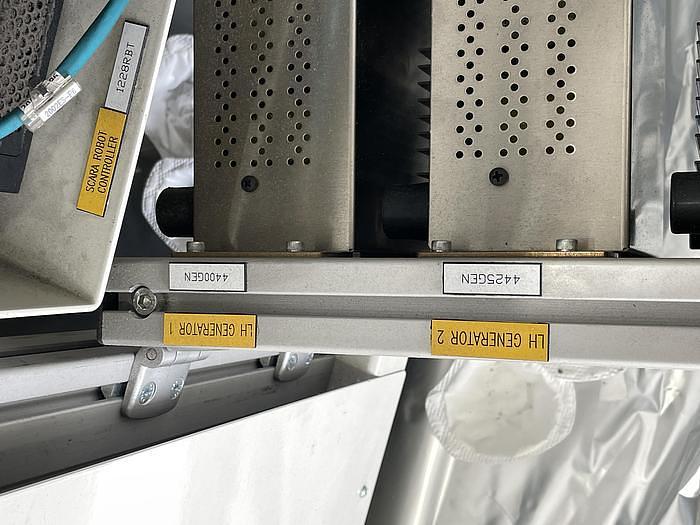

(4) DUCANE ULTRASONIC WELDERS

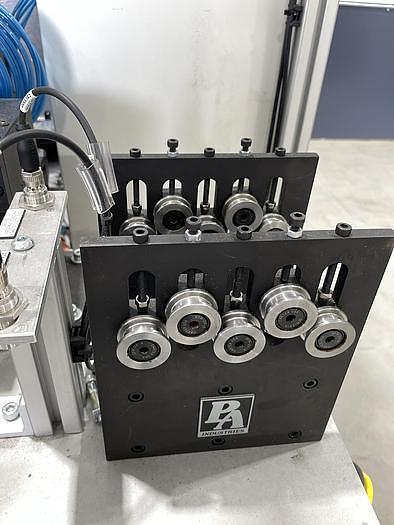

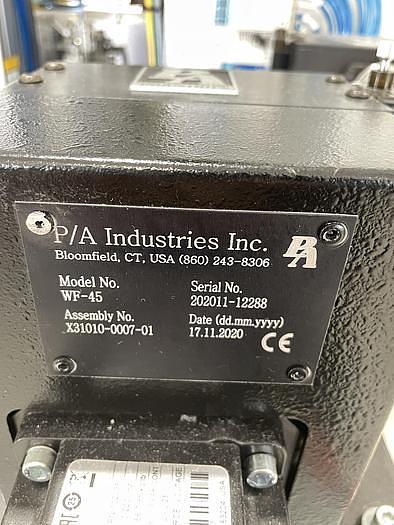

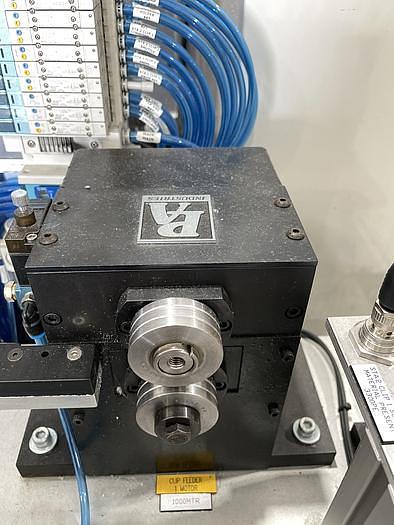

(2) PA INDUSTRIES FEEDERS, STRAIGHTENERS AND CUT OFFS SHEARS FOR NOSE CLIPS

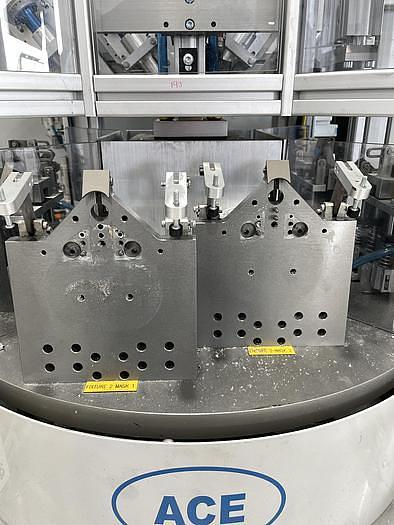

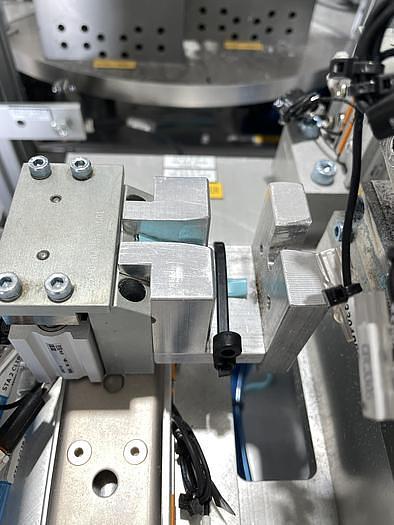

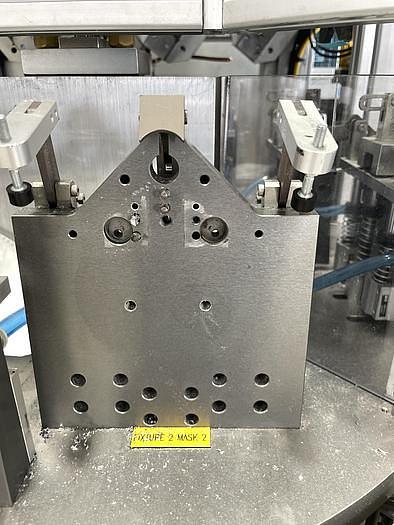

(1) INDEX TABLE WITH TWO FACE MASK TOMBSTONES TO HOLD MASK PER TABLE POSITION

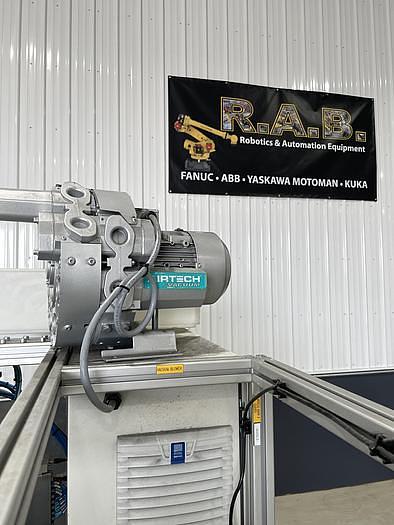

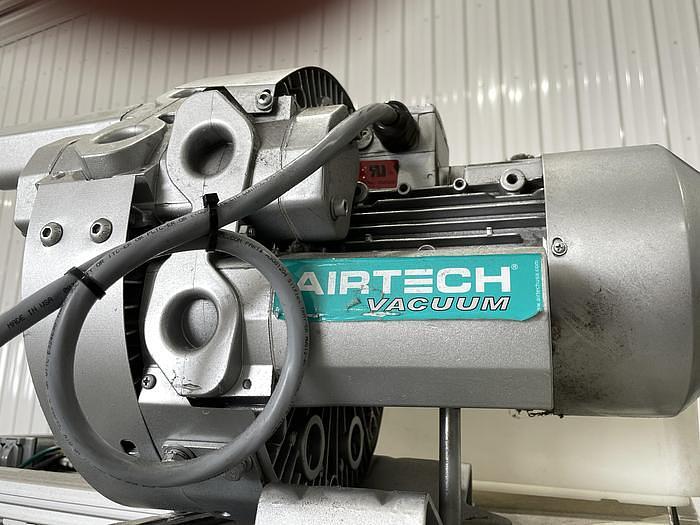

(1) AIRTECH VACUUM GENERATOR

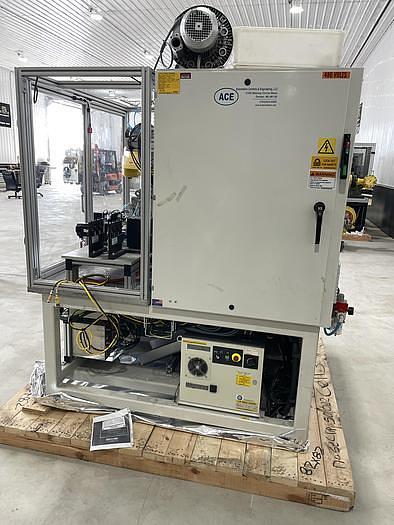

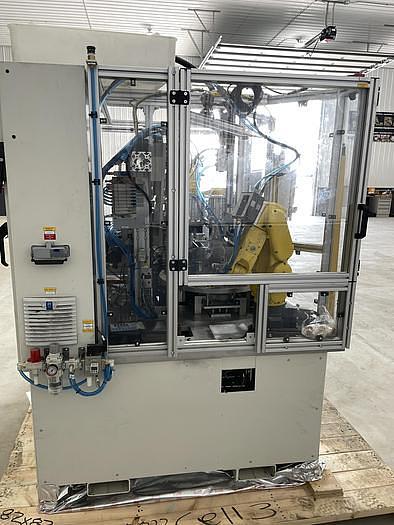

THE ENTIRE CELL WAS MANUFACTURED ON A COMMON BASE WITH FORK POCKETS

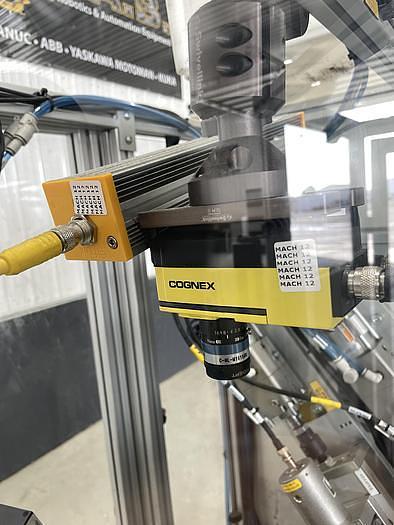

COGNEX CAMERA AND LIGHTING FOR VISION SYSTEM

THE CELL WAS BUILT BY AUTOMATION CONTROLS & ENGINEERING IN LATE 2020

STK#104042


SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

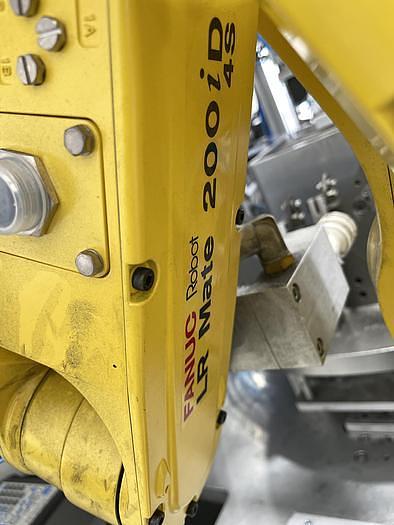

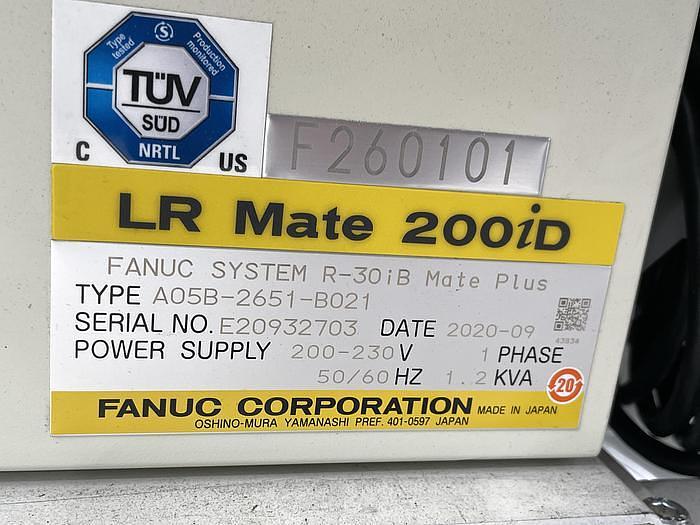

FANUC LR MATE 200iD/4S 6 AXIS ROBOT WITH R30iB MATE PLUS CONTROL W/VISION SYSTEM


FANUC LRMate 200iD/4S R30iB is a highly productive, short arm model available in the LR Mate 200iD series. It has a 550mm reach and a 4 kg payload capacity. Extremely compact, this 6 axis short arm robot has been designed for confined spaces and compact machines. The FANUC LR Mate 200iD/4s's slim arm is useful in narrow spaces, and its hand cabling and piping are integrated into the arm. Easy to integrate, this model is also available with a range of options including integrated intelligent (vision & force) functionality, and special application packages.


Robot Specifications:

Axes: 6

Payload: 4kg

H-Reach: 550mm

Repeatability: ±0.02mm

Robot Mass: 20kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 460 °/s (8.03 rad/s)

J2 460 °/s (8.03 rad/s)

J3 520 °/s (9.08 rad/s)

J4 560 °/s (9.77 rad/s)

J5 560 °/s (9.77 rad/s)

J6 900 °/s (15.71 rad/s)


Robot Motion Range:

J1 +340° - 360°

J2 ±230°

J3 ±397°

J4 ±380°

J5 ±240°

J6 ±720°


Applications:

Assembly Robots

Deburring Robots

Machine Loading Robots


EQUIPPED WITH:

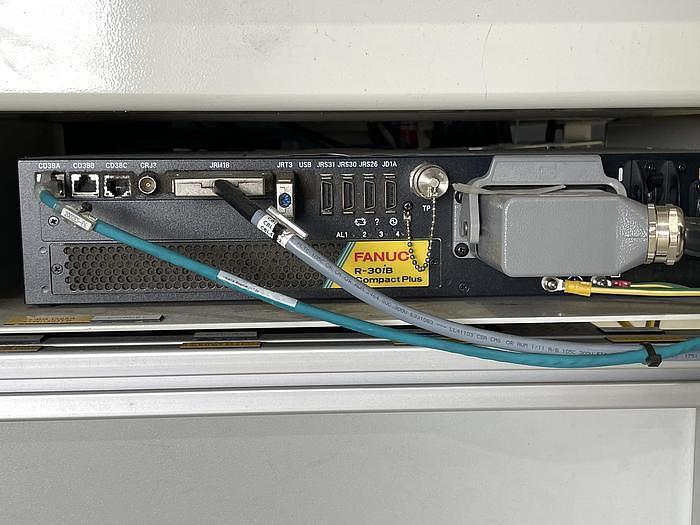

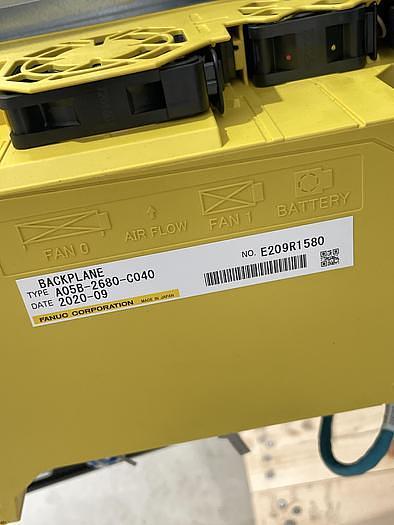

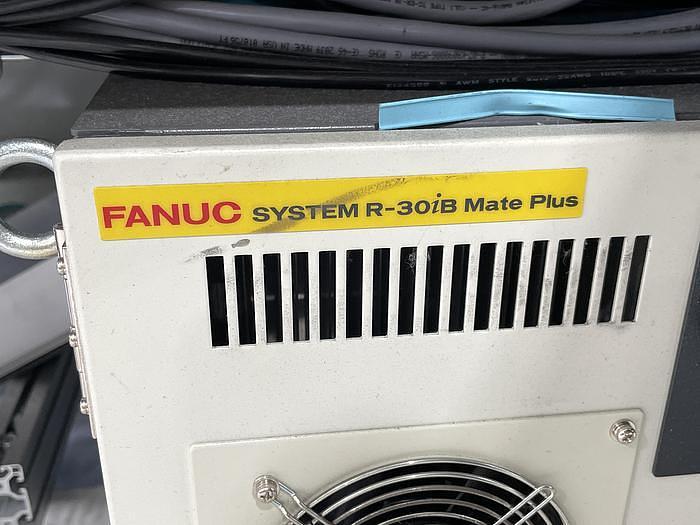

FANUC R30iB MATE PLUS CONTROLLER

FANUC ROBOT CONNECTION CABLES

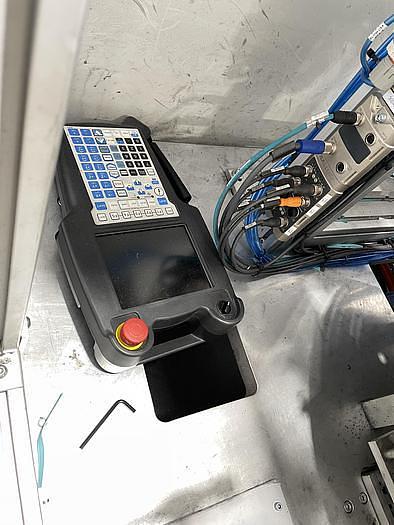

FANUC COLOR TEACH PENDANT

COGNEX CAMERA & LIGHTING VISION SYSTEM

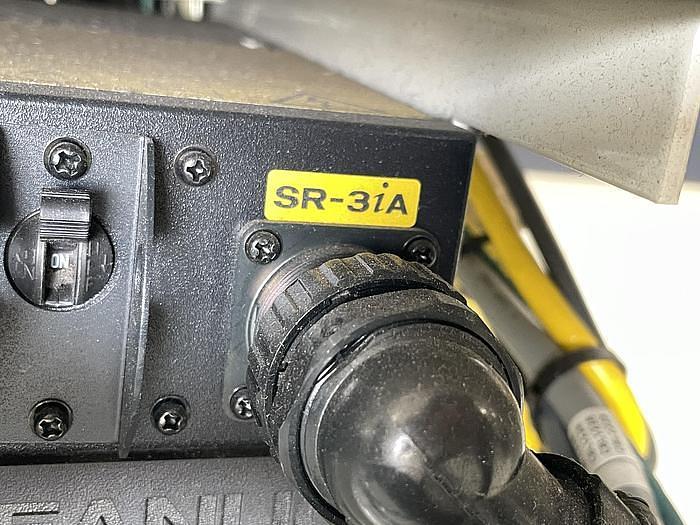

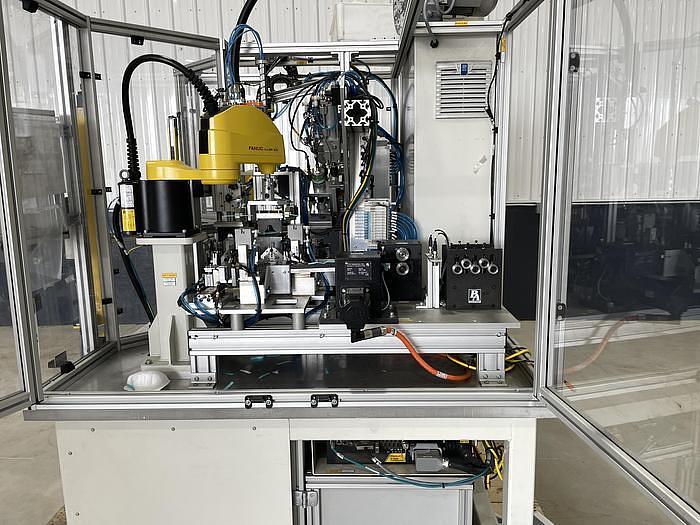

FANUC SR3iA 4 AXIS HIGH SPEED SCARA ROBOT WITH R30iB OPEN AIR CONTROLLER


FANUC SR-3ia is the perfect solution for your small part assembly and handling applications. It is a four-axis robot that brings fast speeds and incredible precision to the production line. This SCARA SR-3ia robot also offers users a very compact footprint and slim profile to help minimize interference with peripheral devices.


Robot Specifications:

Axes: 4

Payload: 3kg

H-Reach: 400mm

Repeatability: ±0.01mm

Robot Mass: 19kg

Structure: Scara

Mounting: Shelf


Robot Motion Speed:

J1 720mm/sec

J2 780mm/sec

J3 1800mm/sec

J4 3000mm/sec


Robot Motion Range:

J1 +/-142

J2 +/-145

J3 200mm

J4 +/-360


Applications:

Dispensing Robots

Pick and Place Robots

Assembly Robots


EQUIPPED WITH

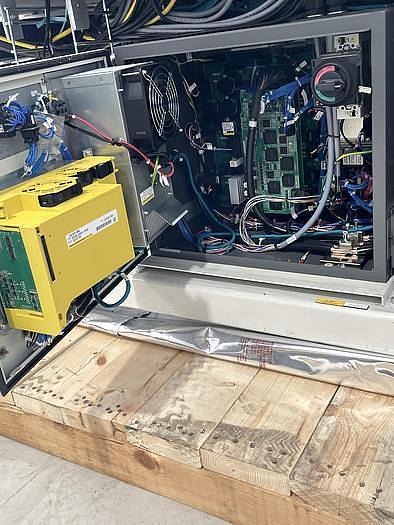

FANUC OPEN AIR R30iB CONTROLLER

FANUC ROBOT CONNECTION CABLES


CELL JIC PANEL AND CONTROLS

480 VOLT/ 3 PHASE/ 60 CYCLES

INTEGRATED WITH ALL ALLEN BRADLEY 2100 PLC CONTROLS

ALLEN BRADLEY HMI

ALLEN BRADLEY IO

ALLEN BRADLEY KINETIX 5500S2

ALLEN BRADLEY 525 POWER FLEX POWER SUPPLIES


FOB TRUCK, IMLAY CITY, MI 48444


THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.


HARBOR MACHINERY INC.

Specifications

ManufacturerFANUC
ModelN95 FACE MASK NOSE CLIP FANUC ROBOTIC ASSEMBLE AND ATTACHING CELL BY ACE NEW 2020
ConditionUsed
Stock Number104042
