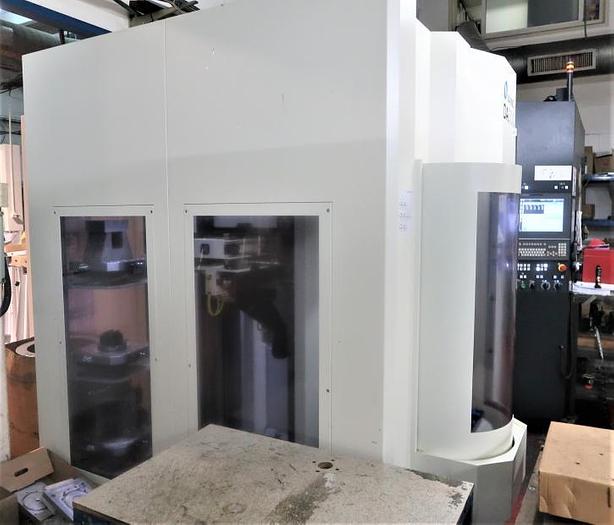

2018 MAKINO DA300 ULTRA PRECISION 5 AXIS CNC VERTICAL MACHINING CENTER
Coffeyville, KS
Description
MAKINO DA300 ULTRA PRECISION 5 AXIS CNC VERTICAL MACHINING CENTER
YEAR 2018
STOCK# 103813
________________________________________
General Specifications
Table Size 300 mm x 340 mm
X 450 mm
Y 620 mm
Z 500 mm
A axis 150° (+30 to -120)
C axis 360°
Spindle RPM 20,000 (HSK - A63)
Rapid Traverse 60,000 mm/min
Cutting Feed rate 60,000 mm/min
Maximum Workpiece 450 mm diameter
Maximum Payload 250 kg
ATC Capacity 60 tools Tool to Tool
Chip to Chip Maximum Tool Length
Maximum Tool Diameter Maximum Tool Weight
3.5 sec 300 mm
70mm I 140mm (ALL/ ADJ)
8 kg
DA300 VMC Reduces Machining Time for Complex Production Parts
The DA300 is inspired by the best design characteristics from both vertical and horizontal machine platforms to deliver the highest productive capabilities for multi - axis workpieces in the very smallest of machine footprints. These features make the DA300 ideal for single set - up, multi - side accessibility, or full contouring capability to quickly and efficiently tackle a wide variety of complex production part applications - typical of industrial hydraulic & pneumatics elements, optical, electrical & semiconductor markets, medical & dental products, die - cast parts, automotive components, aircraft and aerospace parts as well as contract job - shop work.

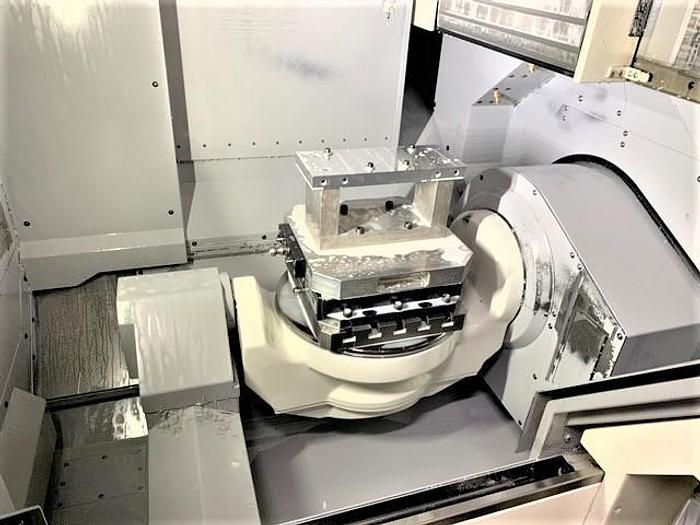

The DA300 Five -Axis Vertical Machining Center combines a rigid structure and high dynamic motion control to significantly reduce part cycle times while maintaining very accurate performance. Equipped with an integral, DD - motor designed A-Axis and C -Axis, the machine provides five - side access for single set-up production of complex production parts.

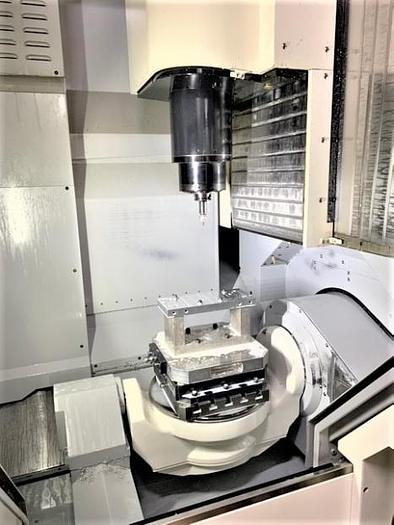

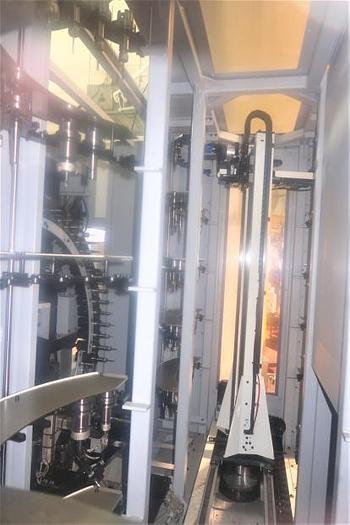

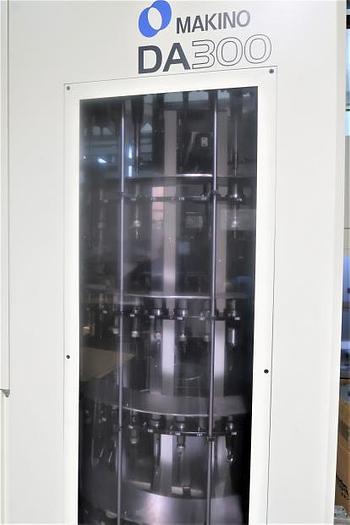

At 20,000 RPM, 29.5 HP, HSK -A63, the machine spindle provides the capability to tackle rigorous milling, drilling and tapping tasks associated with a wide variety of production parts. A standard, 60 tool magazine insures an extensive selection of tooling to address any part configuration.
To further minimize non - cut times, the DA300 is standardly equipped with a Vision BTS (Broken Tool Sensor) outside of the machine work zone to insure tooling integrity - but, not impact part cycle times.
The DA300 integral table rectangular table (340 mm x 300 mm) is prepared with pneumatic ports design to readily integrate into a pallet system providing for quick, efficient part exchange - maximizing machine utilization.

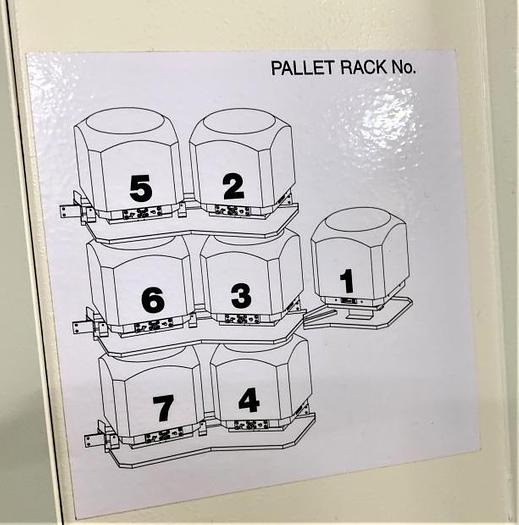

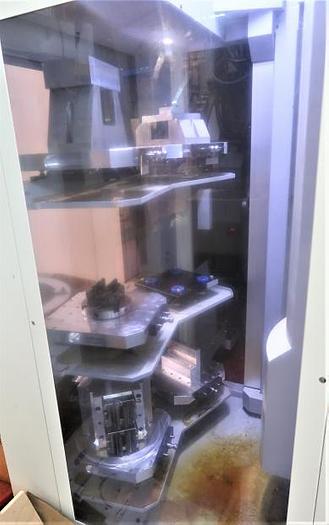

Makino also offers two (2) WPS (Workpiece Pallet System) that can be field added to the DA300 machine. These can be configured in a 7 pallet arrangement - that is field expandable - or a 19 pallet configuration. The WPS provides "off - the - shelf" automation for a very productive five - axis machine.

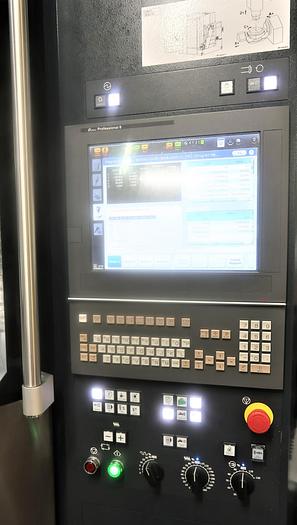

The Makino Professional 6 control takes you from parts to profits with elegant functionality by making the point where human meets machine a seamless transition. Streamlined screen layouts, operator assistance, new machine functions, and safety enhancements are accelerating and protecting your productivity. For even greater productivity, Super Geometric Intelligence 5 (SGl.5 ) insures optimum performance during execution of the tool path - producing the shortest cycle times.
DA300 VMC Reduces Machining Time for Complex Production Parts
The DA300 is inspired by the best design characteristics from both vertical and horizontal machine platforms to deliver the highest productive capabilities for multi - axis workpieces in the very smallest of machine footprints. These features make the DA300 ideal for single set - up, multi - side accessibility, or full contouring capability to quickly and efficiently tackle a wide variety of complex production part applications - typical of industrial hydraulic & pneumatics elements, optical, electrical & semiconductor markets, medical & dental products, die - cast parts, automotive components, aircraft and aerospace parts as well as contract job - shop work.
The DA300 Five -Axis Vertical Machining Center combines a rigid structure and high dynamic motion control to significantly reduce part cycle times while maintaining very accurate performance. Equipped with an integral, DD - motor designed A-Axis and C -Axis, the machine provides five - side access for single set-up production of complex production parts.
At 20,000 RPM, 29.5 HP, HSK -A63, the machine spindle provides the capability to tackle rigorous milling, drilling and tapping tasks associated with a wide variety of production parts. A standard, 60 tool magazine insures an extensive selection of tooling to address any part configuration.
To further minimize non - cut times, the DA300 is standardly equipped with a Vision BTS (Broken Tool Sensor) outside of the machine work zone to insure tooling integrity - but, not impact part cycle times.
The DA300 integral table rectangular table (340 mm x 300 mm) is prepared with pneumatic ports design to readily integrate into a pallet system providing for quick, efficient part exchange - maximizing machine utilization.
Makino also offers two (2) WPS (Workpiece Pallet System) that can be field added to the DA300 machine. These can be configured in a 7 pallet arrangement - that is field expandable - or a 19 pallet configuration. The WPS provides "off - the - shelf" automation for a very productive five - axis machine.
The Makino Professional 6 control takes you from parts to profits with elegant functionality by making the point where human meets machine a seamless transition. Streamlined screen layouts, operator assistance, new machine functions, and safety enhancements are accelerating and protecting your productivity. For even greater productivity, Super Geometric Intelligence 5 (SGl.5 ) insures optimum performance during execution of the tool path - producing the shortest cycle times.
Standard 20,000min-1 spindle
Rigid tap (Standard)
HSK-A63 (Standard)
Dia. 300mm circular table specification (Standard)
Scale feedback X, Y, Z-axis 0.05 micron m (Standard)
60-tool magazine (Standard)
HSK pots for 60-tool magazine (Standard)
Tool magazine guard (Standard)
Tool magazine door (with door lock) (Standard)
Collision Safeguard (Pro.6 screen type) specification (Standard)
Base coolant (Standard)
Air blower (Standard)
Nozzle coolant (Standard)
Shower coolant (Standard)
Through spindle coolant (1.5MPa) (Standard)
Oil skimmer (Standard)
Lift up chip conveyor (Standard)
Secondary filter for coolant (Standard)
Splash guard (with lighting) (Standard)
Operator door lock (Operation Mode) (Standard)

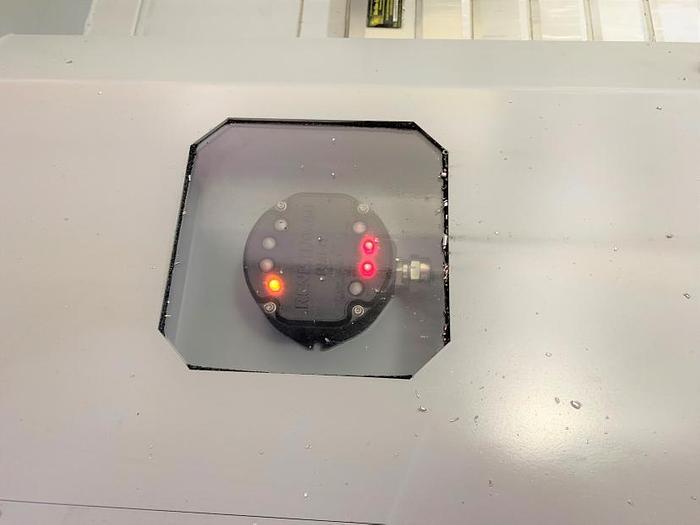

Vision B.T.S. (broken tool sensor) (Standard)
Automatic fire extinguisher interface (Standard)
Door interlock for Machine Tool Controller (Standard)
Portable manual pulse generator (Standard)
Linear interpolation type positioning (Standard )
Helical interpolation (Standard)
User memory 2GB+1GB (Standard)
External setting type spindle orientation (Standard)
Tool offset memory C (Standard)
Tool offset 400 pairs (Standard)
Workpiece coordinate system pairs 54 (6+48) (Standard)
Optional block skip: total 9 (Standard)
Program quick restart function (Standard)
Retraction for Rigid tapping (Standard)
Custom macro common variables 1100 (Standard)
Macro Variable File Output Function (Standard)
High speed skip (Standard)
Adaptive control function (AC function) (Standard)
Super GI .5 control (Standard)
High-speed smooth TCP (Standard)
3-dimensional cutter compensation (Standard)
Tilted working plane indexing command (Standard)
Energy saving function (Standard)
Accurac¥
Positioning:
X-axis, Y-axis, Z-axis (full stroke) (with scale feedback) ± 0.0015 mm A-axis± 3.0 sec
C-axis ± 2.0 sec
Repeatability:
X-axis, Y-axis, Z-axis
(with scale feedback)± 0.0010 mm A-axis ± 3.0 sec
C-axis ± 2.0 sec
Straightness (per 450 mm) 0.005 mm
Squareness (per 450 mm) 0.005 mm
Parallelism between each axis motion and table top (per 300 mm) 0.008 mm
Run-out of pallet top (dia. 500 mm) 0.015 mm
Run-out of internal taper of spindle (at nose) 0.002 mm
(at 300 mm) 0.008mm
Squareness between spindle center line and table top As A=0 deg. 0.010 mm
[Note]
Allowance accuracies at assembly temperature condition.
Equipped With
Included Options:
13006 Chuck less table specification
*Please prepare EROWA chuck by TekTeam/customer
Workpiece washing gun (operator side)
31004 Mist collector interface 0.4kW (for 400/460V)
31005 Mist collector joint dia. 125mm
37004 SIG window rotary wiper
Automatic non-contact tool measuring function (Blum)
37005 Automatic workpiece measuring device (Radio type, Renishaw)
*Including "Automatic three-points centering function", "Center of rotation axis
measurment function" and "Calibration block for Center of rotation axis measurment function"
69006 MML interface *Need Fast Ethernet.
ALL SPECIFICATIONS SUBJECT TO BUYER'S VERIFICATION
