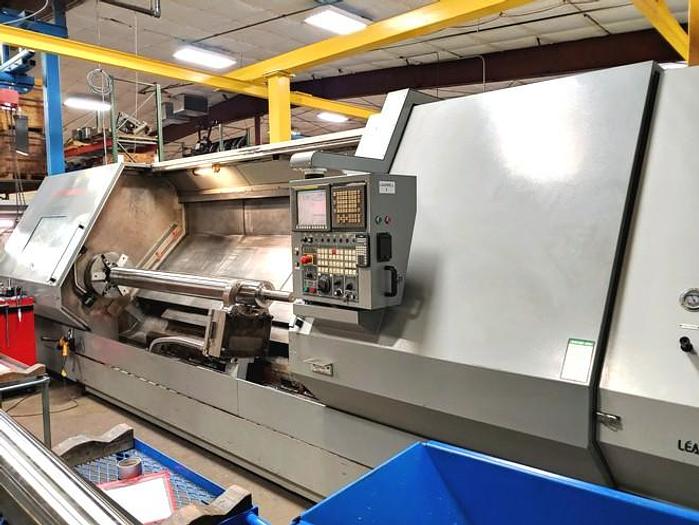

2007 LEADWELL LTC-50BXXL CNC TURNING CENTER 33.46 X 157
No longer available
2007 LEADWELL LTC-50BXXL CNC TURNING CENTER 33.46 X 157
Coffeyville, KS
Description
LEADWELL LTC-50BXXL CNC TURNING CENTER 33.46 X 157
YEAR 2007
STOCK# 103819
SPECIFICATIONS:
==========================================
SUBJECT TO VEDRIFICATION:
______________________________________________
Swing over bed:..........................33.46”
Max. turning diameter:.............. 31.5”
Max. turning length:................... 157”
Spindle bore:.............................. 4.6”
X Axis Travel:..............................15.7" + 1"
Z Axis Travel:..............................161.4"
Turret:....................................... 12 Station
Spindle Speed Max.:.................. 1500 RPM
Spindle Nose:............................ A2-11
Spindle Motor:.......................... 50 HP
Shank Height for Square Tool:... 1.26"
Shank Diameter Boring Bar:..... 1.9"
X Axis Rapid Traverse:............... 314.9 IPM
X/Z Axis Motors:....................... 5.4 hp. / 9.4 Hp.
Equipped With:
Fanuc Series Oi-TC CNC Control
Standard 15” 3-Jaw Chuck * Optional Chucks on Request
*Optional 20" Manual Chuck in Photos This Application!
Automatic Quick Tool Setter Installed on Machine
Coolant System
Side Discharge Lift Up Chip Conveyor
(1) Far 3-Point Self Centering Hydralic Steady Rest Installed on Machine
(1) SMW 3-Point Self Centering Steady Rests at shop in Stock with all Brackets & Connections for this Machine.
The Far 3-Point Steady Rest is Installed Closest to the Tail Stock is Programmable Tow-along Style
The (2nd) SMW-Autoblok 3-Point Sef Centering Rest Can Be Installed closest to the Chuck is a Manual Body
and Programmable M-Code Open/Close Operating System
(2) Complete Hydraulic Steady Rests are Included in Special Package Pricing.
Machine Size ( L x W xH ) 312" x 101" x 95.5"
Machine Weight:............ 22,000 Lbs.
Electrics Voltage 70 Kva
WWW.HABRORMACHINERY.COM
Specifications
Manufacturer | LEADWELL |
Model | LTC-50BXXL CNC TURNING CENTER 33.46 X 157 |
Year | 2007 |
Condition | Used |
Stock Number | 103819 |
