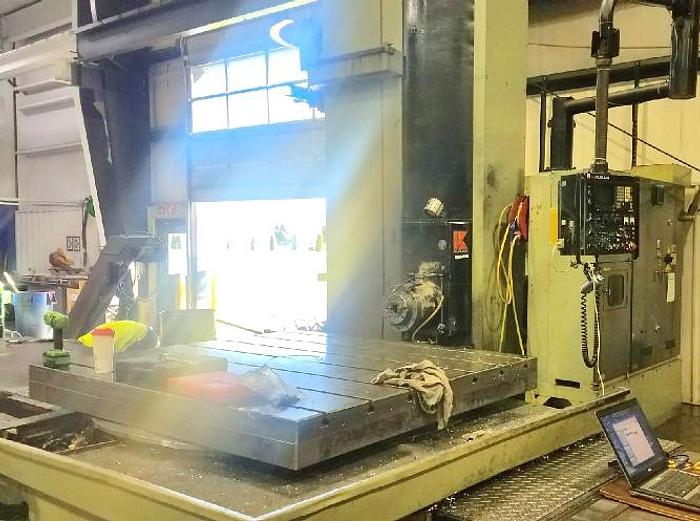

1990 KURAKI KBT-13-DX 5.1" CNC TABLE TYPE BORING MILL
No longer available
1990 KURAKI KBT-13-DX 5.1" CNC TABLE TYPE BORING MILL
Coffeyville, KS
Description
KURAKI KBT-13-DX 5.1" CNC TABLE TYPE BORING MILL
YEAR 1990
STOCK# 103825
SPECIFICATIONS:
============================================
SUBJECT TO VERIFICATION:
________________________________________________
Stroke
X axis travel (table longitudinal) mm (inch) 3000 (118.11)
Y axis travel (spindle vertical) mm (inch) 2000 (78.74)
Z axis travel (column cross) mm (inch) 1300 (51.18)
W axis travel (spindle axial) mm (inch) 700 (27.56)
Distance from table top to spindle center mm (inch) 0~2000 (0~78.74)
Distance from table center to spindle nose mm (inch) 700~2000 (27.56~
78.74)

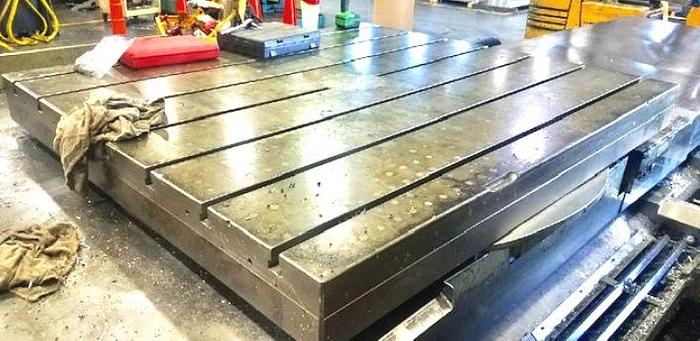

Table
Table work space mm (inch) 1800×2200 (70.87×86.61)
Table maximum loading capacity kg (lbs) 12000 (26400)
Table top profile mm (inch) 22 (0.87) 7T slots
Table auto.indexing ° 0.001(every 90°index. by locate pin)

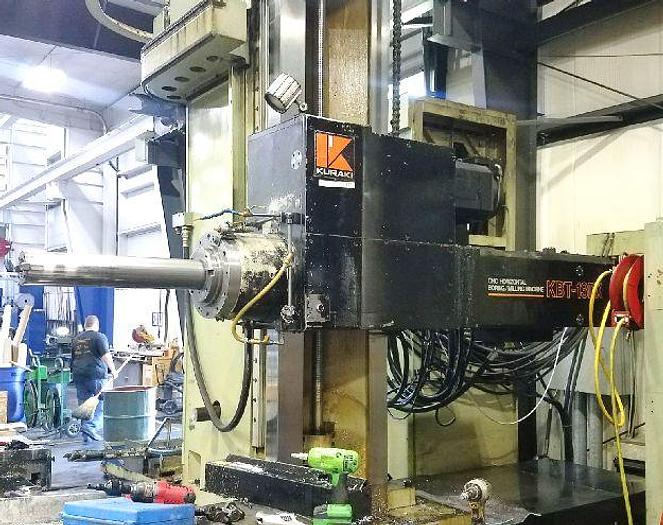

Spindle Head
Boring spindle diameter mm (inch) 130 (5.12)
Spindle speed(for every 1min-1) min-1 5~3000
Spindle speed change range step 3
Spindle taper BBT50(BIG-PLUS Dual contact spindle system) *
Feed
Rapid traverse (X・Y・Z) m (inch)/min 10 (393.70)
W) m (inch)/min 6 (236.22)
Feedrate mm (inch)/min 1~4000 (0.04~157.48)
Table revolution min-1 1.4

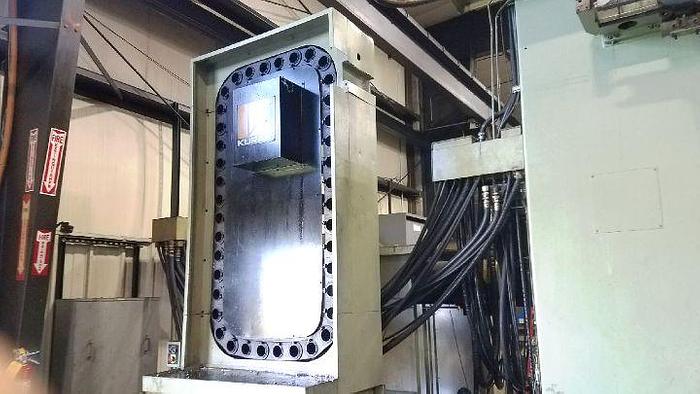

Automatic Tool Changer (ATC)
Tool shank MAS BT50(BBT50 BIG-PLUS Dual
contact spindle system *)
Pull stud MAS P50T-1(45°)
Tool storage capacity pc 40
Max. tool diameter [vacant adjacent pots] mm (inch) 125 (4.92)[240
(9.45)]
Max. tool length mm (inch) 400 (15.75)
Max. tool weight kg (lbs) 25 (55)
Tool selection At random
Motors
Spindle motor kW (HP) AC22(30)(30 min)/18.5(25)(cont.)
Feed motor kW (HP) X・Z:9.0(12.0)/Y・W:4.2(5.6)/B:
7.0(9.5)
Hydraulic motor kW (HP) 2.2(3.0)
Voltage
Power capacity(Not incl. opt) kVA 65
Air pressure source pressure MPa 0.5
Air pressure source flow (Not incl. opt) NL/min 400(atm)
Dimensions
Machine height mm (inch) 4800 (188.98)
Floor space (Not incl. opt) mm (inch) 6830×6800 (268.90×267.72)
Floor Space 20 Square Ft. 190" Tall
Machine weight(Incl. NC unit) kg (lbs) 36000 (79200)
WWW.HARBORMACHINERY.COM
231-526-9525
Specifications
Manufacturer | KURAKI |
Model | KBT-13-DX 5.1" CNC TABLE TYPE BORING MILL |
Year | 1990 |
Condition | Used |
Stock Number | 103825 |
