2011 DOOSAN PUMA DOOSAN PUMA 400LC WITH STEADY REST
No longer available
2011 DOOSAN PUMA DOOSAN PUMA 400LC WITH STEADY REST
Location:Coffeyville, KS
Description
DOOSAN PUMA DOOSAN PUMA 400LC WITH STEADY REST
YEAR 2011
STOCK# 103827
SPECIFICATIONS:
=========================================
SUBJECT TO VERIFICATION
_____________________________________________

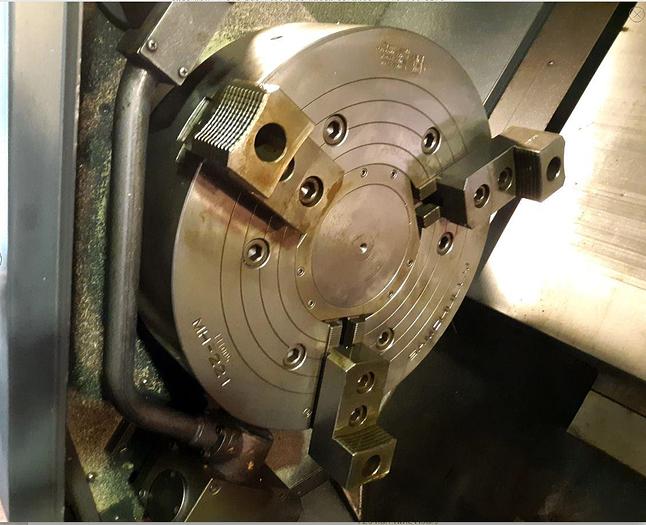

Chuck - 21" Hyd
Maximum Swing - 30.3"
Maximum Turning Diameter - 23.2"
Maximum Turning Length - 81.7"
Bar Capacity - 6.5"
X Axis Travel - 14.2"
Z Axis Travel - 84.8"
Spindle Motor - 50 HP
Spindle Speed - 1,500 RPM
Spindle Nose - A2-15"
Spindle Bore - 7.1"

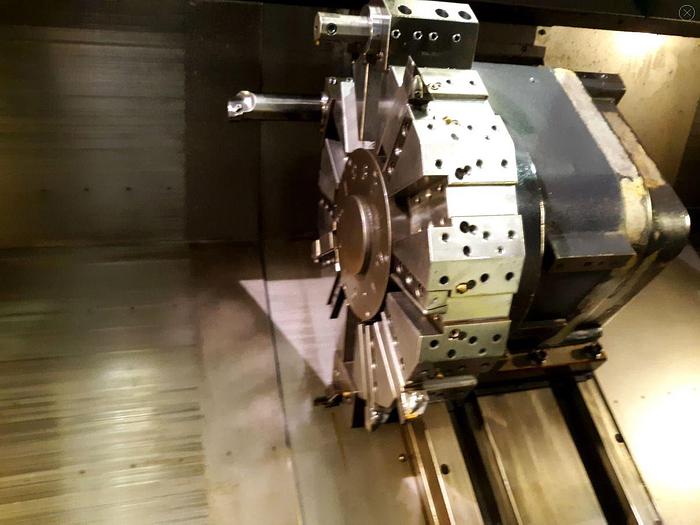

Turret - 10 Positions
Rapid Traverse Rates X, Z 630 IPM / 790 IPM
Tailstock Quill Diameter / Center 4.7" / MT # 5
Machine Dimensions 210" x 94" x 89"
Machine Weight ~25,500 lbs
EQUIPPED WITH
Chip Conveyor
Tool Setter
Tailstock

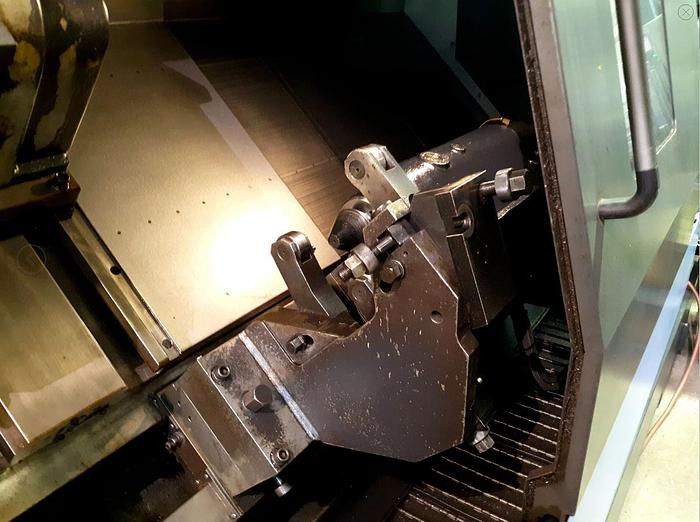

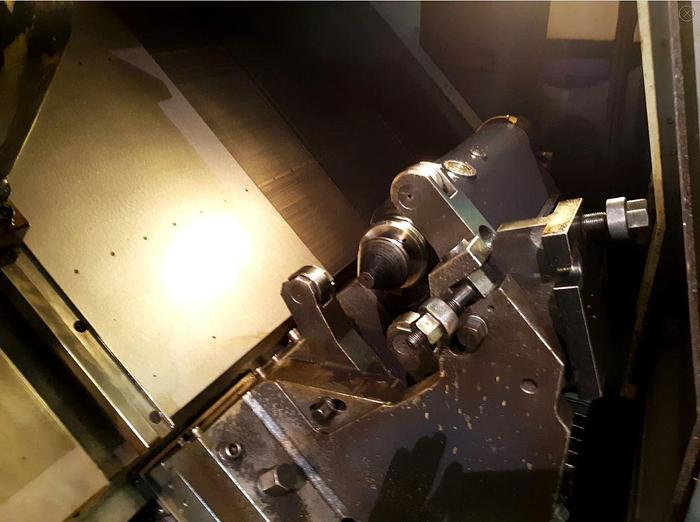

Steady Rest
726 Run Time Hours
WWW.HARBORMACHINERY.COM
231-526-9525
Specifications
| Manufacturer | DOOSAN PUMA |
| Model | DOOSAN PUMA 400LC WITH STEADY REST |
| Year | 2011 |
| Condition | Used |
| Stock Number | 103827 |
| Hours | 726 |
