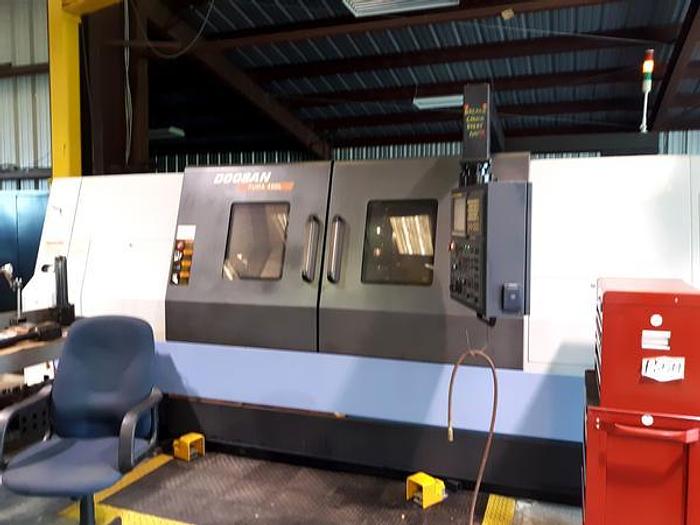

2012 DOOSAN PUMA DOOSAN PUMA 400 LC WITH STEADY REST

DOOSAN PUMA DOOSAN PUMA 400 LC WITH STEADY REST
YEAR 2012
STOCK# 103828

SPECIFICATIONS
====================================
SUBJCT TO VERIFICATION
_______________________________________

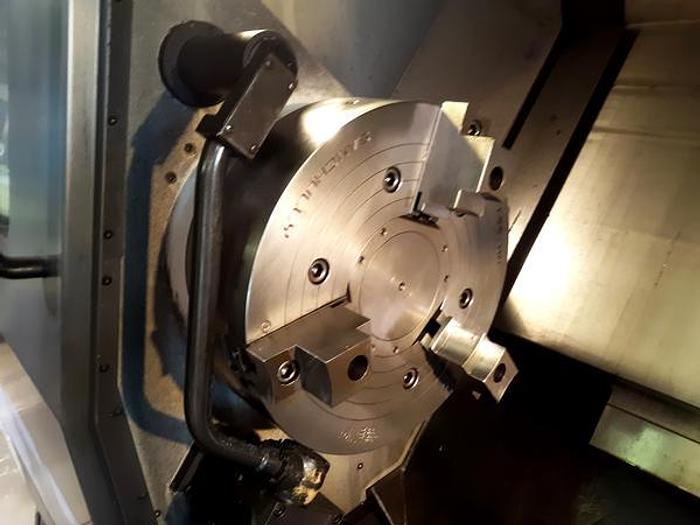

Chuck - 21" Hyd
Maximum Swing - 30.3"
Maximum Turning Diameter - 23.2"
Maximum Turning Length - 81.7"
Bar Capacity - 6.5"
X Axis Travel - 14.2"
Z Axis Travel - 84.8"
Spindle Motor - 50 HP
Spindle Speed - 1,500 RPM
Spindle Nose - A2-15"
Spindle Bore - 7.1"

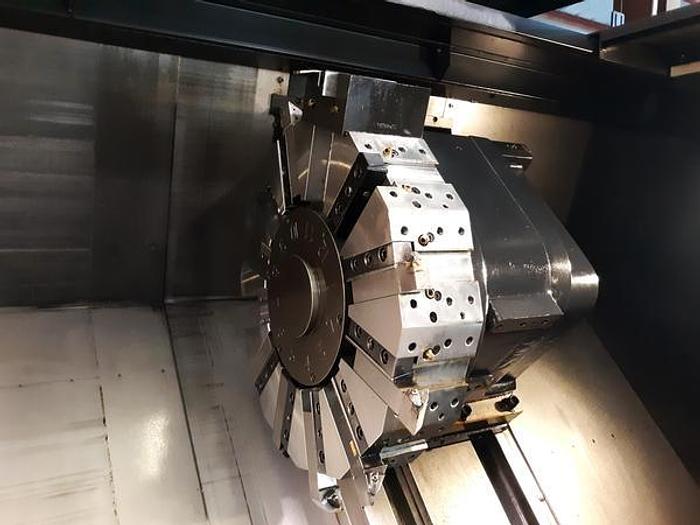

Turret - 10 Positions
Rapid Traverse Rates X, Z 630 IPM / 790 IPM
Tailstock Quill Diameter / Center 4.7" / MT # 5
Machine Dimensions 210" x 94" x 89"
Machine Weight ~25,500 lbs

EQUIPPED WITH

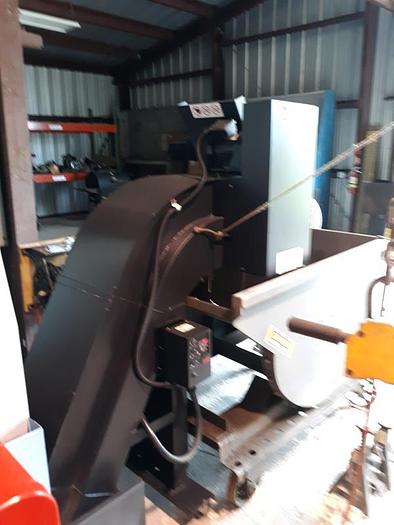

Chip Conveyor
Tool Setter
Tailstock

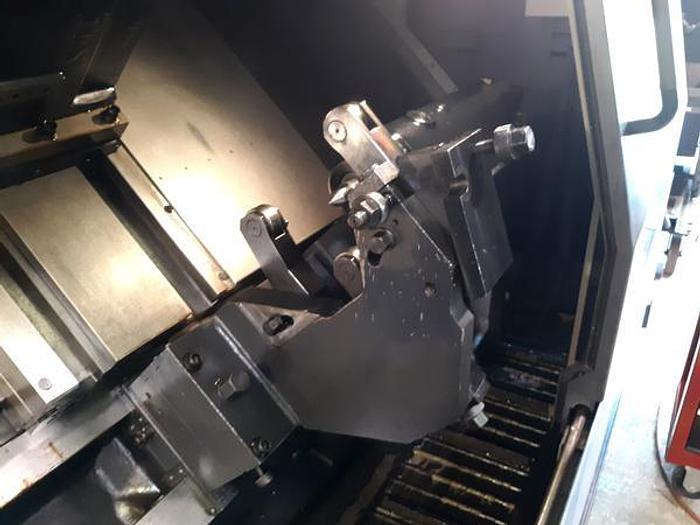

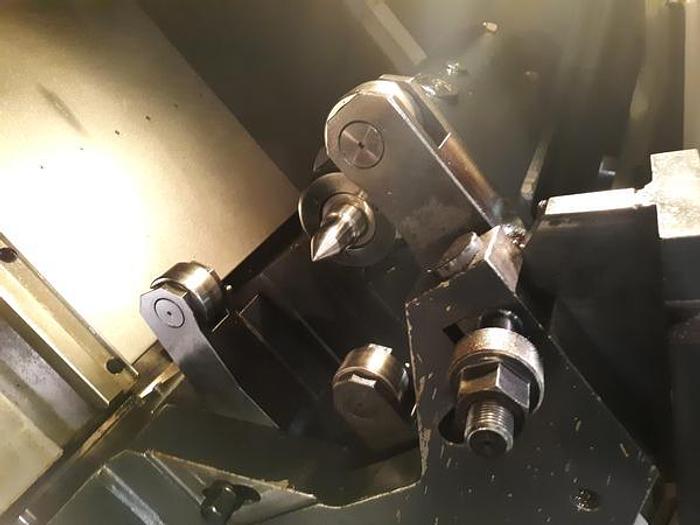

Steady Rest
High Pressure Coolant

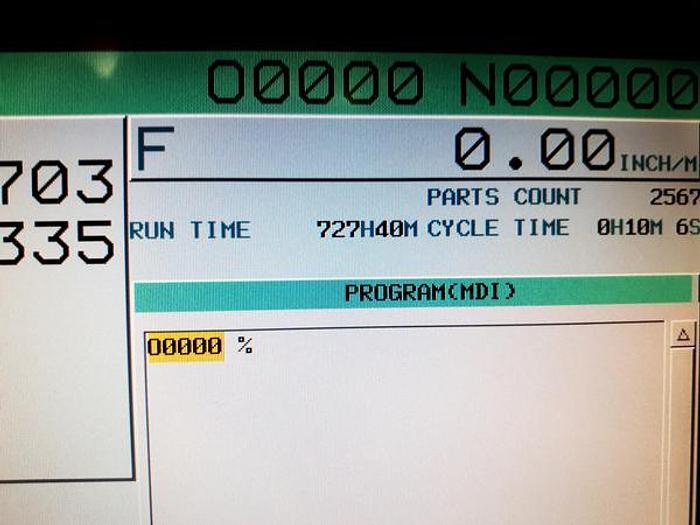

750 Run Time Hours
