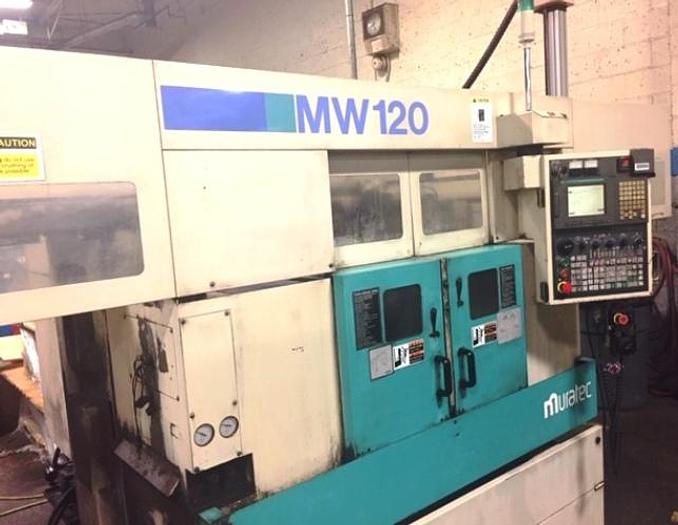

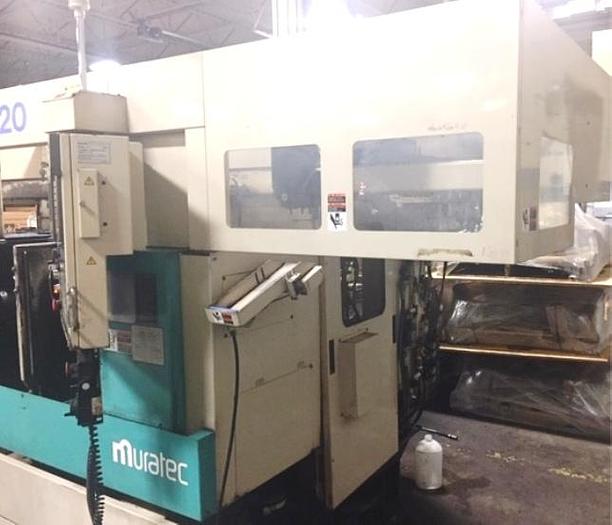

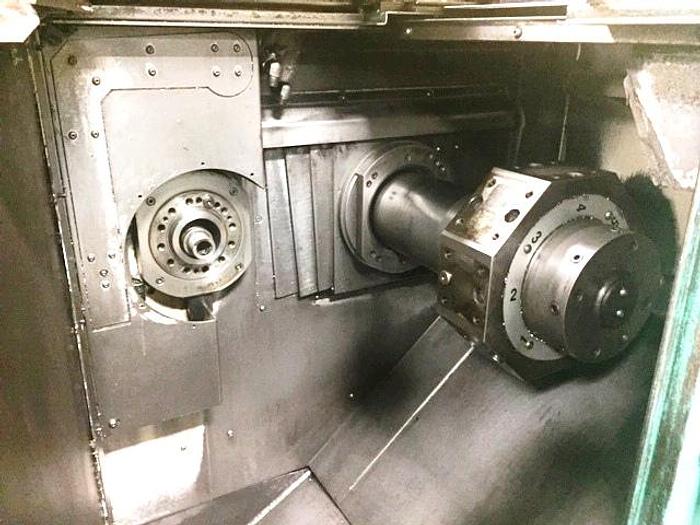

2005 MURATEC MURATA MW120G TWIN SPINDLE WITH SINGLE GANTRY CNC LATHE

2005 MURATEC MURATA MW120G TWIN SPINDLE WITH SINGLE GANTRY CNC LATHE

Contact us for price

Almont, MI

orCall 1-231-526-7135 fax

Description

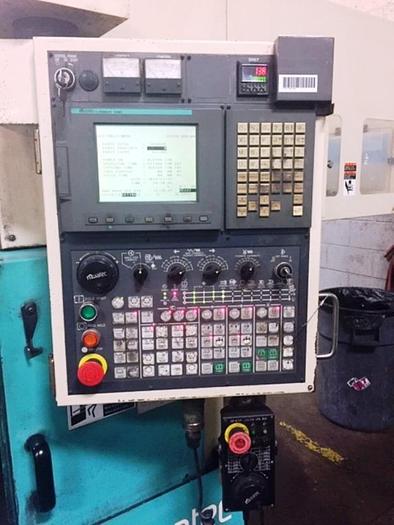

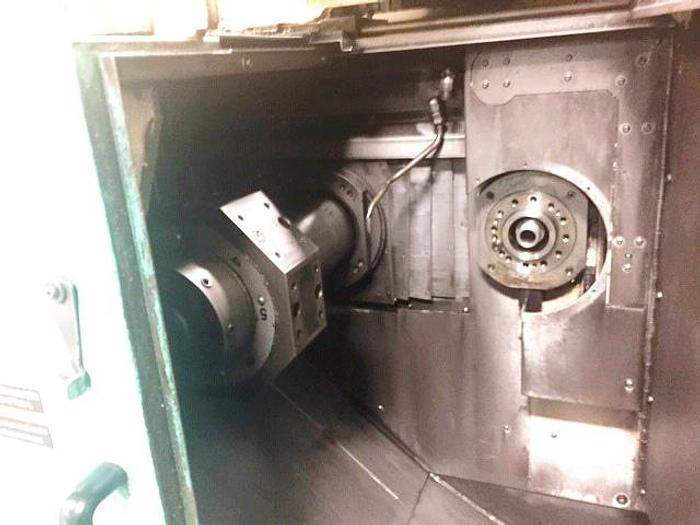

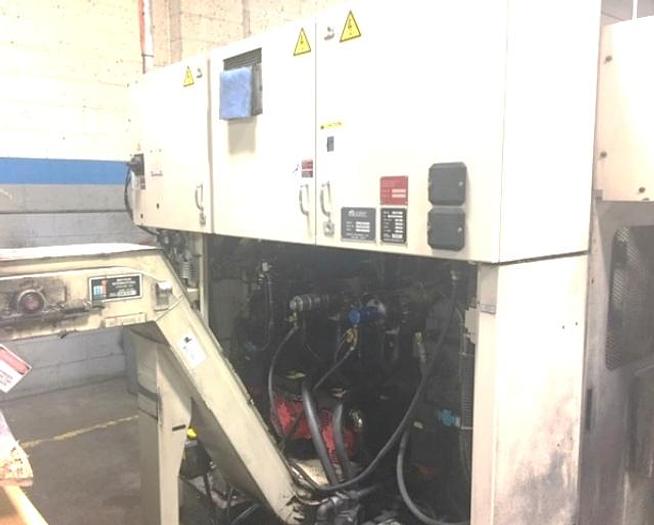

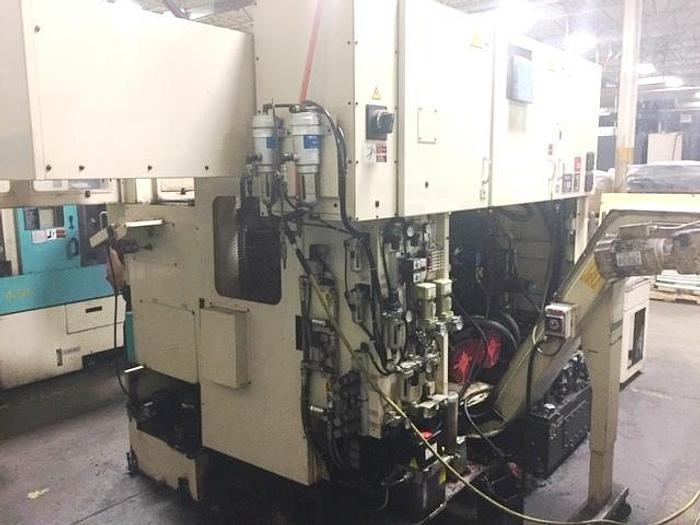

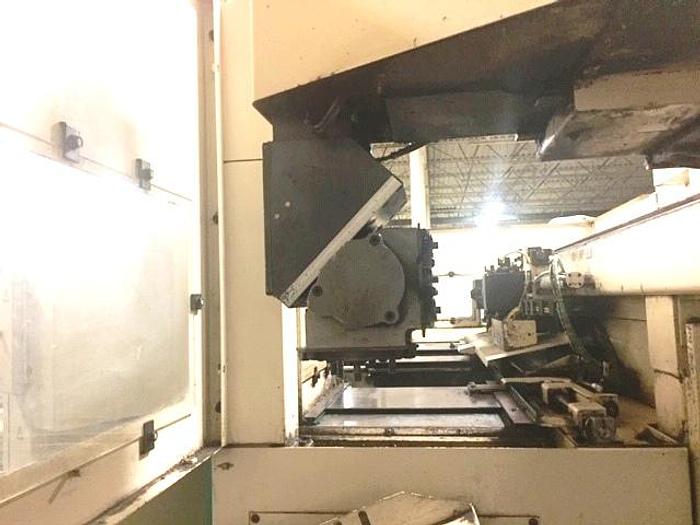

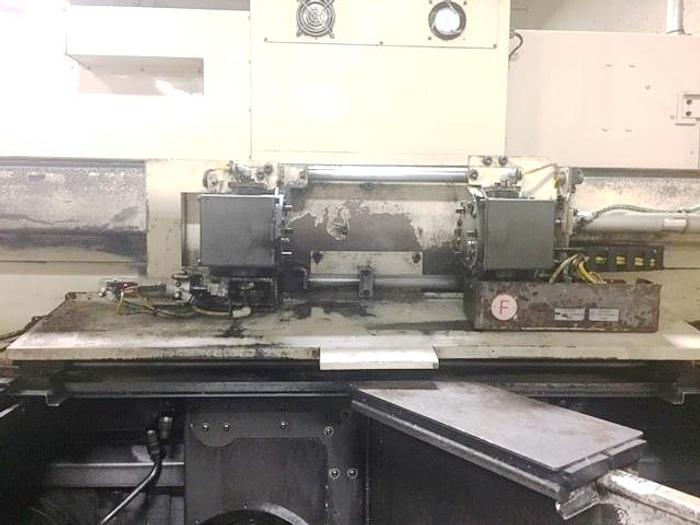

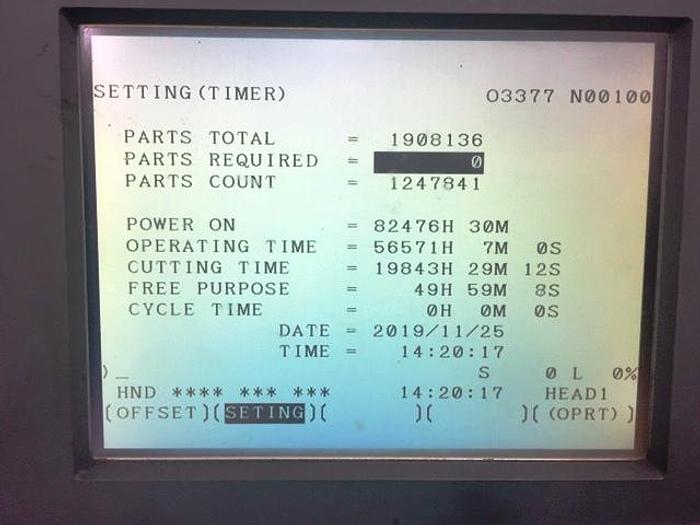

MURATEC MURATA MW120G TWIN SPINDLE WITH SINGLE GANTRY CNC LATHE YEAR 2005 STOCK# 103835 Main Specifications Distance Between Spindles: 13.39" Max. Swing: 11.61" Standard Chuck Size: 6/8" Turning Diameters: 4.72" Nominal, 9.440" Max. Turning Lengths: 3.150" Nominal, 3.94" Max. Number of Turret Stations: 8 X-Axis: 5.12" Stroke, 945 IPM Traverse Rate Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate Rapid Traverse Rate (X & Z Axis): 78.78 FPM Spindle Speeds: 45 - 4500 RPM Spindle Noses: A2-5, Bore 1.850" Spindle Drive Motors: 15 HP Tool Shank Size: 0.75" Square, 1.570" Round Approx. Weight w/Loader: 11,800 lbs. Floor Space: L 139.37" x w 136.22" Loader Specifications: X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM Y-Axis Stroke: 19.09", Max. Speed: 361 FPM Z-Axis Stroke: 6.1", Max. Speed: 115 FPM a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg. Load/Unload Grippers: Outer Diameter: 3.54", Jaw Stroke: 1.18" Max. Workpiece Weight: 8 lb x 2 Equipped with: Fanuc 18T CNC Control, Overhead Gantry Loader, Rear Chip Conveyor, 14 Pallet Stocker Feeder Table, Coolant Tank and Pump, All Book & Manuals RIGGING PROVIDED BY BUYER

Specifications

ManufacturerMURATEC
ModelMURATA MW120G TWIN SPINDLE WITH SINGLE GANTRY CNC LATHE
Year2005
ConditionUsed
Stock Number103835
