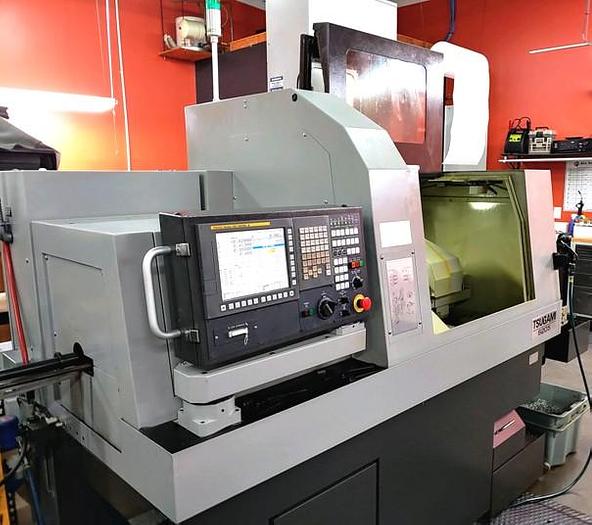

2015 TSUGAMI S-205 CNC 6 AXIS SWISS-TURN WITH LIVE MILLING

Contact us for price

Almont, MI

orCall 1-231-526-7135 fax

Description

TSUGAMI S-205 CNC 6 AXIS SWISS-TURN WITH LIVE MILLING
YEAR 2015
STOCK# 103909

Special Features:
============================================
Maximum Bar Stock 20 mm
Number of # Axes 6
Sliding Head stock / Guide Bushing
CONVERTIBLE: Run w/o Guide Bushing (Chucker)
Max Length: with Guide Bushing Max Length: 9.84"
w/o Guide Bushing 45 mm, 1.77”
Number # Tool Positions (std / max) 28 / 39
Number # Live Tool Positions (std / max) 15
Main Spindle Speed 200 – 12,000 rpm
Sub Spindle Speed 200 – 12,000 rpm
Live Tool Speed 8,000 rpm
Main Spindle Motor 2.2 / 3.7 kW
Weight 7,275 lbs., 3,300 kg
Footprint: W x D x H 83” x 47.2” x 74.2”
Cross Milling Spindle
Back Cross Milling Spindle
Back Tool Adapter
Work Catcher

Equipped With:
12 Ft. FMB Mini Mag 20 (2) Channel Sets Sliding Headstock Magazine Barfeed
MP 2000 PSI Interfaced High Pressure Coolant System
Tri-Mist Oil Air Filtration Unit. $3,950 New Cost.
Conversion Kit for Chucker Set Up Operation.
Parts Catcher with Parts Conveyor
8-port High Pressure Coolant System

8 Turning Tool Positions
5 Cross Live Tool Positions
5 Front ID. 9 Back ID.

Includes all Tooling & Tool holder's.

Key Advantages:

Modular Tool Zone uses cartridge-type live tools, up to 15 – 8,000 rpm tools
Y-axis Tool Post delivers simultaneous complex machining of main / back
spindle, Direct Drive Rotary Guide Bushing provides high speed and accurate machining
Deep Hole Drilling Post enables up to 100 mm drilling, High Rigidity Bed
enables high-speed, high-accuracy performance with The Fanuc 32i-B CNC Control

The Tsugami S205 CNC Lathe is CONVERTIBLE and may be run as a traditional
sliding headstock Swiss Turn using the guide bushing or run without the
guide bushing with the addition of an optional Chucker kit. When run as a
“chucker” the CNC Lathe can use drawn bar stock instead of center less ground stock,
dramatically reducing remnant size and increasing shop flexibility.

Specifications

ManufacturerTSUGAMI
ModelS-205 CNC 6 AXIS SWISS-TURN WITH LIVE MILLING
Year2015
ConditionUsed
Stock Number103909
