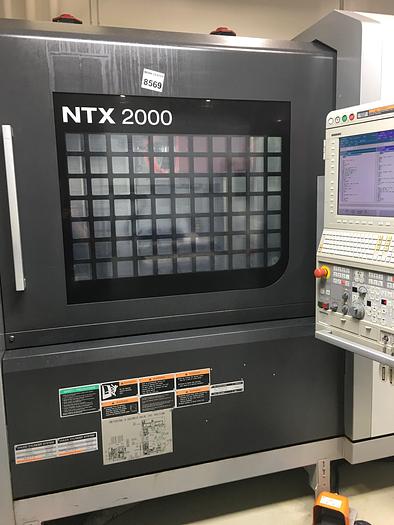

2014 MORI SEIKI NTX2000/1500SZ_F31B5 MULTI AXIS CNC LATHE

Contact us for price

Harbor Springs, MI

orCall 1-231-526-7135 fax

Description

MORI SEIKI NTX2000/1500SZ_F31B5 MULTI AXIS CNC LATHE
YEAR 2014
STOCK# 103910

Specifications:
=====================================================
SUBJECT TO VERIFICATION:
__________________________________________________________
SWING OVER CROSS SLIDE ……………………. 27.5″
MAX. TURNING LENGTH ………………………. 60.6″
MAIN SPINDLE …………………………….. 5,000 RPM
MAX. DRAW TUBE INNER DIAMETER ……………… 3.21″
COUNTER SPINDLE OPTION
INTEGRATED SPINDLE MOTOR WITH C-AXIS 0.0001 DEG – 5,000 RPM
OUTPUT POWER-ON TIME ……………………… 24.8 HP
MAX. ROTATIONAL SPEED OF THE WORKING SPINDLE … 10,000 RPM
TAPER HOLE OF ROTARY TOOL SPINDLE ………….. CAPTO C6
B-AXIS SWIVEL RANGE ………………………. +- 120 DEG
TOOL MAGAZINE CAPACITY ……………………. 40 TOOLS
MAX. TOOL DIAMETER ……………………….. 4.9″
X-AXIS TRAVEL ……………………………. 19.5″
Y-AXIS TRAVEL ……………………………. 4.9″
Z-AXIS TRAVEL ……………………………. 61.4″
X2-AXIS TRAVEL …………………………… 6.3″
Z2-AXIS TRAVEL …………………………… 55.2″

EQUIPPED WITH:
FANUC CONTROL 31iB
HIGH TORQUE SPINDLE (SPINDLE 1)
HIGH TORQUE SPINDLE (SPINDLE 2)
KITAGAWA 8" CHUCK (SPINDLE 1)
KITAGAWA 8" CHUCK (SPINDLE 2)
TOOL STORAGE 76 TOOLS CAPTO C6
SUPER HIGH PRESSURE COOLANT I/F
CHIP CONVEYOR RH HINGE TYPE
BAR FEEDER I/F (LNS MULTIPLE)
SIGNAL TOWER 3 LAYERS
5 EXTERNAL M-CODES
SPINDLE 1 HOBBING FUNCTION
CAPTO C6
DMSQP - CHIPBLASTER D30/70 P/N MSD30/70NTX2000
DMSQP - PART PROGRAM STORAGE 1MB P/N A02B-0326-R177
DMSQP - NUMBER OF REG. PROG. EXP. P/N A02B-0326-R191
P&D PROGRAMMING RESOLUTION BY 1/10 SAAOPNTX2001101
MANUAL SET - P/N MORIMANUALE
P&D ELECTRICAL CIRCUIT DIAGRAMS P/N I48568C04
P&D - STANDARD LADDER FOR 31iB - I81799A50
RENISHAW OMP60 PROBE BY NCS

Specifications

ManufacturerMORI SEIKI
ModelNTX2000/1500SZ_F31B5 MULTI AXIS CNC LATHE
Year2014
ConditionUsed
Stock Number103910
