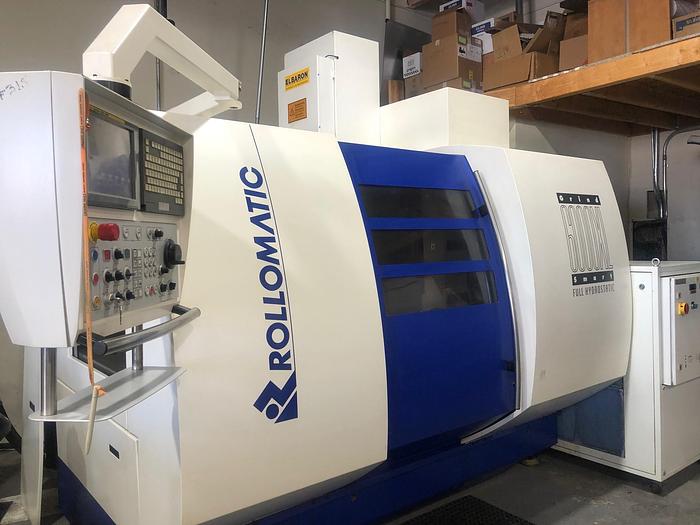

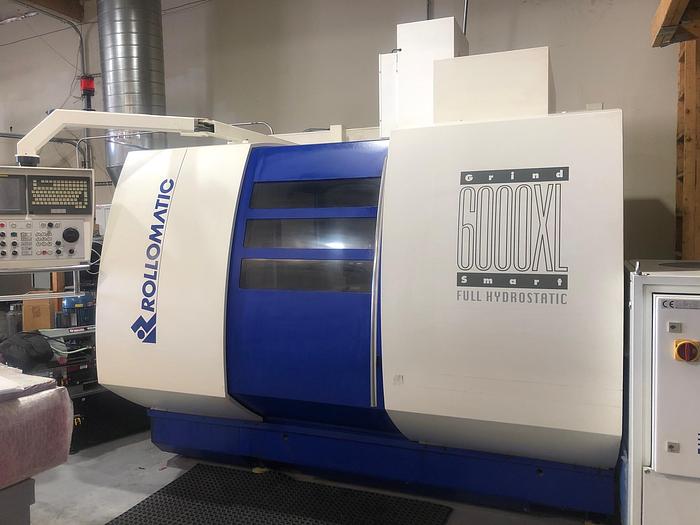

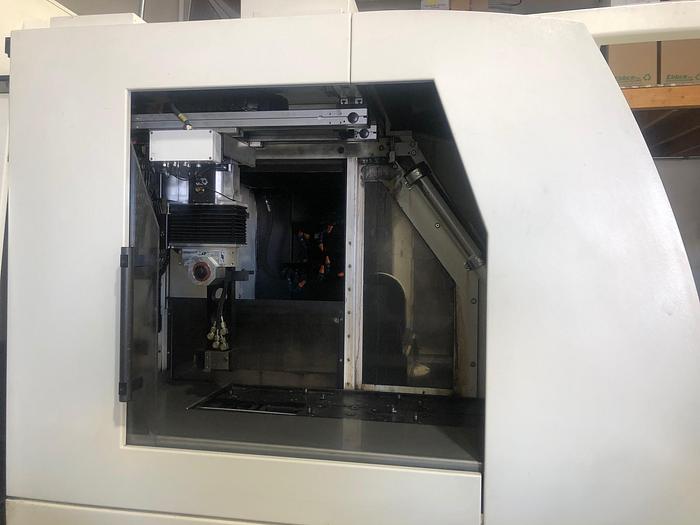

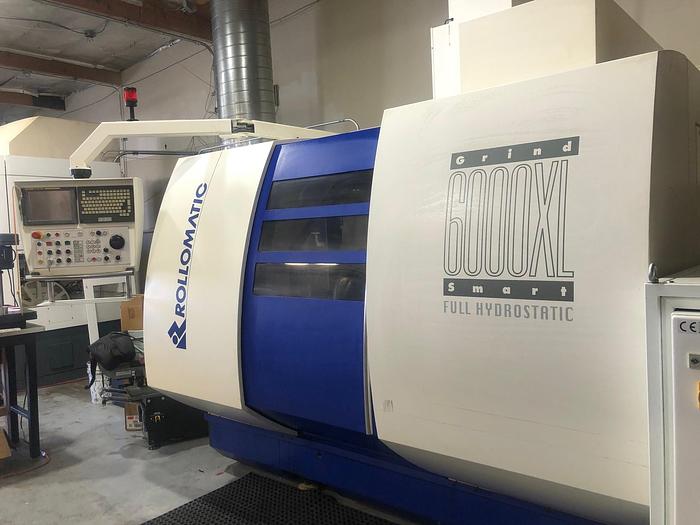

ROLLOMATIC 6000XL 9 AXIS CNC GRINDER
STOCK#103911

Super Precision Tool Grinding Center with 9-axis CNC
control FANUC 160-iMB (6 machine axes and 3 loader axes)

For the production grinding of rotary cutting tools such as endmills, drills,
step tools, reamers, burs, routers, medical tools as well as special
applications in carbide, HSS and similar materials.

Specifcations:
==================================================
Part No. Qty Description
6000 1 Basic machine including standard equipment

Technical Data:
X-axis
Linear hydrostatic, longitudinal axis
Stroke 280 mm ( 11")
Resolution 0.0001 mm (.000004")
Fast travel 20 m/min. (787"/min.)
Linear glass scale 0.0001 mm
Y-axis Linear hydrostatic, vertical axis
Stroke 245 mm (9.5")
Resolution 0.0001 mm (.000004")
Fast travel 15 m/min. (590"/min.)
Linear glass scale 0.0001 mm
Z-axis Linear hydrostatic, cross axis
Stroke 355 mm (14")
Resolution 0.0001 mm (.000004")
Fast travel 20 m/min. (787"/min.)
Linear glass scale 0.0001 mm


A-axis rotary hydrostatic, grinding head rotation
Stroke 240°
Resolution 0.0001°
Fast travel 60 rpm (1 sec. for 180°)
Rotary glass scale 0.0001°
B-axis rotary hydrostatic, workhead rotation
Stroke neg. 45° to pos. 135° (180°)
Resolution 0.0001° direct drive
Fast travel 60 rpm
Rotary glass scale 0.0001°
C-axis rotary hydrostatic, tool rotation
Stroke endless
Resolution 0.0001°
Fast travel 550 rpm
Encoder rotary encoder on AC motor, 0.0001°

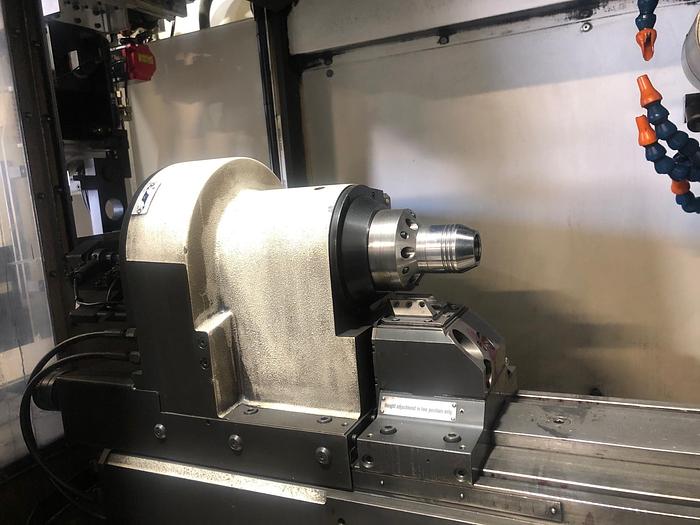

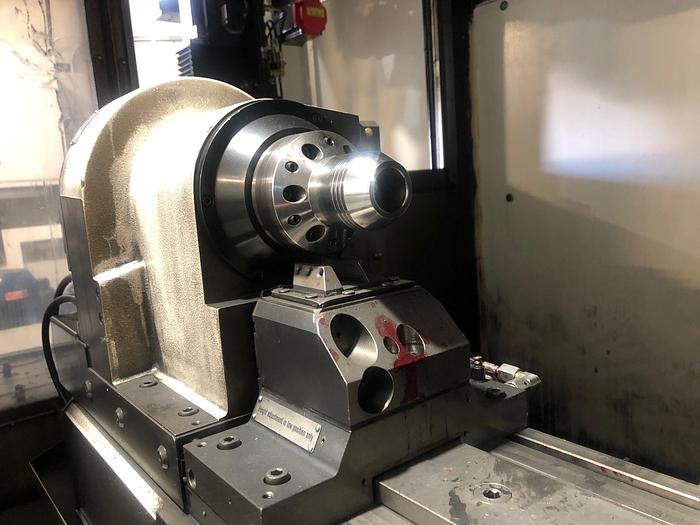

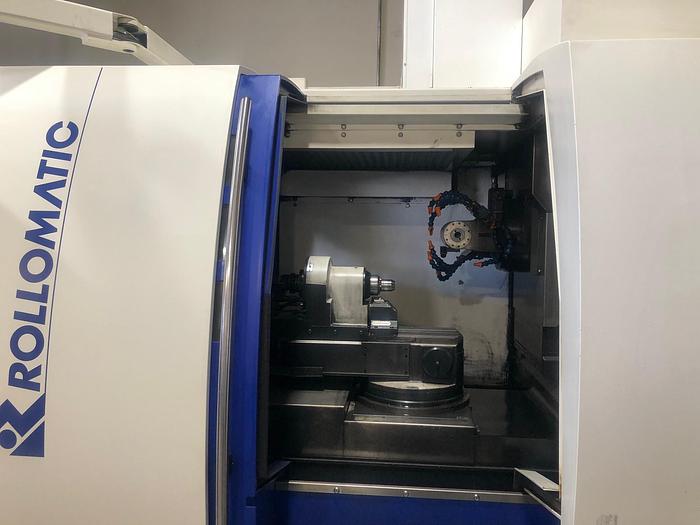

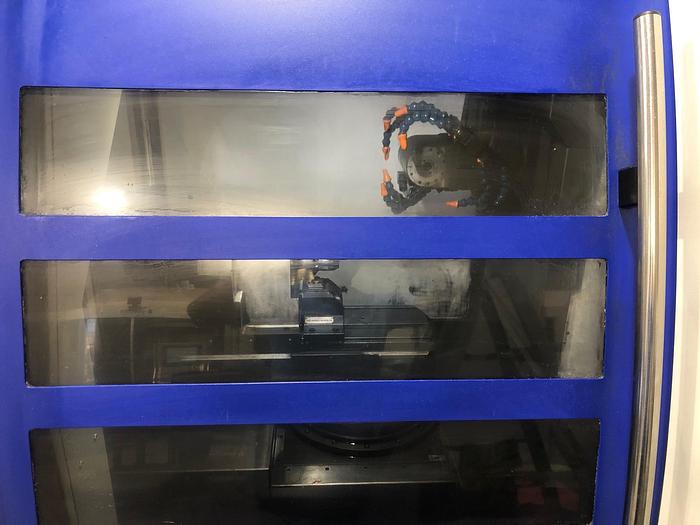

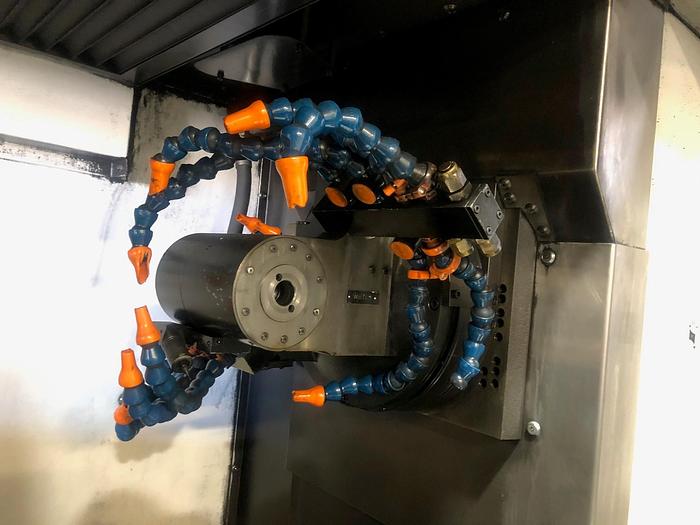

Workhead:
- Hydrostatic tool rotation
- Collet system W31.75
- Clamping capacity 32 mm (1.1/4")
- Grinding range 3 - 32 mm 1/8" - 1.1/4"
- Cylindrical grinding capability 550 rpm
- Hydraulic clamping with hydraulic ejector rod
- Super precision V-block shank guide hydraulic, with V or half-moon guides
- Super precision steady rest hydraulic, with V or half-moon rests
(mounted on air pads for ease of adjustment)

Grinding Head:
- Hydrostatic grinding spindle
- Grinding motor 20 kW 28 HP
with internal cooling
- Spindle speed up to 8,000 RPM
- Double-ended spindle
- Max. dia. of wheels dia. 200 mm (8")
- Max. number of wheels (total) up to 8
- Graphic display of load meter with 2 alarm levels.

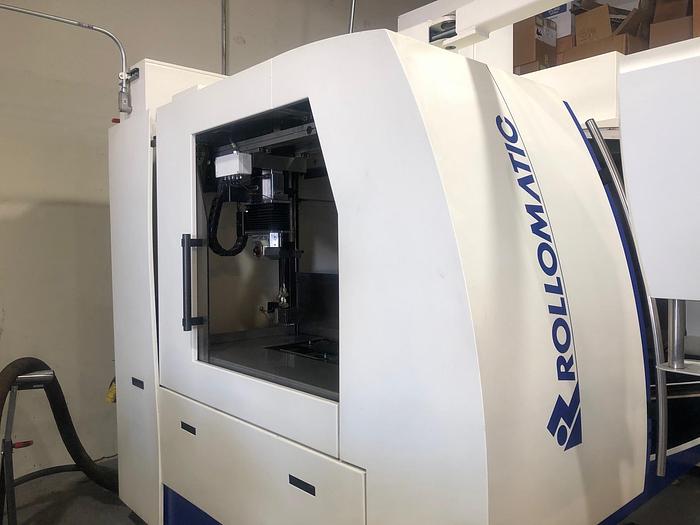

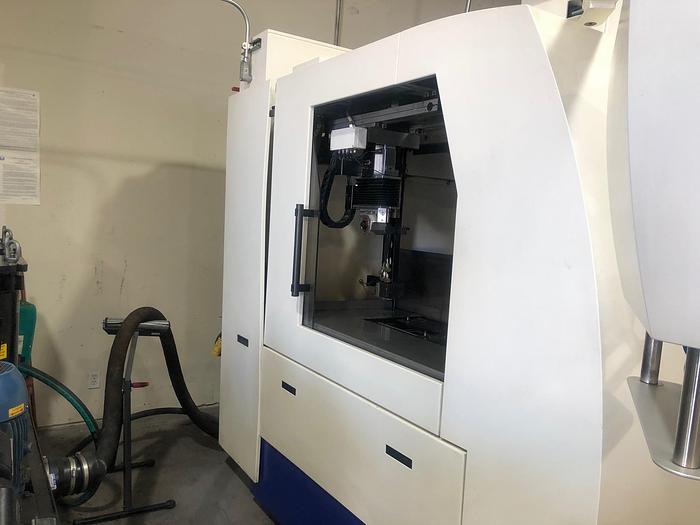

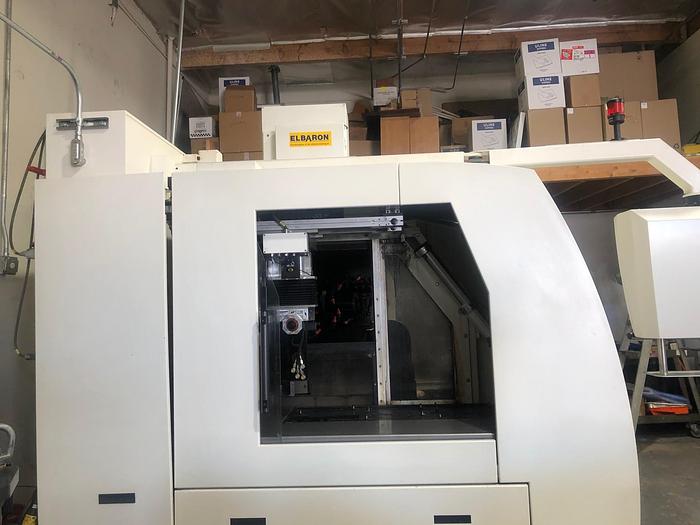

Automatic Loader:
- Shank dia. 1 - 12.7 mm .04" - .5"
- Max. overall length 300 mm(12")
- Speed: 65 m/min. (2,560"/min.)
- Clamping hydraulic
- Including automatic pallet changer with up to 4 cassettes


Control System:

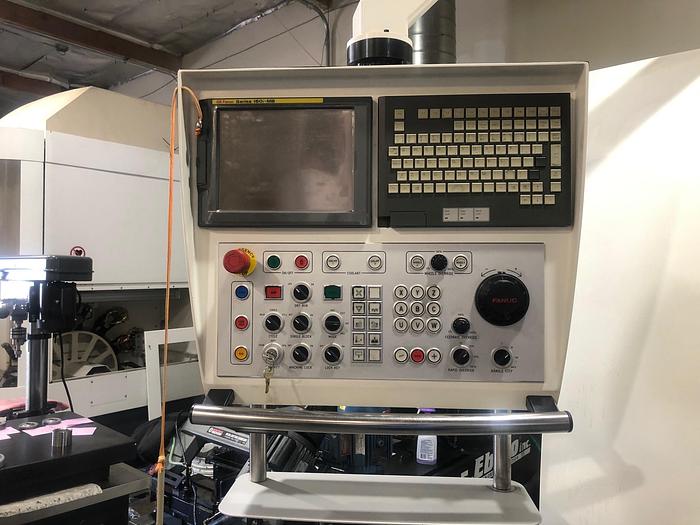

- Machine control FANUC 160-iMB 9-axis
Interface FANUC/PC including Windows 2000

Rollomatic Software:
Grinding: Endmills, ballnose and radius endmills
Taper tools, ballnose and radius taper endmills
Drills/step drills, step tools
Burs (industrial, aluminum-cut, surgical, dental)
Routers
Medical/surgical components

Simulation: VirtualGrind PC programming system/simulation
FluteCalc 2-D simulation of flute shapes
3DCalc 3-D simulation of any tools
BurCalc 2-D and 3-D simulation of burs
TaperCalc 2-D and 3D simulation of tapered tools

ISO programming using Rollomatic co-ordinate system, incl. 3-D simulation
Probing routines (flutes and coolant holes)
Teach-in (wheel shapes and machine calibrations)
Graphic wheel display with zero offsets
Various control diagnostics

Other Data:
Electrical equipment 3 x440/480V 60Hz, (alternate voltage at extra cost)
Paint finish Blue RAL5002 White RAL9010
Weight 20,000 lbs
Power consumption 55 kW

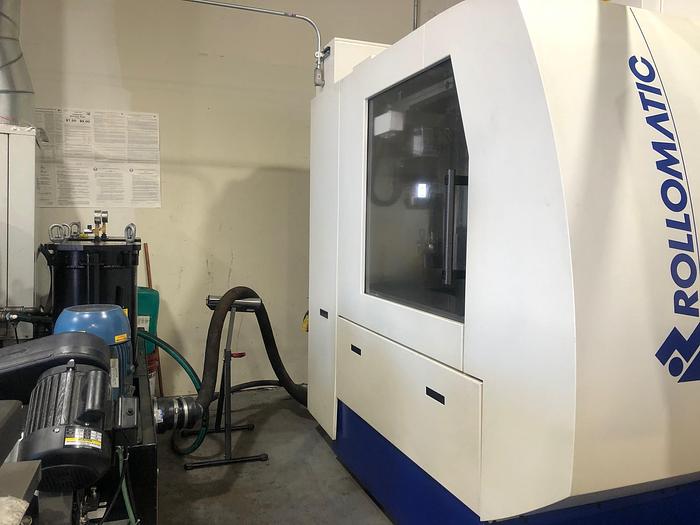

Coolant Equipment for In-Coming Oil:
- Flow meter to monitor the coolant flow
- Pressure meter to monitor the coolant pressure

Coolant Equipment for Out-Going Oil:
- Integrated coolant tank for discharge of coolant with level control
and discharge pump 200 liter/min. (55 gal/min.)

Hydrostatic System:
Oil chiller to regulate and control the temperature of the
hydrostatic oil

List of tooling included:
Cost of tooling alone: $95,000

W 31.75 Collet Spindle Adapter 2
Collet 31.75 Extended Nose 3/8" 1
Collet 31.75 Extended Nose 1/2" 2
Collet 31.75 UP 1/2" 1
Collet 31.75 UP 9/16" 1
Collet 31.75 UP 5/8" 2
Collet 31.75 UP 3/4" 1
Collet 31.75 UP 1" 2
Collet 31.75 UP 10mm 2
Collet 31.75 UP 12mm 3
Collet 31.75 UP 14mm 1
Collet 31.75 UP 16mm 2
Collet 31.75 UP18mm 2
Collet 31.75 UP 20mm 1
Collet 31.75 UP 25mm 3
Adapter for Centering V Block 10-20mm 1
Centering V Block MD 20mm Rect for 8-12mm 1
Centering V Block MD 20mm Rect for 12-19.5mm 2
Centering V Block MD 20mm Rect for 18-25.4mm 1
Centering V Block MD 20mm Rect for 25-32mm 1
Pressure Finger for V Centering 10mm left 3
Pressure Finger for V Centering 20mm left 4
Pressure Finger for V Centering 10mm right 3
Pressure Finger for V Centering 20mm left 4
Movable Robot Gripper V 10mm right 1
Movable Robot Gripper V 10mm left 1
Movable Robot Gripper V 20mm right 2
Movable Robot Gripper V 20mm left 2
Fixed Robot Gripper 20mm 3
Steady Rest U MD 25mm rect. D 8mm 2
Steady Rest U MD 25mm rect. D 10mm 2
Steady Rest U MD 25mm rect. D 12mm 2
Steady Rest U MD 25mm rect. D 18mm 1
Steady Rest U MD 25mm rect. D 16mm 2
Steady Rest U MD 25mm rect. D 20mm 2
Steady Rest U MD 25mm rect. D 25mm 1
Steady Rest U MD 25mm rect. D 1" 2
Steady Rest U MD 25mm rect. D 3/8" 1
Steady Rest U MD 25mm rect. D 1/2" 2
Steady Rest U MD 25mm rect. D 5/8" 2
Steady Rest U MD 25mm rect. D 3/4" 2
Intermediate Sleeve for Schunk d. 25.4 Internal d. 8mm 1
Intermediate Sleeve for Schunk d. 25.4 Internal d. 10mm 1
Intermediate Sleeve for Schunk d. 25.4 Internal d. 12mm 1
Intermediate Sleeve for Schunk d. 25.4 Internal d. 16mm 1
Intermediate Sleeve for Schunk d. 25.4 Internal d. 18mm 1
Intermediate Sleeve for Schunk d. 25.4 Internal d. 20mm 1
Intermediate Sleeve for Schunk d. 25.4 Internal d. 3/8" 1
Intermediate Sleeve for Schunk d. 25.4 Internal d. 1/2" 3
Intermediate Sleeve for Schunk d. 25.4 Internal d. 5/8" 1
Intermediate Sleeve for Schunk d. 25.4 Internal d. 3/4" 1
Wrench for Intermediate Sleeve Extraction 1
Wheel Arbor d. 40 x 60mm 14
Wheel Arbor d. 40 x 100mm 7
Wheel Arbor d. 40 x 130mm 6
