2012 LINCOLN ELECTRIC SYSTEM 20 MIG WELDING CELL WITH FANUC ARCMATE 100IC ROBOT AND R30iB CONTROLLER

Contact us for price

Almont, MI

orCall 1-231-526-7135 fax

Description

USED LINCOLN ELECTRIC SYSTEM 20 A/B SIDED INDEX TABLE MIG WELDING CELL
WITH FANUC ARCMATE 100iC ROBOT AND R30iB CONTROLLER

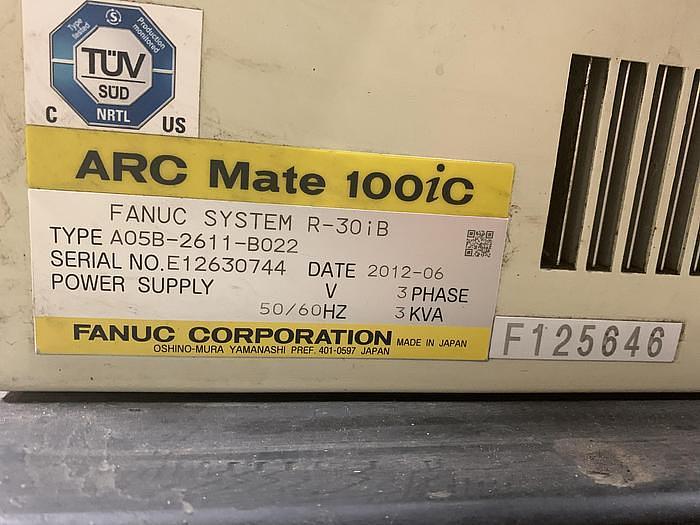

ROBOT SERIAL NUMBER F125646
TYPE A05B-1221-B401
DATE OF MFG. 07/2012
STK#103912

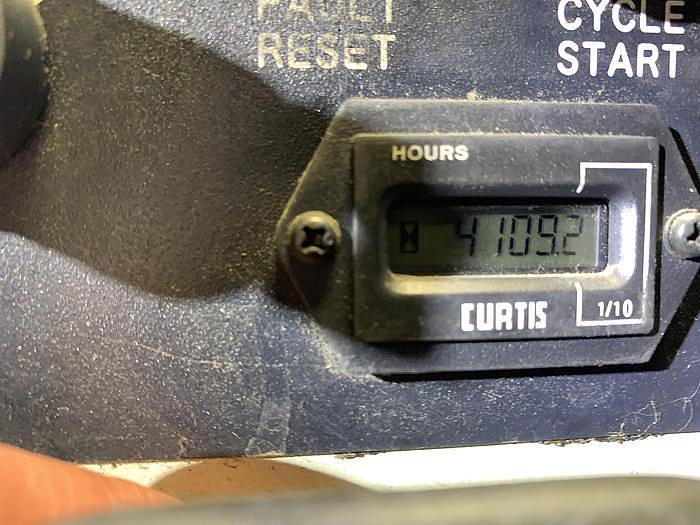

HOURS SHOWN ON METER 4,109
=======================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

HOURS SHOWN ON METER 4,109

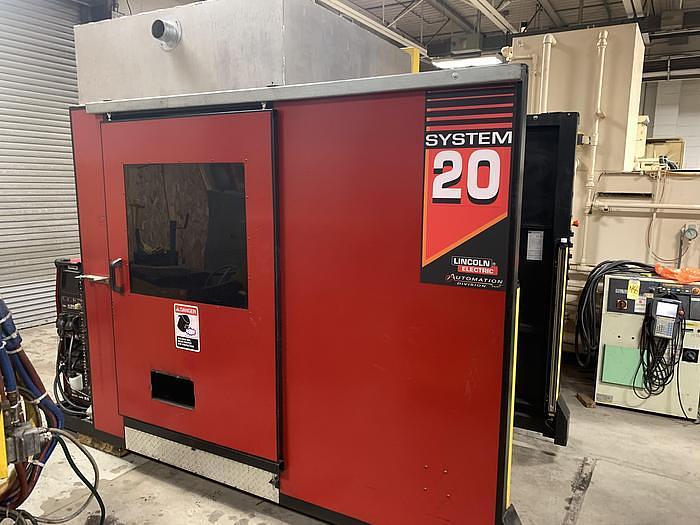

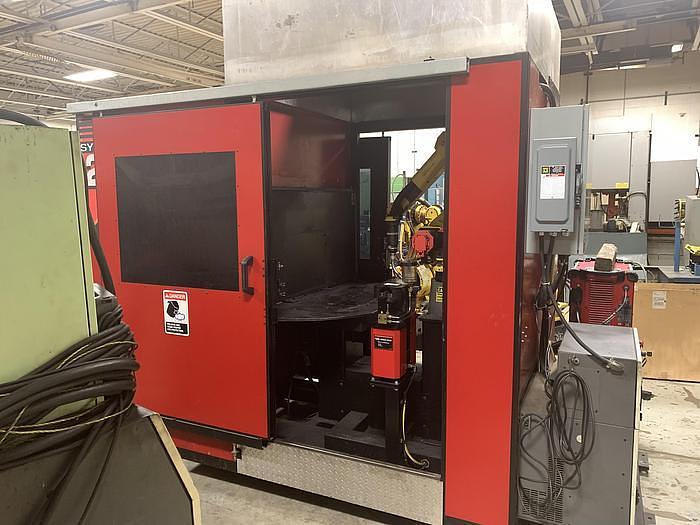

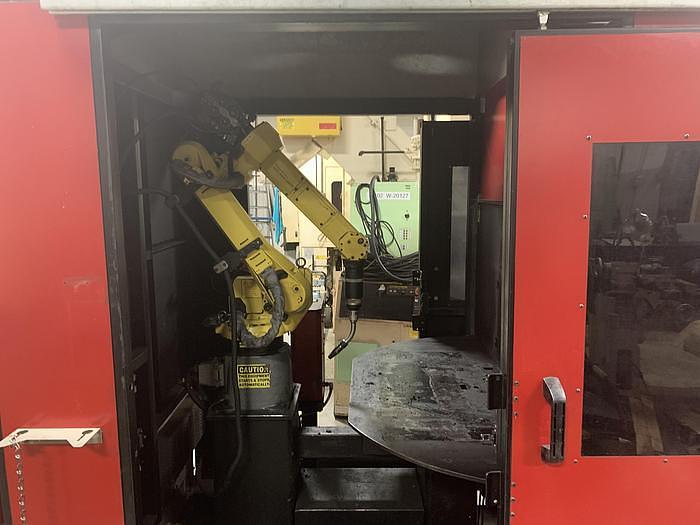

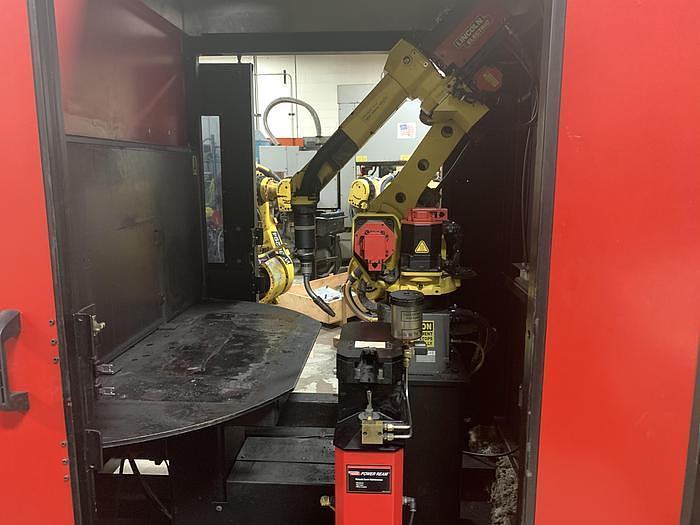

This is a completely enclosed on common base robotic mig welding cell equipped with A/B sided Index table.
The unit can easily be relocated inside your plant.
Table diameter 58"
Distance wall to outer edge of table is 26"
Table load capacity

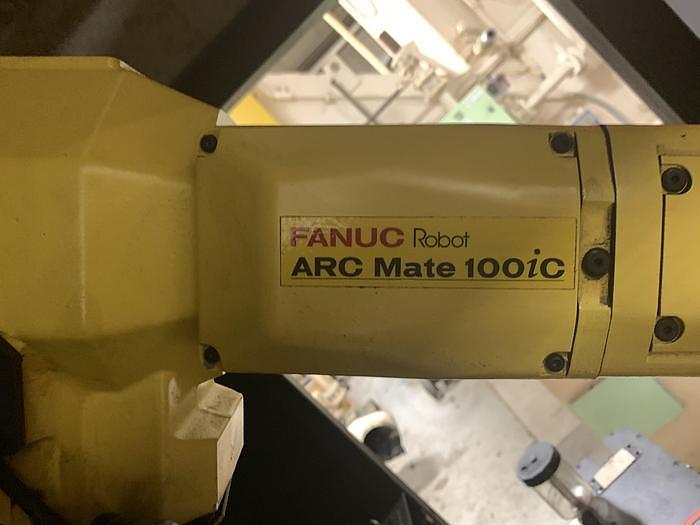

This FANUC ARC Mate 100iC is a 6 axis robot designed to provide maximum performance and reliability for welding and cutting applications. The 100iC protects the weld torch cable, gas lines, air lines, and the wire feeder motor cable by routing them inside the robot arm. This improves reliability and reduces setup time, prevents cable interference, and allows offline program generation without compromising the cable integrity.

Robot Specifications:
Axes: 6
Payload: 10.00kg
H-Reach: 1420.00mm
Repeatability: ±0.0800mm
Robot Mass: 130.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed:
J1 210 °/s (3.67 rad/s)
J2 190 °/s (3.32 rad/s)
J3 210 °/s (3.67 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 600 °/s (10.47 rad/s)

Robot Motion Range:
J1 ±360°
J2 ±250°
J3 ±447°
J4 ±380°
J5 +380° - 280°
J6 +720° - 540°

Robot Applications:
Arc Welding Robots
Laser Welding Robots
MAG Welding Robots
MIG Welding Robots
Orbital Welding Robots
Oxyacetylene Welding Robots
Plasma Cutting Robots
Plasma Welding Robots
Submerged Arc Welding Robots
TIG Welding Robots

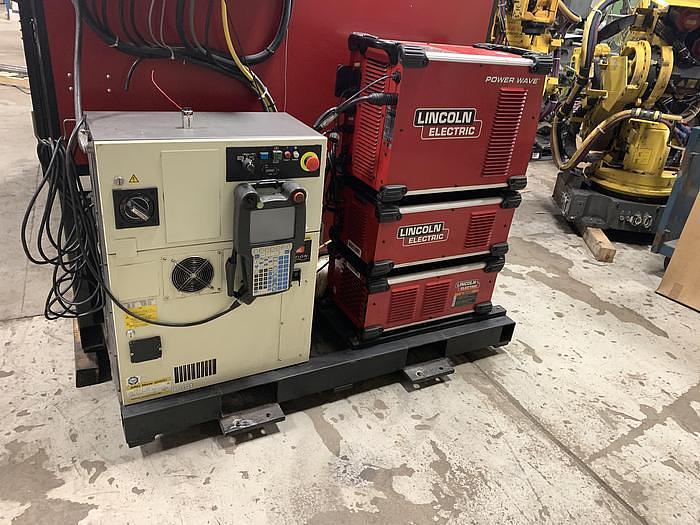

This Cell is equipped with:

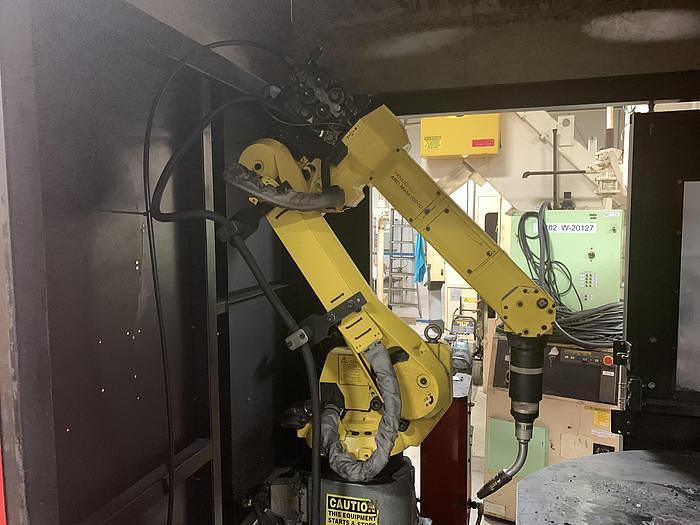

Fanuc Arcmate 100iC Robot

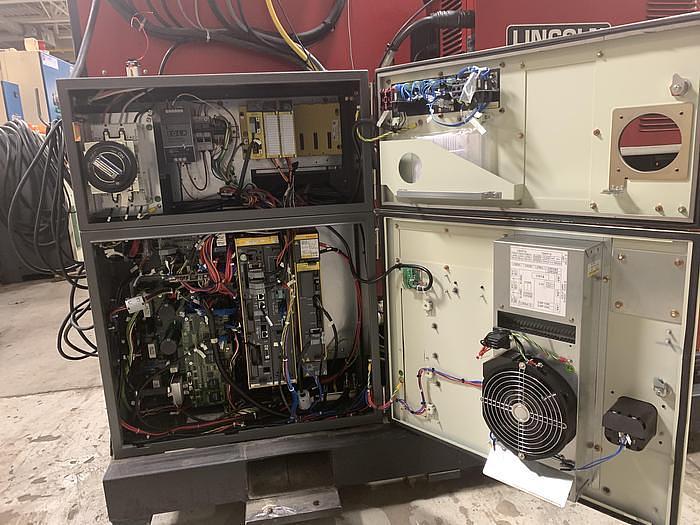

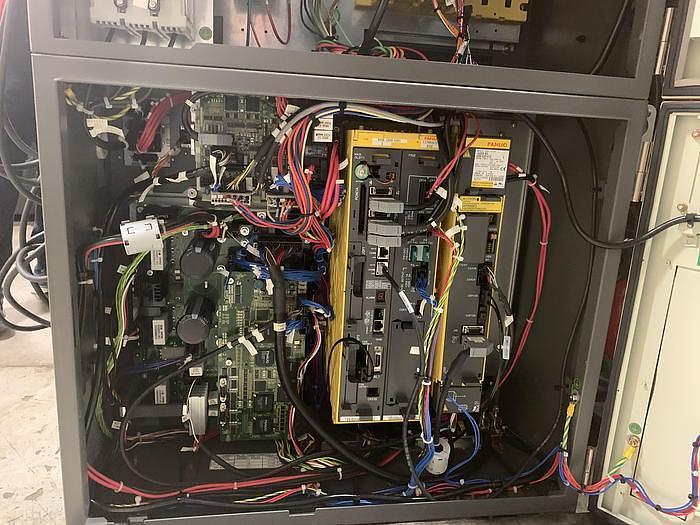

Fanuc R30iB controller

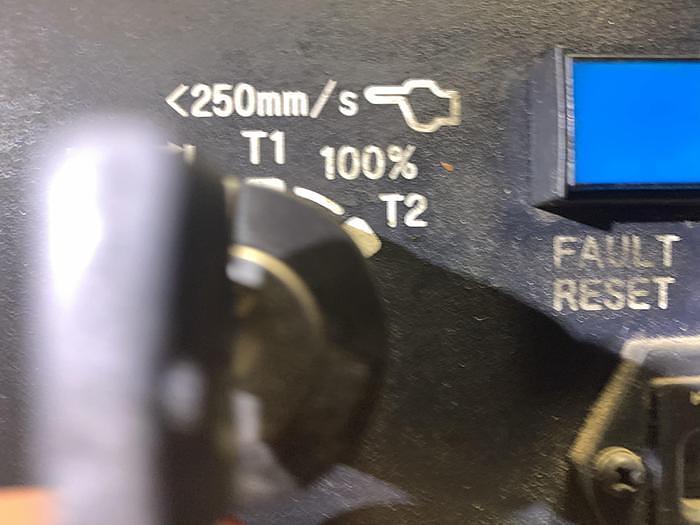

Color I pendant teach pendant

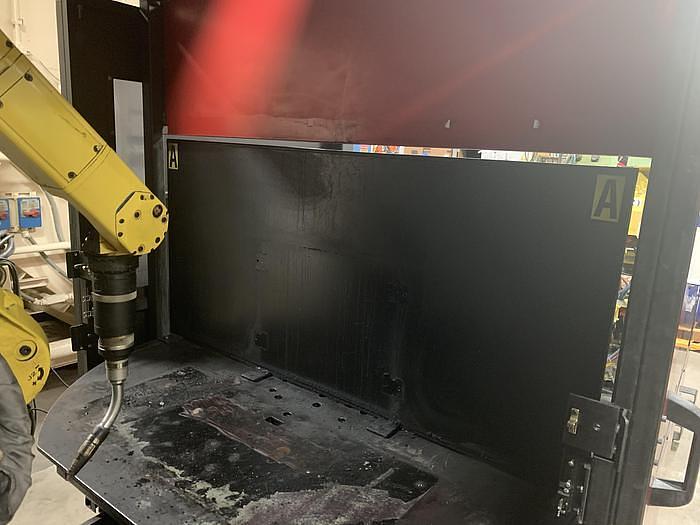

58" Diameter A/B sided index Table

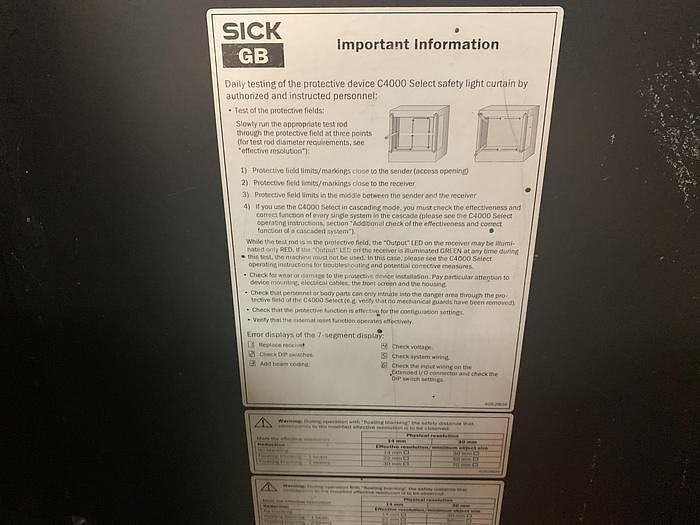

Light Curtains
Welding Torch
Wire Feeder

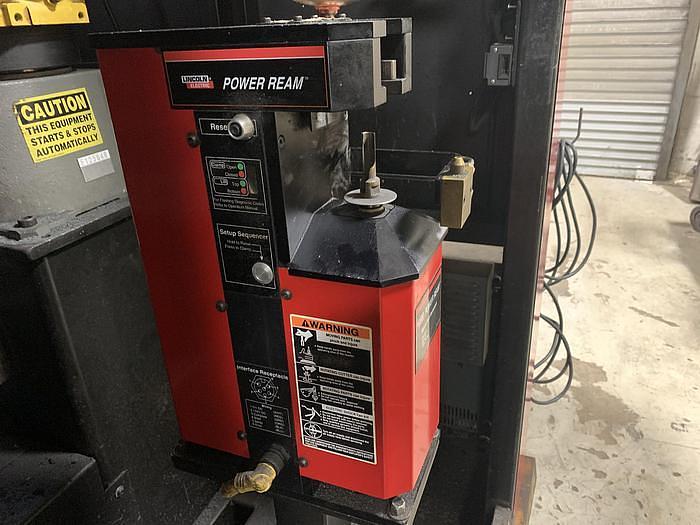

Torch Tip Reemer

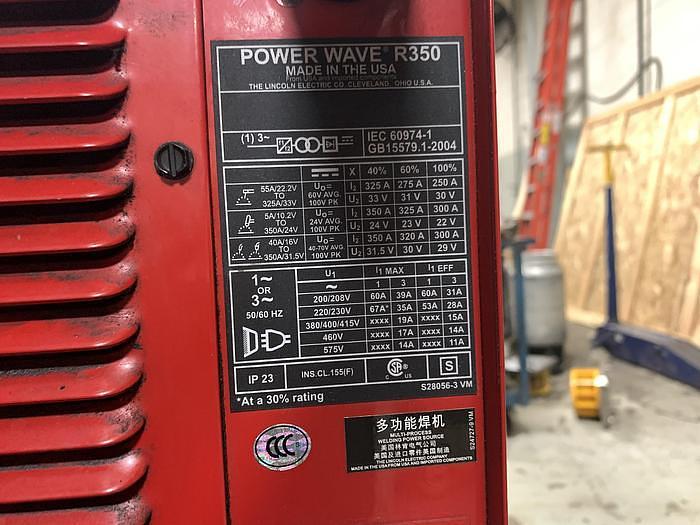

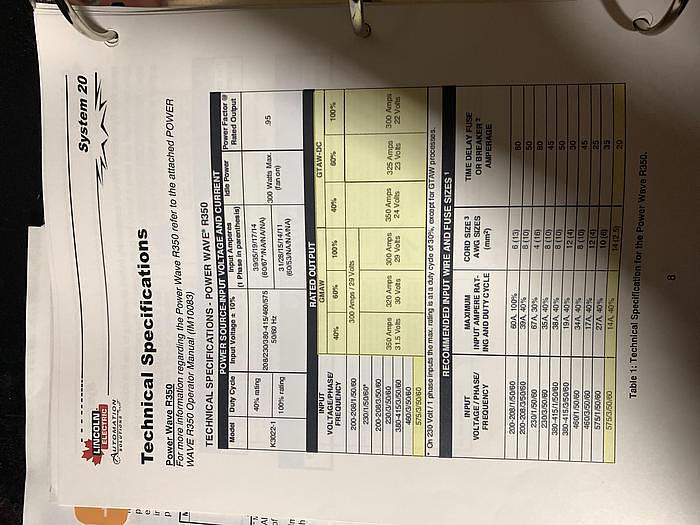

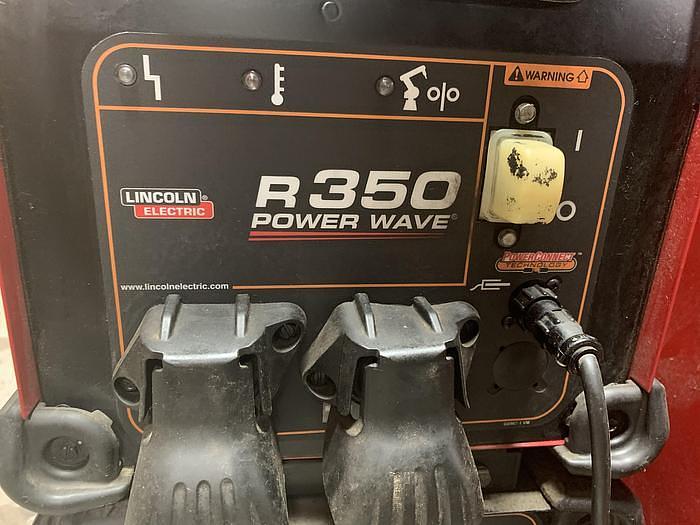

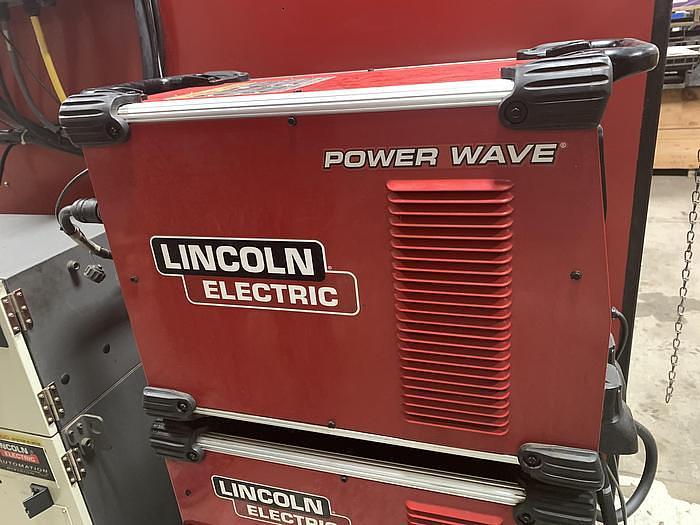

Lincoln power wave R350 welding power supply

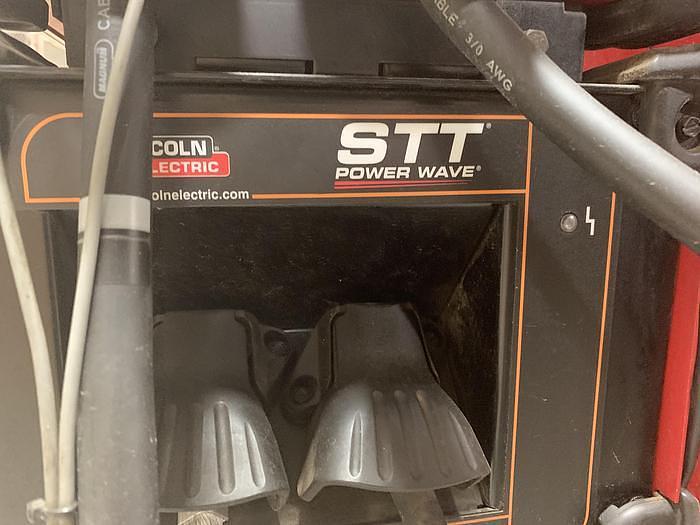

Lincoln STT Module
Lincoln Water Cooler
All cables

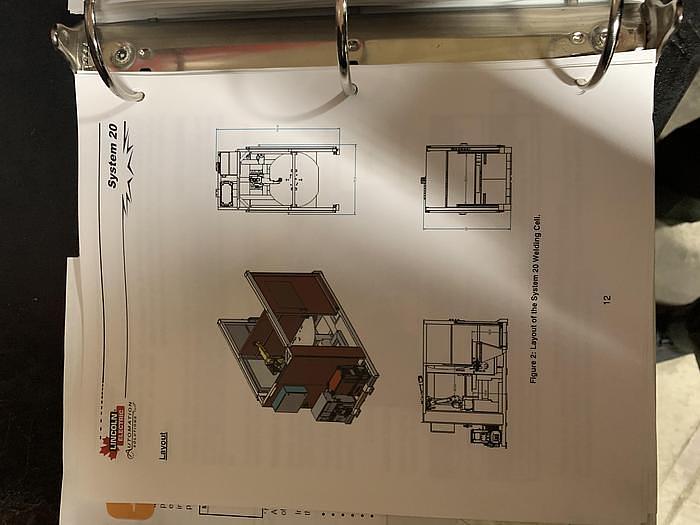

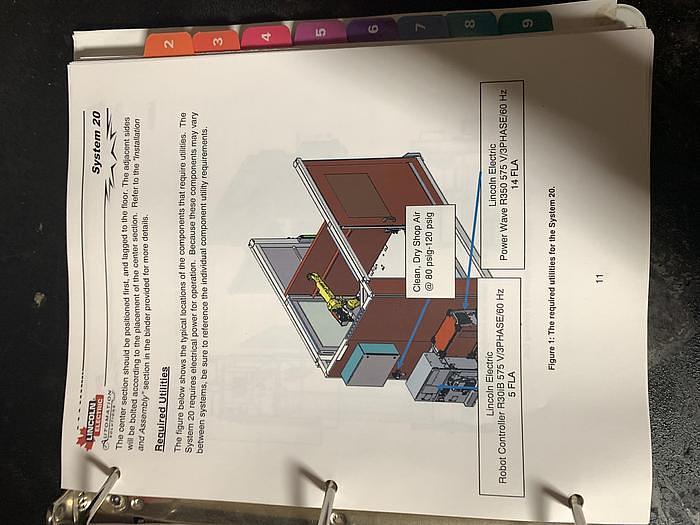

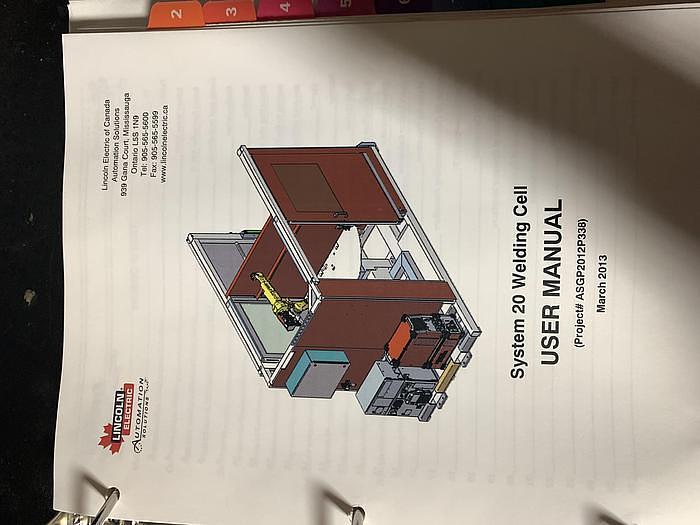

Assorted books and literature

Specifications

ManufacturerLINCOLN ELECTRIC
ModelSYSTEM 20 MIG WELDING CELL WITH FANUC ARCMATE 100IC ROBOT AND R30iB CONTROLLER
Year2012
ConditionUsed
Stock Number103912
